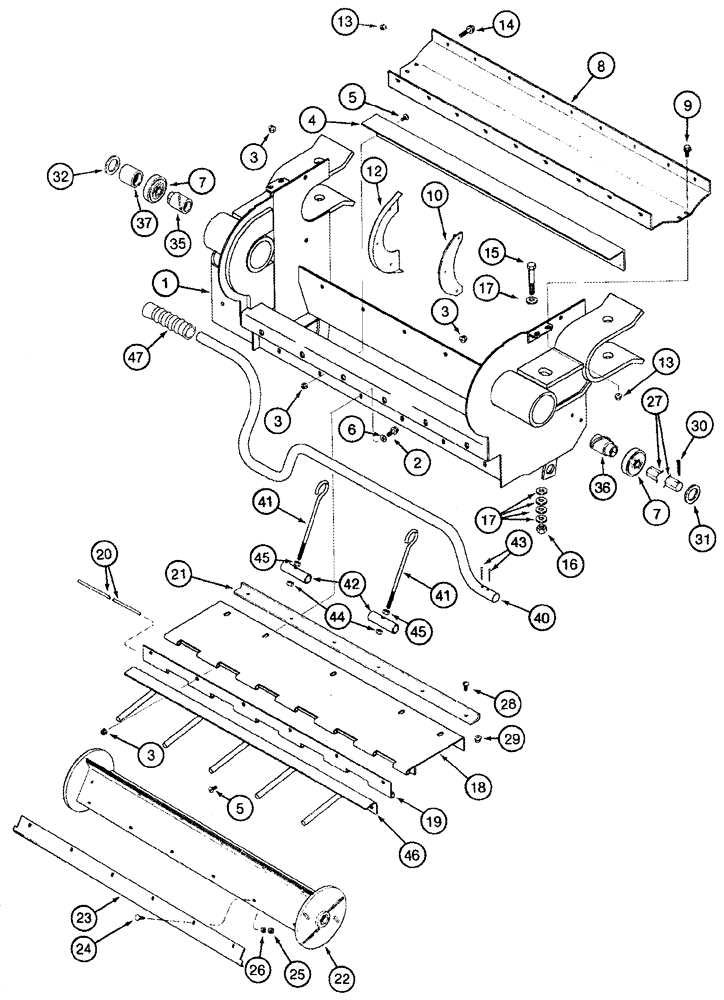

Запчасти Case IH 2388 (09A-23) - ROCK TRAP BSN JJC0268799 (13) - FEEDER

242226A3

STONE TRAP

Rock Trap, Includes 1 - 47, Serial Range: -JJC0268222

1шт.

242226A4

STONE TRAP

Rock Trap, Includes 1 - 47, Start Serial: JJC0268223

1шт.

1

241637A3

HOUSING

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

28шт.

4

1320278C1

BRACKET

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

16шт.

6

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

8шт.

7

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

2шт.

8

1327926C4

COVER

1шт.

9

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

10

1320254C1

PLATE

Two Stud

2шт.

12

195202C1

SEAL

2шт.

13

231-5146

FLANGE NUT,3/8"-16

10шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

15

326-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

2шт.

16

232-41316

NUT,1"-8, GC

2шт.

17

495-11106

WASHER,1", SAE

10шт.

241643A1

TRAP DOOR

Includes 18 - 20, Serial Range: -JJC0268222

1шт.

241643A2

TRAP DOOR

Includes 18 - 20, Start Serial: JJC0268223

1шт.

18

NSS

NOT SOLD SEPARAT

Door

1шт.

19

243445A1

HINGE

1шт.

20

1320120C1

ROD

1шт.

21

1324881C1

ANGLE

1шт.

22

1319832C2

DRUM

1шт.

23

1324437C1

EXTENSION

Smooth

3шт.

23a

1320922C2

BLADE

Not Illustrated

1шт.

24

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

18шт.

25

425-106

NUT,3/8"-16, Cl 5

15шт.

26

492-11038

LOCK WASHER,3/8"

18шт.

27

1320129C2

SHAFT

1шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

29

231-5146

FLANGE NUT,3/8"-16

5шт.

30

432-2040

COTTER PIN,5/16" x 2 1/2"

2шт.

31

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

1шт.

32

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

1шт.

35

1320268C1

SPACER

LH

1шт.

36

1320269C1

SPACER

RH

1шт.

37

162172C1

SPACER

1-13/16" x 2-1/4" x 1-15/16"

1шт.

40

241654A1

STEM

Door Latch

1шт.

41

131950A1

STEM

2шт.

42

131964A1

TUBE,19.05 mm ID, 25.4 mm OD, 90 mm Length

Pivot

2шт.

43

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

44

231-4146

NUT,3/8"-16, GB

2шт.

45

425-106

NUT,3/8"-16, Cl 5

2шт.

46

1320776C1

SUPPORT

1шт.

47

283483A1

GRIP

1шт.
