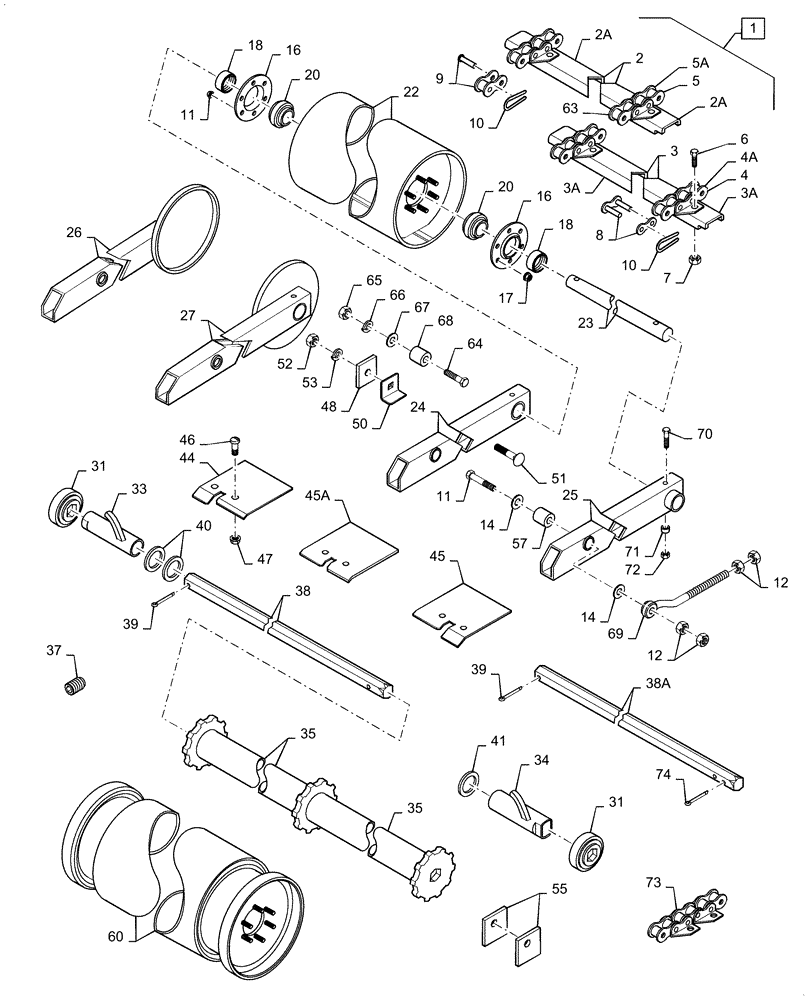

Запчасти Case IH 2388 (09A-22) - FEEDER - CONVEYOR - 3 STRAND CONVEYOR CHAIN (13) - FEEDER

1

195664A1

CHAIN

Smooth Slats, Includes 2, 3 (11 ea), 4 (2), 5, 8

1шт.

Corn and Grain Combine

1шт.

With 54-1/2" Feeder

1шт.

1

195668A1

CHAIN,Feeder, 75 Links x 41.4mm = 3105mm

Smooth Slats, Includes 2, 3 (12 ea), 4 (2), 5, 8

1шт.

Corn and Grain Combine

1шт.

With 60" Feeder

1шт.

1

195666A1

CONVEYOR ASSY.

Serrated Slats, 11, Serial Range: -JJC0270499

1шт.

With 54-1/2" Feeder

1шт.

Corn, Grain and Rice Combine

1шт.

1

84207190

CHAIN,Feeder, 69 Links x 41.4mm = 2857.5mm

Serrated Slats, Includes 2A, 3A (11 ea), 4 (2), 5, 8, Start Serial: JJC0270500

1шт.

With 54-1/2" Feeder

1шт.

Corn, Grain and Rice Combine

1шт.

1

195670A2

KIT

Serrated Slats, Includes 2A, 3A (12 ea), 4A (2), 5A, 8

1шт.

With 60" Feeder

1шт.

Corn, Grain and Rice Combine

1шт.

2

196357A1

SLAT

Package, Smooth, RH, Includes (1) Slat & 6, 7 (4 ea)

1шт.

With 60" Feeder

1шт.

With 54-1/2" Feeder

1шт.

2a

196359A2

SLAT

Package, Serrated, RH, Includes (1) Slat & 6, 7 (4 ea)

1шт.

With 60" Feeder

1шт.

With 54-1/2" Feeder

1шт.

3

196358A1

SLAT

Package, Smooth, LH, Includes (1) Slat & 6, 7 (4 ea)

1шт.

With 60" Feeder

1шт.

With 54-1/2" Feeder

1шт.

3a

196360A3

SLAT

Package, Serrated, LH, Includes (1) Slat & 6, 7 (4 ea)

1шт.

With 60" Feeder

1шт.

With 54-1/2" Feeder

1шт.

4

1989520C1

CHAIN,A557, 69 Links x 41.4mm = 2856.6mm

End

2шт.

With 54-1/2" Feeder

1шт.

4a

118661A1

CHAIN,A557, 75 Links x 41.4mm = 3105mm

A557, End

2шт.

With 60" Feeder

1шт.

5

1989519C1

CHAIN,A557, 69 Links x 41.4mm = 2856.6mm

Center

1шт.

With 54-1/2" Feeder

1шт.

5a

1989529C1

CHAIN,A557, 75 Links x 41.4mm = 3105mm

Center

1шт.

With 60" Feeder

1шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

7

1306680C1

FLANGE NUT

3/8"

1шт.

8

1324294C1

LINK,40.893mm Pitch

A557, Connecting

3шт.

9

1324835C1

OFFSET LINK

A557, Offset

1шт.

10

1329837C2

PIN,2.63mm OD

2шт.

11

187218C2

BOLT

5/8" x 4-1/2"

2шт.

12

425-1010

NUT,5/8"-11, G5

4шт.

14

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

6шт.

16

1330461C1

FLANGED BEARING

4шт.

17

1306680C1

FLANGE NUT

3/8"

12шт.

18

557995R11

COLLAR

2шт.

20

619737R91

BEARING ASSY,31.76mm ID x 62mm OD x 18mm W

2шт.

22

1957438C1

DRUM

1шт.

23

187208C2

ROD

1шт.

24

1338287C3

ARM

LH

1шт.

Used with Smooth Slats

1шт.

With or Without Stone Retarder

1шт.

25

1338288C3

ARM

RH

1шт.

Used with Smooth Slats

1шт.

With or Without Stone Retarder

1шт.

26

1319875C5

ARM

LH

1шт.

With or Without Stone Retarder

1шт.

Used with Serrated Slats

1шт.

27

1319876C5

ARM

RH

1шт.

With or Without Stone Retarder

1шт.

Used with Serrated Slats

1шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

2шт.

33

178780C3

SPACER

LH

1шт.

34

178781C3

SPACER

RH

1шт.

35

1989587C2

SPROCKET

1шт.

37

197643C1

SET SCREW

4шт.

38

1321440C4

SHAFT

, Serial Range: -JJC0268799

1шт.

38a

389071A1

SHAFT

1756 mm (69-1/8"), Start Serial: JJC0268800

1шт.

39

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

Used with 1321440C4, 389071A1

1-2шт.

39

402485A1

PIN,9.53mm OD x 61mm L

1шт.

40

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

1шт.

41

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

1шт.

197161A2

PACKAGE

Consists of 44 - 46, 47

1шт.

44

1989592C1

SUPPORT

LH

1шт.

45

1989593C1

SUPPORT

RH

1шт.

45a

1989395C1

SUPPORT

Center

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

47

231-5146

FLANGE NUT,3/8"-16

6шт.

48

187347C1

PLATE

2шт.

Without Stone Retarder

1шт.

50

1345418C2

BRACKET

2шт.

51

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

2шт.

52

425-1010

NUT,5/8"-11, G5

2шт.

53

492-11062

BEARING WASHER,5/8"

2шт.

55

187225C1

BAR

2шт.

With Stone Retarder

1шт.

57

187217C1

SPACER,7/8" Tube x 1 13/16"

2шт.

60

196409A2

DRUM,273.1mm OD x 1057mm L

1шт.

With Stone Retarder

1шт.

63

1989692C1

LINK,A557, 3 Links

Attaching

1шт.

64

189709C1

BOLT,Hex, 1/2" - 13 x 3"

2шт.

65

425-108

NUT,1/2" - 13, Gr 5

2шт.

66

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

67

495-81162

WASHER,17/32" x 1 1/2" x .179"

2шт.

68

197211C1

SPACER

2шт.

69

176508C1

BOLT,5/8" - 11 x 228.60mm

2шт.

70

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

2шт.

71

314148R1

SPACER,10.7mm ID x 17.14mm OD x 11.9mm L

2шт.

72

231-1446

NUT,3/8" - 16, Gr 5

2шт.

73

305191A1

CHAIN,A557, 5 Links x mm = mm

Center Three Strand Feeder Chain, Service Repair Only

1шт.

73

1989692C1

LINK,A557, 3 Links

Outer Three Strand Feeder Chain, Service Repair Only

1шт.

74

402485A1

PIN,9.53mm OD x 61mm L

, Start Serial: JJC0268800

1шт.
