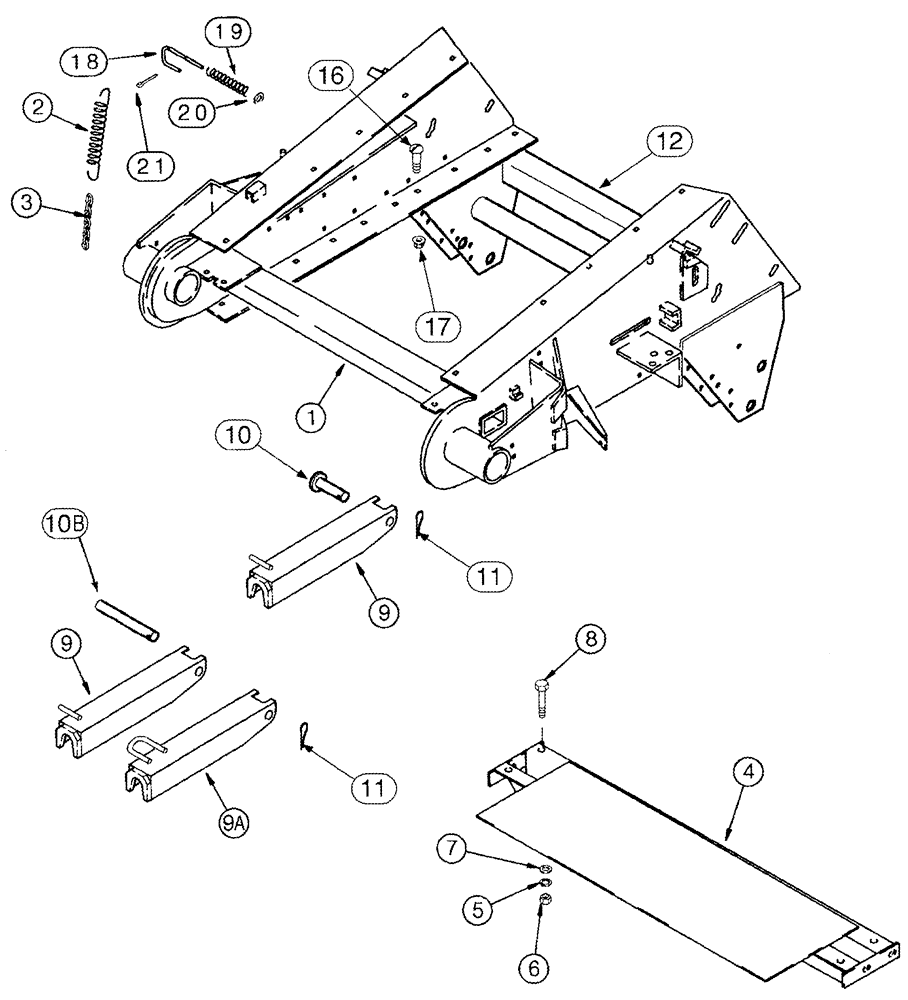

Запчасти Case IH 2388 (09A-20) - FEEDER - SUPPORTS AND LIFT BRACKET (13) - FEEDER

1

REF

INSTRUCTION

HOUSING, See Figure(s) 09A-18

1шт.

2

635503R1

SPRING,148.8mm Free Length

2шт.

3

167570C1

CHAIN,203.2mm L

2шт.

4

252123A1

SUPPORT

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

4шт.

7

495-81030

WASHER,21/32" x 2" x .179"

4шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

243060A2

TUBE

1шт.

9a

243060A3

STAND

12 Row Ready

1шт.

10

439-52092

HEADED PIN,1 1/4" x 5 3/4"

2шт.

10a

242303A1

PIN

1-1/4" x 6-1/2", Not Illustrated

2шт.

10b

403002A1

PIN

1-1/4" x 10-1/4", 12 Row Ready

1шт.

11

432-1632

COTTER PIN,1/4" x 2"

2-4шт.

12

REF

INSTRUCTION

HOUSING, See Figure(s) 09A-18, Ref. 5

1шт.

16

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

8шт.

17

231-5146

FLANGE NUT,3/8"-16

8шт.

18

243058A3

PIN,9.53mm OD

1шт.

19

M296

SPRING

1шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.
