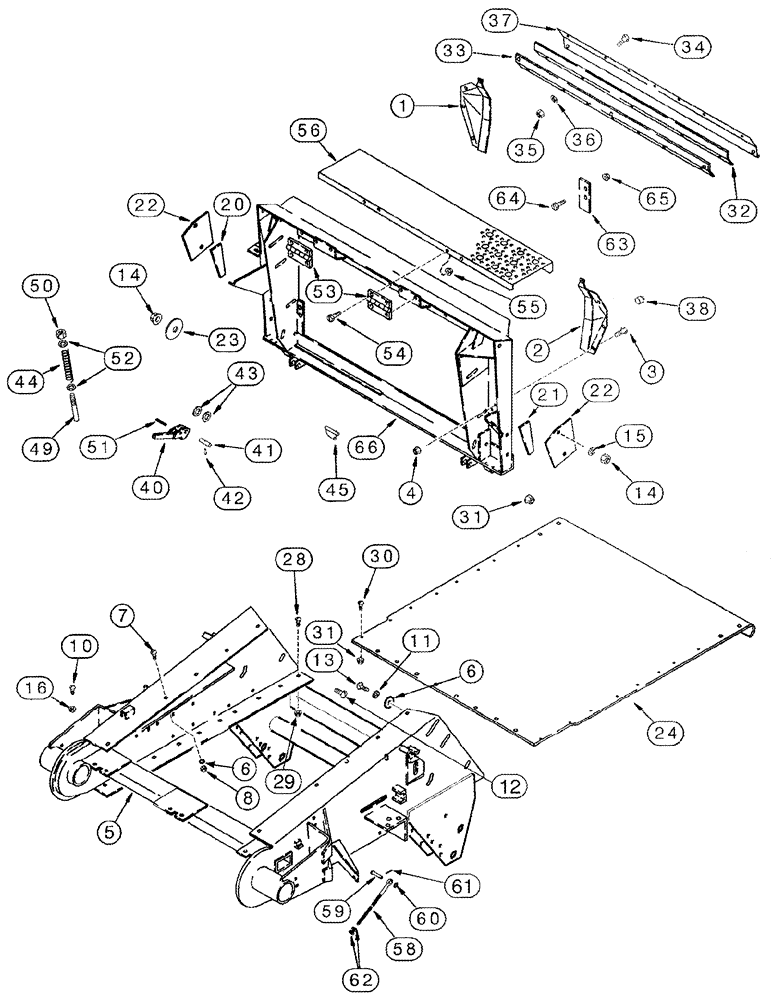

Запчасти Case IH 2388 (09A-18) - FEEDER - HOUSING AND ADAPTER BSN JJC0268799 (13) - FEEDER

1

184853C1

DEFLECTOR

LH Front

1шт.

2

184854C1

DEFLECTOR

RH Front

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

5

239802A2

HOUSING

Includes Decals, See Figure 09H-23, Ref. 4, Ref. 9

1шт.

With 54-1/2" Feeder

1шт.

See Figure 09H-03/09H-04 For Securing Block And Pin

1шт.

5

239803A2

HOUSING

Includes Decals, See Figure 09H-23, Ref. 4, Ref. 9

1шт.

With 60" Feeder

1шт.

See Figure 09H-03/09H-04 For Securing Block And Pin

1шт.

6

495-81030

WASHER,21/32" x 2" x .179"

4шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

10

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

11

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

6шт.

12

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

2шт.

13

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

4шт.

14

231-14410

NUT,5/8"-11, GB

3шт.

15

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

16

231-5146

FLANGE NUT,3/8"-16

3шт.

20

1327752C1

FOAM INSULATION

Side, LH

1шт.

21

1327753C1

FOAM INSULATION

Side, RH

1шт.

22

1327737C2

PLATE

Side

2шт.

23

95-81018

WASHER,0.66" ID x 2.5" OD x 0.12" Thk

2шт.

24

1324572C2

PANEL

Lower

1шт.

With 54-1/2" Feeder

1шт.

24

1345455C1

PANEL

Lower, Perforated

1шт.

With 54-1/2" Feeder

1шт.

24

1324574C2

PANEL

Lower

1шт.

With 60" Feeder

1шт.

24

118846A1

BOTTOM

Lower, Perforated

1шт.

With 60" Feeder

1шт.

28

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

4шт.

29

329-288

FLANGE NUT,Flg, 1/2"-13, G8

Replaces 186852C1

4шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

6-8шт.

31

329-286

FLANGE NUT,Flg, 3/8"-16, G8

6-8шт.

32

109254A1

PLATE

1шт.

33

1319473C1

COVER

Upper

1шт.

34

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

35

232-4115

LOCK NUT,5/16"-18, GC

5шт.

35

231-5345

FLANGE NUT,Flg, 5/16"-18

7шт.

36

495-21038

WASHER,5/16"

5шт.

36

495-81001

WASHER,5/16"

7шт.

37

1319475C1

COVER

Adapter

1шт.

38

1321640C1

GROMMET

Cover

2шт.

40

179024C1

HINGE

2шт.

41

177141C1

PIN,15.88mm OD x 41mm L

2шт.

42

138-2005

PIN,1/4" x 1", Coiled

2шт.

43

495-81175

WASHER,21/32" x 1" x .120"

4шт.

44

367833R1

SPRING

2шт.

45

1338021C1

PIN,7.94mm OD

2шт.

49

177138C1

ROD

2шт.

50

231-1445

NUT,5/16"-18, GB

2шт.

51

38-1816

LOCK PIN,1/8" x 1", Slotted

2шт.

52

495-11034

WASHER,5/16", SAE

4шт.

53

140767A2

HINGE

2шт.

54

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

55

231-5146

FLANGE NUT,3/8"-16

8шт.

56

140768A4

STEP

1шт.

58

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

2шт.

59

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

2шт.

60

495-11053

WASHER,1/2", SAE

2шт.

61

432-1216

COTTER PIN,3/16" x 1"

2шт.

62

329-108

NUT,1/2"-13, G8

4шт.

63

181646C1

SUPPORT

2шт.

64

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

4шт.

65

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

66

140764A4

ADAPTER

Feeder

1шт.

67

126046A1

GASKET,287.02mm L

292 mm (11-1/2"), Cut from 196707C1, Not Illustrated

2шт.
