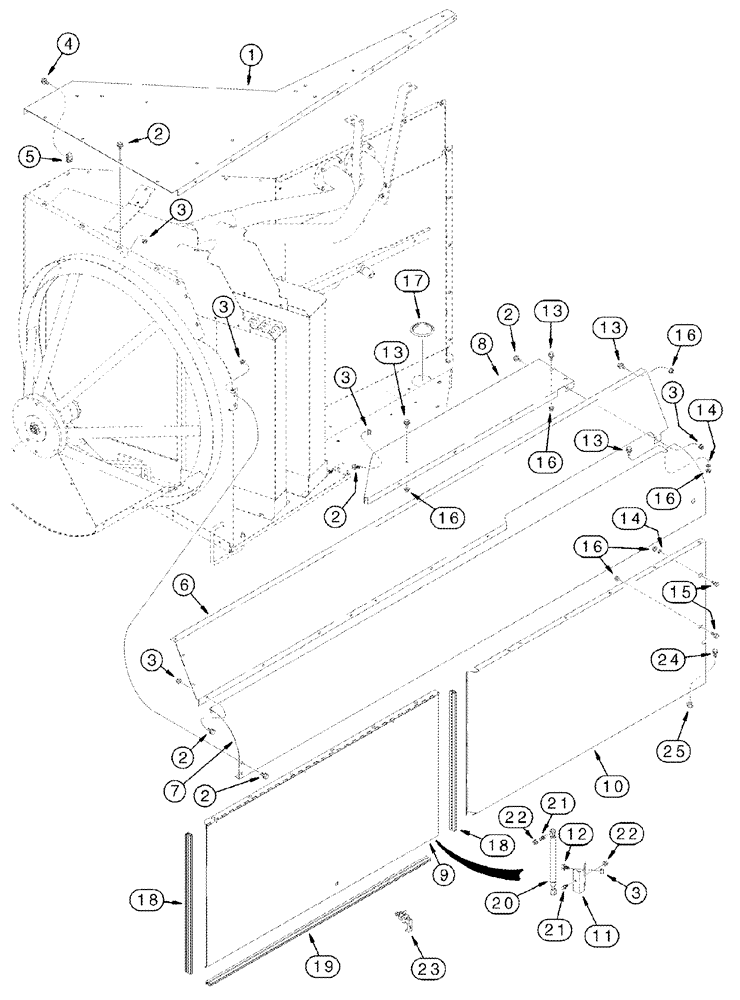

Запчасти Case IH 2388 (02-13) - ROTARY AIR SCREEN CHUTE - RIGHT HAND SIDE - BSN JJC0267149 (01) - ENGINE

1

283481A1

COVER

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

50шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

51шт.

4

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

12шт.

5

488837C1

SPRING NUT

5/16"

9шт.

6

276784A3

PANEL

Upper RH

1шт.

7

193628A3

SHEET

Upper RH, Rear, Curved

1шт.

8

276779A1

CHANNEL

1шт.

9

193644A3

TRAP DOOR

Radiator Access

1шт.

10

276778A2

SHEET

1шт.

11

276788A2

SUPPORT

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

14

495-81024

WASHER,17/32" x 1 1/4" x .060"

3шт.

15

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

3шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

17

1302758C1

PLUG

Clean Out Hole, 89 mm OD

1шт.

18

1347460C1

DOOR SEAL,648mm L

648 mm (25-1/8"), Radiator Door, Side

2шт.

19

242347A2

SEAL,1174mm L

Radiator Door, Lower

1шт.

20

229626A1

CYLINDER

Lift, 19 ID x 200 mm strk

1шт.

21

1340345C1

BALL STUD

BALL PIN

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

23

1302494C2

LATCH

1шт.

24

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

9шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.
