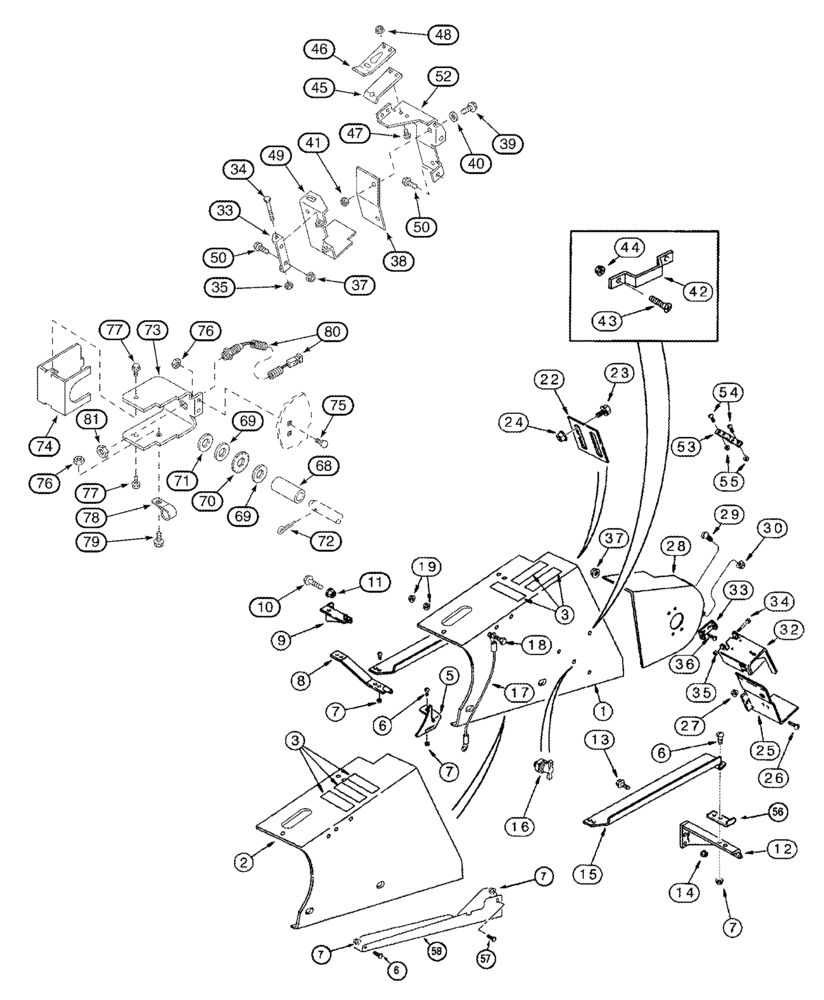

Запчасти Case IH 2388 (09A-17) - FEEDER - SHIELDS, JACKSHAFT DRIVE ASN JJC0268800 (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
390383A1
SHIELD
Rear, Includes 3, Includes Decal, See Figure 9H-23, Ref. 4
1шт.
With 60" Feeder
1шт.
2
390390A1
SHIELD
Rear, Includes 3, Includes Decal, See Figure 9H-23, Ref. 4
1шт.
With 54-1/2" Feeder
1шт.
3
D55216
PAD,2" x 9"
2 x 9"
3шт.
4
138627A1
COVER
Australia Only, Not Illustrated
1шт.
5
186675A2
GUARD
1шт.
6
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
1шт.
6
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
7
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
8
1321851C2
SUPPORT
Lower Rear
1шт.
9
1327779C1
SUPPORT
Upper Rear
1шт.
10
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
2шт.
11
231-5146
FLANGE NUT,3/8"-16
2шт.
12
1321878C2
SUPPORT
Lower Front
1шт.
13
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
2шт.
14
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
15
139079A2
SUPPORT
Rear
1шт.
16
138699A1
LOCK
1шт.
17
132657A2
CABLE
1шт.
18
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
20
138629A1
COVER
LH, Australia Only, Not Illustrated
1шт.
21
138179A3
LATCH
Australia Only, Not Illustrated
2шт.
22
139108A1
PLATE
1шт.
23
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
6шт.
24
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
6шт.
25
129902A2
GUARD
RH Rear
1шт.
26
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
2шт.
27
231-5146
FLANGE NUT,3/8"-16
2шт.
28
129707A4
SHIELD
Front
1шт.
29
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
2шт.
30
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
32
129715A2
GUARD
RH Front
1шт.
33
1345199C2
SUPPORT
2шт.
34
413-472
BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5
2шт.
35
231-4144
NUT,1/4"-20, GB
2шт.
36
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
6шт.
37
231-5146
FLANGE NUT,3/8"-16
2шт.
38
406610A1
SHIELD
1шт.
39
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
2шт.
40
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
2шт.
41
231-4116
NUT,3/8"-16, GB
2шт.
42
160638C2
HANDLE
1шт.
43
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
2шт.
44
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
45
407153A1
GUIDE
1шт.
46
138179A3
LATCH
1шт.
47
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
2шт.
48
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
49
406609A1
SHIELD
LH Rear
1шт.
50
409-7612
BOLT,3/8"-16 x 1.09" OAL
6шт.
52
406608A1
SHIELD
LH Front
1шт.
53
1321880C1
SUPPORT
Front
1шт.
54
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
6шт.
55
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
6шт.
56
235885A1
SUPPORT
1шт.
57
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
2шт.
58
235873A1
SHIELD
Lower
1шт.
With 54-1/2" Feeder
1шт.
58
235874A1
SHIELD
Lower
1шт.
With 60" Feeder
1шт.
59
240438A2
PLASTIC-RUBBER TUBE,60.3 mm OD
Not Illustrated, See Figure 09A-13
1шт.
63
495-21044
WASHER,3/8"
Australia Only, Not Illustrated
2шт.
64
231-4116
NUT,3/8"-16, GB
Australia Only, Not Illustrated
2шт.
65
138180A1
COVER
Australia Only, Not Illustrated
1шт.
66
248406A1
GUARD
Rubber, Not Illustrated
1шт.
67
252441A1
SEAL RETAINER
Not Illustrated
1шт.
68
584608R1
SPACER
86 mm (3-3/8")
1шт.
69
495-81093
WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk
7шт.
70
390532A1
PLATE
Transducer, 20T
1шт.
Without Rock Trap
1шт.
71
495-81093
WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk
1шт.
72
432-2440
COTTER PIN,3/8" x 2 1/2"
1шт.
73
392857A2
BRACKET
1шт.
Without Rock Trap
1шт.
74
392858A2
SHIELD
1шт.
Without Rock Trap
1шт.
75
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
2шт.
76
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
78
515-2395
CLAMP,3/8", Insul, 3/8" Bolt
1шт.
79
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
2шт.
80
NSS
NOT SOLD SEPARAT
Sensor, Feeder Speed, See Figure 04-01
1шт.
81
425-1512
JAM NUT,Jam, 3/4"-10, G5
1шт.
