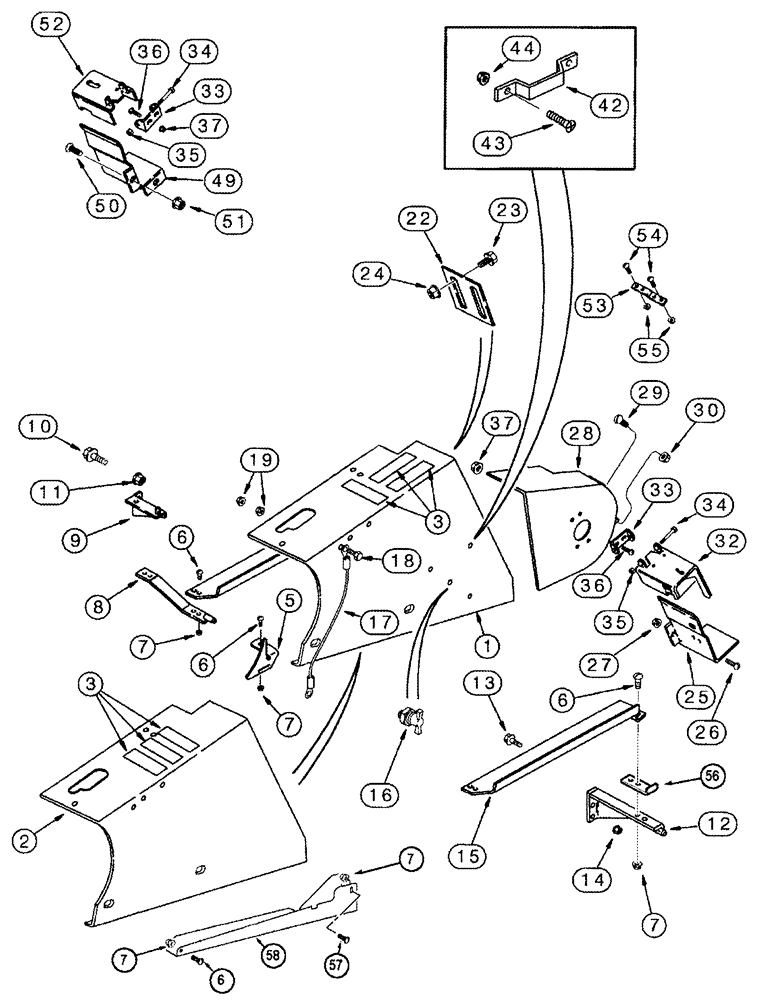

Запчасти Case IH 2388 (09A-16) - FEEDER - SHIELDS, JACKSHAFT DRIVE BSN JJC0268799 (13) - FEEDER

1

235863A2

GUARD

Rear, Includes 3, Includes Decal, See Figure 09H-23, Ref. 4

1шт.

With 60" Feeder

1шт.

2

235862A2

GUARD

Rear, Includes 3, Includes Decal, See Figure 09H-23, Ref. 4

1шт.

With 54-1/2" Feeder

1шт.

3

D55216

PAD,2" x 9"

2 x 9"

3шт.

4

138627A1

COVER

Australia Only, Not Illustrated

1шт.

5

186675A2

GUARD

1шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

6a

203942C1

SPRING

Not Illustrated

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

8

1321851C2

SUPPORT

Lower Rear

1шт.

9

1327780C1

SUPPORT

Upper Rear

1шт.

10

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

1321878C2

SUPPORT

Lower Front

1шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

15

139079A2

SUPPORT

Rear, If Used

1шт.

16

138699A1

LOCK

1шт.

17

132657A2

CABLE

1шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

20

138629A1

COVER

LH, Australia Only, Not Illustrated

1шт.

21

138179A3

LATCH

Australia Only, Not Illustrated

2шт.

22

139108A1

PLATE

1шт.

23

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

25

129902A2

GUARD

RH Rear

1шт.

26

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

129707A4

SHIELD

Front

1шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

32

129715A2

GUARD

RH Front

1шт.

33

1345199C2

SUPPORT

2шт.

34

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

2шт.

35

231-4144

NUT,1/4"-20, GB

2шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

37

231-5146

FLANGE NUT,3/8"-16

4шт.

42

160638C2

HANDLE

60" Feeder

1шт.

43

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

49

129903A2

GUARD

LH Rear

1шт.

50

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

51

231-5146

FLANGE NUT,3/8"-16

2шт.

52

129717A2

GUARD

LH Front

1шт.

53

1321880C1

SUPPORT

Front

1шт.

54

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

56

235885A1

SUPPORT

1шт.

57

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

58

235873A1

SHIELD

Lower

1шт.

With 54-1/2" Feeder

1шт.

58

235874A1

SHIELD

Lower

1шт.

With 60" Feeder

1шт.

59

240437A3

PLASTIC-RUBBER TUBE,60.3 mm OD

Not Illustrated

1шт.

60

240436A2

SUPPORT

Not Illustrated

2шт.

61

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

No. 8-18 x 1, Not Illustrated

2шт.

62

409-7612

BOLT,3/8"-16 x 1.09" OAL

Not Illustrated

2шт.

63

495-21044

WASHER,3/8"

Australia Only, Not Illustrated

2шт.

64

231-4116

NUT,3/8"-16, GB

Australia Only, Not Illustrated

2шт.

65

138180A1

COVER

Australia Only, Not Illustrated

1шт.

66

248406A1

GUARD

Rubber, Not Illustrated

1шт.

67

252441A1

SEAL RETAINER

Not Illustrated

1шт.
