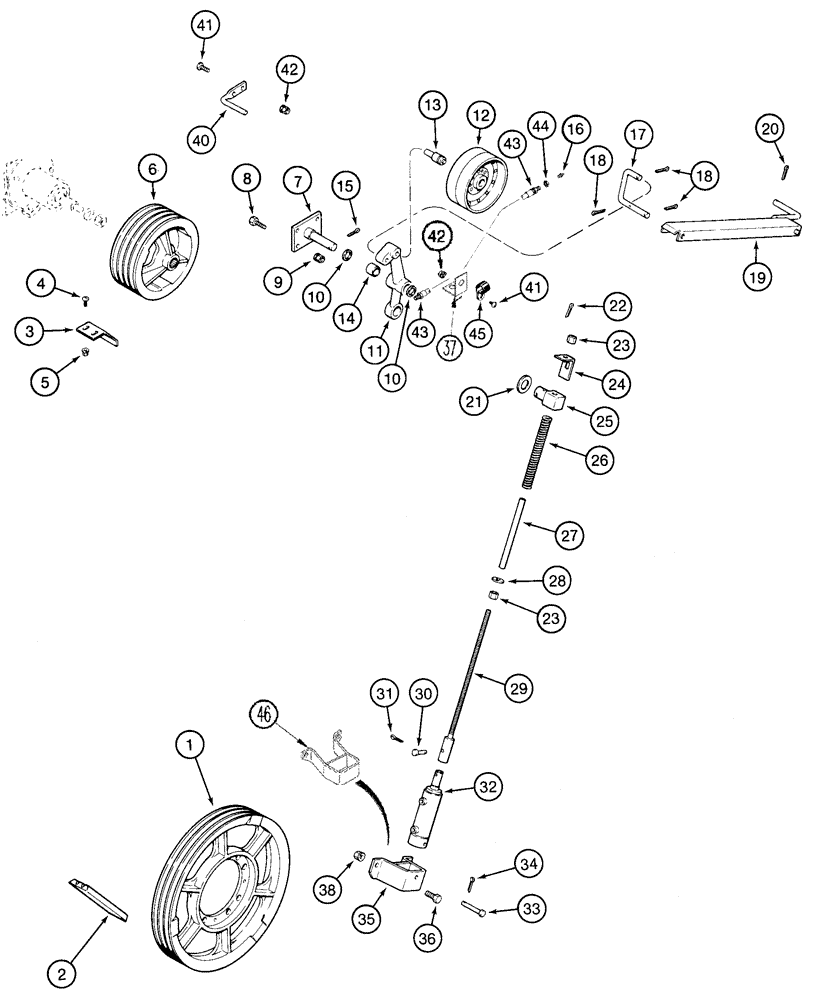

Запчасти Case IH 2388 (09A-10) - FEEDER - DRIVE (13) - FEEDER

1

1305297C1

PULLEY

22-9/16" OD, Driven, Serial Range: -JJC0268799

1шт.

1

396781A1

PULLEY,573mm OD

22-9/16" OD, Driven, Start Serial: JJC0268800

1шт.

2

194528C1

BELT,0.879" W x 143.37" L, 3 Ribs

Over center, Serial Range: -JJC0270499

1шт.

Without Rock Trap

1шт.

2

194528C2

BELT,22.225 mm W x 3641.50 mm L, 3, Ribs

Over center, Start Serial: JJC0270500

1шт.

Without Rock Trap

1шт.

2

1315074C1

V-BELT,22.23 mm W x 4029.32 mm L

, Serial Range: -JJC0270499

1шт.

With Rock Trap

1шт.

2

1315074C2

V-BELT,22.23 mm W x 4029.32 mm L

, Start Serial: JJC0270500

1шт.

With Rock Trap

1шт.

3

186513C1

SUPPORT

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

6

193999C1

PULLEY

12" OD, Drive, Serial Range: -JJC0268799

1шт.

6

193999C2

PULLEY

12" OD, Drive, Serial Range: JJC0270499-JJC0268800

1шт.

6

193999C3

PULLEY

12" OD, Drive, Start Serial: JJC0270500

1шт.

7

185414C2

SUPPORT

1шт.

8

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.

9

231-5146

FLANGE NUT,3/8"-16

4шт.

10

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

6шт.

194494C93

ARM

Includes 11 -14

1шт.

11

NSS

NOT SOLD SEPARAT

Lever

1шт.

12

174757C1

PULLEY

8" OD, Idler

1шт.

13

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

1шт.

14

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

1" x 1-1/4" x 1-1/8"

2шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

17

116032A1

HOOK

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

3шт.

19

116029A1

HOLDER

Without Rock Trap

1шт.

19

116030A1

HOLDER

With Rock Trap

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

1шт.

22

432-1240

COTTER PIN,3/16" x 2 1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

, Serial Range: -JJC0272999

2шт.

23

425-1010

NUT,5/8"-11, G5

, Start Serial: JJC0273000

2шт.

24

182922A1

SUPPORT

, Serial Range: -JJC0270499

1шт.

24

413065A1

CLIP

1/2", Serial Range: JJC0270500-JJC0272999

1шт.

24

450553A2

CLIP

5/8", Start Serial: JJC0273000

1шт.

25

186890C4

PIVOT

1/2", Serial Range: -JJC0272999

1шт.

25

450554A1

PIVOT

5/8", Start Serial: JJC0273000

1шт.

26

PO23

SPRING

, Serial Range: -JJC0270499

1шт.

26

409501A1

SPRING

1/2", Serial Range: JJC0270500-JJC0272999

1шт.

26

450555A1

SPRING

5/8", Start Serial: JJC0273000

1шт.

27

182921A1

SPACER

, Serial Range: -JJC0270499

1шт.

27

413066A1

SPACER

1/2", Serial Range: JJC0270500-JJC0272999

1шт.

27

450551A1

SPACER

5/8", Start Serial: JJC0273000

1шт.

28

495-81163

WASHER,17/32" x 1 1/2" x .120"

, Serial Range: -JJC0272999

1шт.

28

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

, Start Serial: JJC0273000

2шт.

29

194216C3

ROD

1/2", Serial Range: -JJC0272999

1шт.

29

450556A1

ROD

5/8", Start Serial: JJC0273000

1шт.

30

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

1шт.

31

432-612

COTTER PIN,3/32" x 3/4"

1шт.

32

133405C92

CYLINDER

Fan Engage, 51 ID x 63 mm strk, See Figure 08-34

1шт.

32

87337239R

REMAN-HYD CYLINDER

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540, Fan Engage, 51 ID x 63 mm strk (1/98-8/04), Reman for New PN 133405C92

1шт.

32

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

33

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

1шт.

34

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

35

194369C2

SUPPORT

, Serial Range: -JJC0270499

1шт.

36

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

37

419744A1

BRACKET

Hose

1шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

40

188316C1

ROD

1шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2-3шт.

41

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

42

231-5146

FLANGE NUT,3/8"-16

3-4шт.

43

937781R92

HOSE,3.02mm ID x 686mm L

1шт.

44

F53473

LOCK NUT,1/8-27 NPSM

1/8" PT

1шт.

45

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

46

417407A1

SUPPORT

, Start Serial: JJC0270500

1шт.
