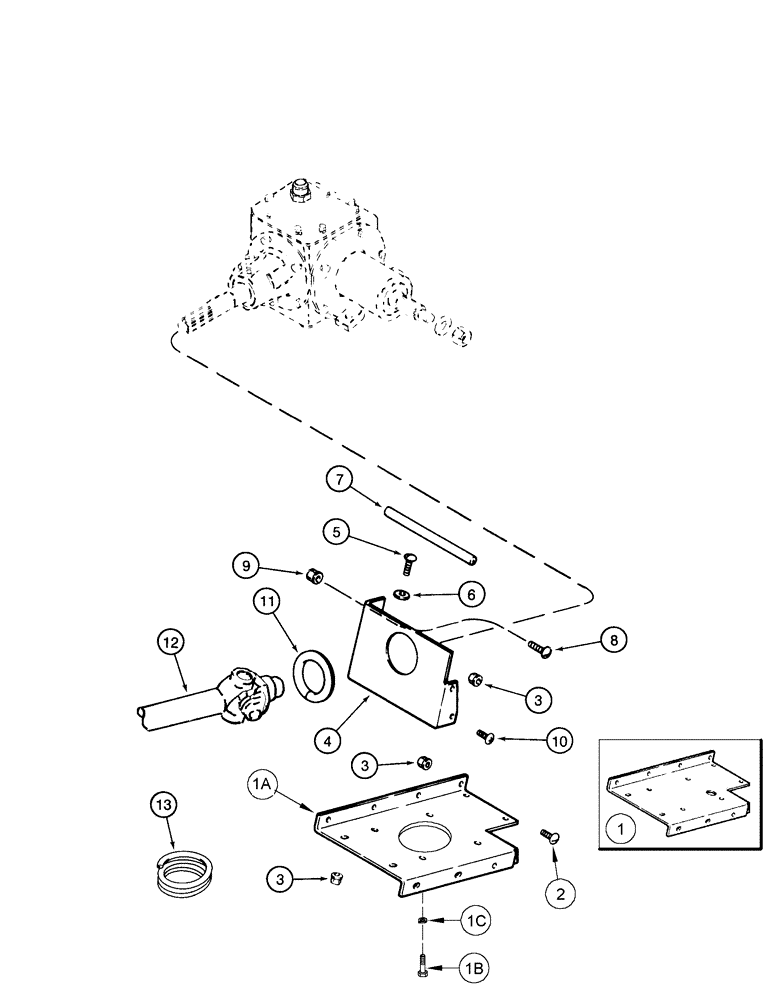

Запчасти Case IH 2388 (09A-09) - FEEDER - MOUNTING, DRIVE AND FAN GEAR (13) - FEEDER

1

191329C2

SUPPORT

, Serial Range: -JJC0268799

1шт.

1a

378152A1

SUPPORT

, Start Serial: JJC0268800

1шт.

1b

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

1c

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

5шт.

3

231-5146

FLANGE NUT,3/8"-16

7шт.

4

191399C2

SUPPORT

Rear

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

JJC0268800 to

2шт.

5

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

, Serial Range: -JJC0268799

2шт.

6

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

, Serial Range: -JJC0268799

4шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

JJC0268800 to

4шт.

7

191497C1

SEALING STRIP

270 mm (10-5/8")

1шт.

8

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

, Serial Range: -JJC0268799

2шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

JJC0268800 to

2шт.

9

231-5146

FLANGE NUT,3/8"-16

7шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

5шт.

11

191496C1

SEALING STRIP

300 mm (11-7/8")

1шт.

12

191596C91

DRIVE SHAFT

See Figure 09A-03, Serial Range: -JJC0270499

1шт.

12

410487A1

DRIVE SHAFT

See Figure 09A-03, Serial Range: JJC0270500-JJC0272999

1шт.

12

443298A1

DRIVE SHAFT

See Figure 09A-03, Start Serial: JJC0273000

1шт.

13

191498C1

SEALING STRIP

528 mm (20-13/16")

1шт.
