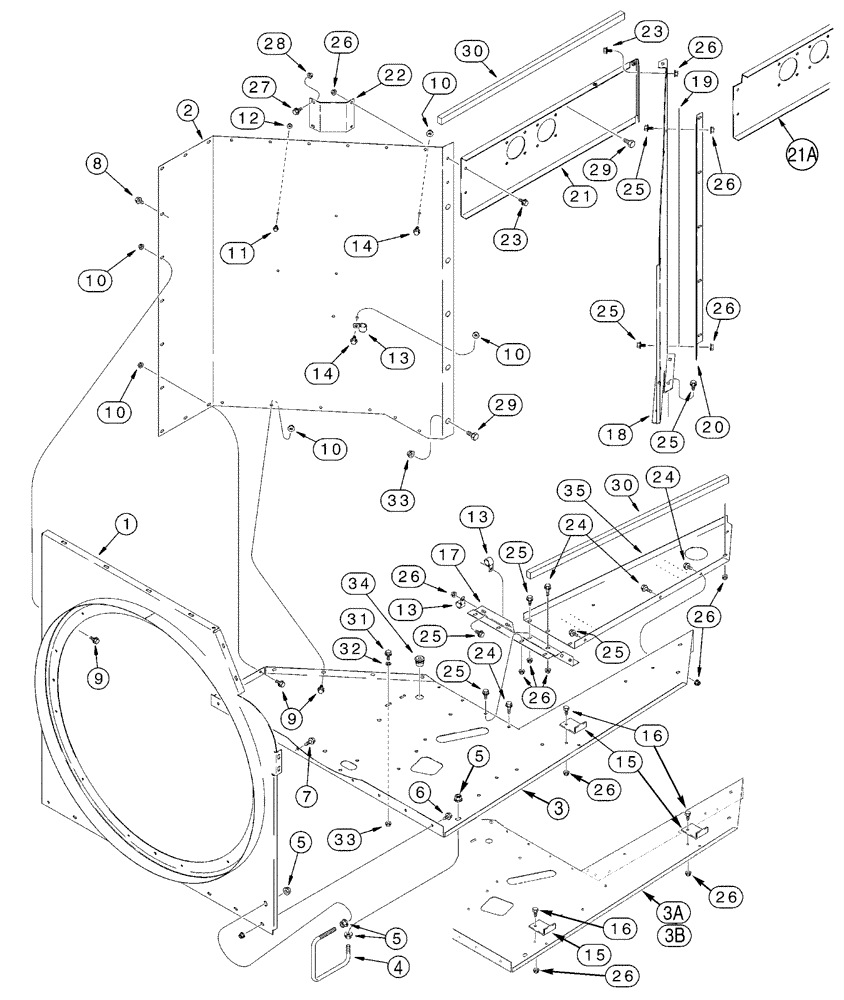

Запчасти Case IH 2388 (02-12) - ROTARY AIR SCREEN CHUTE - LEFT HAND SIDE - BSN JJC0273000 (01) - ENGINE

1

229584A2

ADAPTER

Rear Chute, Serial Range: -JJC0270499

1шт.

1

392777A1

SUPPORT

Rear Chute, Plastic, Start Serial: JJC0270500

1шт.

2

282612A2

SHEET

LH

1шт.

3

282610A4

SUPPORT

Bottom, Rear, Also Order 277806A3, See Figure 02-06, REF 23, Serial Range: -JJC0267149

1шт.

3a

373370A1

SUPPORT

Bottom, Rear, Inc. Two Latch Brackets, Serial Range: JJC0267150-JJC0268799

1шт.

3a

402204A1

SUPPORT

Bottom, Rear, Inc. Two Latch Brackets, Serial Range: JJC0270499-JJC0268800

1шт.

3b

428659A1

SUPPORT

Bottom, Rear, Inc. Two Latch Brackets, Start Serial: JJC0270500

1шт.

4

1979918C1

HANDLE

1шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

7

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

8

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

1шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

11

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

4шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

13

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

14

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

15

220733A1

SUPPORT

Latch

1-2шт.

16

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

2-4шт.

17

282608A1

SHEET

Bottom, Inner Rear

1шт.

18

276776A1

SHEET

Air Chute, Front

1шт.

19

231965A1

SEAL

960 mm (37-3/4"), Cut from 195917C1

1шт.

20

276777A2

ANGLE

1шт.

21

276780A3

SHEET

Radiator, Upper, Used with 283481A1 (Ref. 1, 02-13); 365109A1 (Ref. 1, 02-14)

1шт.

21a

276780A4

SHEET

Radiator, Upper, Used with Ref. 26 - 28 (02-14)

1шт.

22

282603A1

SUPPORT

, Serial Range: -JJC0268799

1шт.

22

282603A2

SUPPORT

, Start Serial: JJC0268800

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

25

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

21шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

30шт.

27

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

29

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

8шт.

30

220743A1

SEAL

RUBBER SEAL 865 mm (34 in), Cut from F43996

2шт.

31

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

32

495-81024

WASHER,17/32" x 1 1/4" x .060"

7шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

34

195803C1

GROMMET

, Serial Range: -JJC0268799

1шт.

35

276786A1

TROUGH

1шт.
