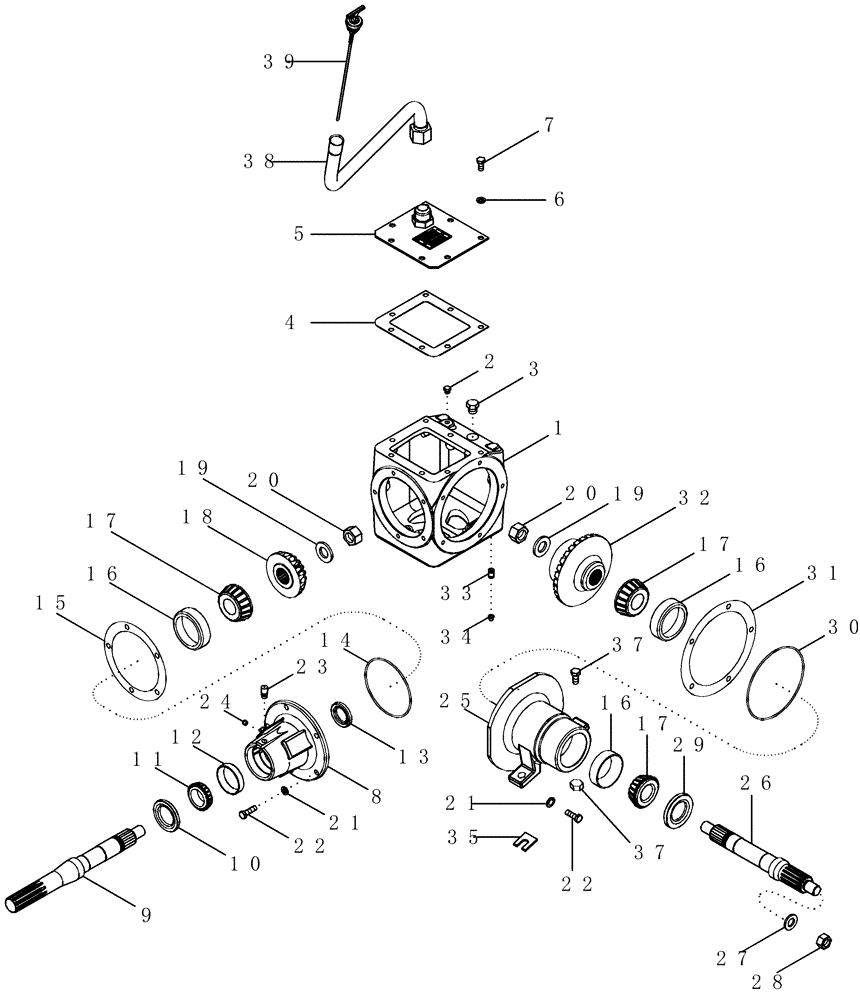

Запчасти Case IH 2388 (09A-07[02]) - FEEDER - HOUSING, DRIVE AND FAN GEAR - ASN JJC0268800 (13) - FEEDER

400244A1

GEARBOX

Housing Forward Gearcase, Includes 1 - 37

1шт.

84225968R

REMAN-GEARBOX

Housing Forward Gearcase, Includes 1 - 37. 2366, 2388

1шт.

84225968C

CORE-GEARBOX

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Case, Feeder Drive Gear

1шт.

2

86568834

PLUG,1/4" - 18 NPT

1шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

1 in ORB

1шт.

4

191397C2

GASKET

1шт.

5

391647A1

PLATE

1шт.

6

492-11038

LOCK WASHER,3/8"

7шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

8

191245C2

HUB

Housing, Forward Drive Bell, Rear

1шт.

9

191396C1

SHAFT

Input

1шт.

10

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

Oil

1шт.

11

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

12

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

13

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

Oil

1шт.

14

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

195484C2

SHIM KIT

Shim, Includes 15

1шт.

15

NSS

NOT SOLD SEPARAT

Shim, Rear Bell, .127 mm

1шт.

15

NSS

NOT SOLD SEPARAT

Shim, Rear Bell, .1778 mm

1шт.

15

NSS

NOT SOLD SEPARAT

Shim, Rear Bell, .508 mm

1шт.

16

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

3шт.

17

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

3шт.

1315597C1

GEAR SET

Includes 18, 32

1шт.

18

NSS

NOT SOLD SEPARAT

Gear, Driver, 18T

1шт.

19

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

20

185413C1

LOCK NUT

Lock

2шт.

21

492-11038

LOCK WASHER,3/8"

10шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

23

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

25

191248C1

HUB

Housing, Foward Drive Bell, RH

1шт.

26

191384C2

SHAFT

Driven, Output

1шт.

27

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

28

232-46314

LOCK NUT,7/8"-14, GC

1шт.

29

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

Oil

1шт.

30

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

195485C1

SHIM KIT

Shim, Includes 31

1шт.

31

NSS

NOT SOLD SEPARAT

Shim, RH Bell, .127 mm

1шт.

31

NSS

NOT SOLD SEPARAT

Shim, RH Bell, .1778 mm

1шт.

31

NSS

NOT SOLD SEPARAT

Shim, RH Bell, .508 mm

1шт.

32

NSS

NOT SOLD SEPARAT

Gear, Driven, 31T

1шт.

33

509962

HYD CONNECTOR

1шт.

34

221-1524

CAP,3/8" NPT

1шт.

35

935915R1

SHIM,33.02mm OD x 0.38mm Thk

.015"

1шт.

36

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

38

122113A1

TUBE

1шт.

39

336513A1

DIPSTICK

1шт.
