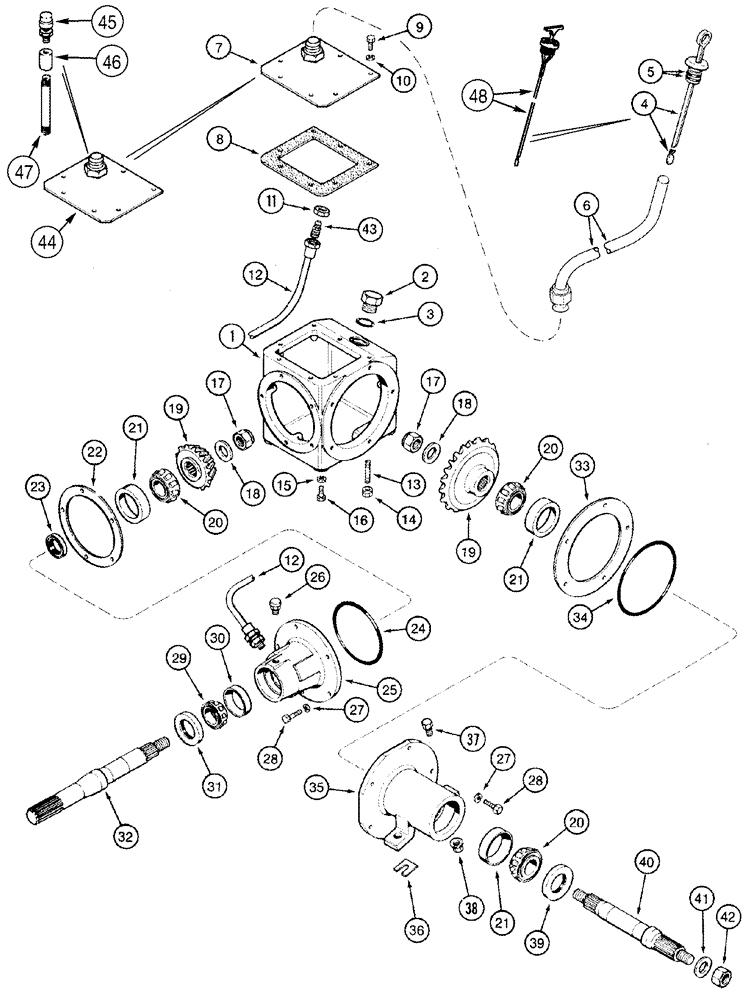

Запчасти Case IH 2388 (09A-07[01]) - FEEDER - HOUSING, DRIVE AND FAN GEAR BSN JJC0268799 (13) - FEEDER

349262A1

GEARBOX

Forward Gearcase, Includes 1 - 3, 8 - 10, 14, 20 - 32, 39 - 47

1шт.

For Service Refer to Gearbox 400244A1, See Figure 09A-07 (02)

1шт.

1

191388C1

CASE

1шт.

2

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

122115A3

GAUGE

Vented, Includes 5

1шт.

Used with 122111A1, Ref. 7

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

6

122113A1

TUBE

1шт.

7

122111A1

COVER

Without Hole, No Longer Used, For Service Order 122111A2, Ref. 44

1шт.

8

191397C2

GASKET

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

10

492-11038

LOCK WASHER,3/8"

7шт.

11

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

12

1339006C1

TUBE,914 mm L

914 mm (36")

1шт.

13

188126

PIPE,Nipple, 3/8" NPT x 2"

1шт.

14

221-1524

CAP,3/8" NPT

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

16

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

17

195428C1

LOCK NUT

2шт.

18

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

19

1315597C1

GEAR SET

18/31T

1шт.

20

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

1-3/8" ID

3шт.

21

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

3" OD

3шт.

195484C2

SHIM KIT

Includes 22

1шт.

22

NSS

NOT SOLD SEPARAT

Shim .005

4шт.

22

NSS

NOT SOLD SEPARAT

Shim .007

4шт.

22

NSS

NOT SOLD SEPARAT

Shim .020

2шт.

23

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

1шт.

24

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

25

191245C2

HUB

1шт.

26

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1шт.

27

492-11038

LOCK WASHER,3/8"

10шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

29

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8" ID

1шт.

30

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2" OD

1шт.

31

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

1шт.

32

191396C1

SHAFT

Input

1шт.

195485C1

SHIM KIT

Includes 33

1шт.

33

NSS

NOT SOLD SEPARAT

Shim

2шт.

33

NSS

NOT SOLD SEPARAT

Shim

2шт.

33

NSS

NOT SOLD SEPARAT

Shim

2шт.

34

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

35

191248C1

HUB

1шт.

36

935915R1

SHIM,33.02mm OD x 0.38mm Thk

.015"

8шт.

37

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

39

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

1шт.

40

191384C2

SHAFT

Output

1шт.

41

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

42

231-46114

LOCK NUT,7/8"-14, GB

1шт.

43

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

44

122111A2

PLATE

With Hole

1шт.

45

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1шт.

46

217-95

COUPLING,1/8"-27, Brass

1шт.

47

144587

PIPE,Nipple, 1/8" NPT x 2", Brass

1шт.

48

336513A1

DIPSTICK

Non-Vented

1шт.
