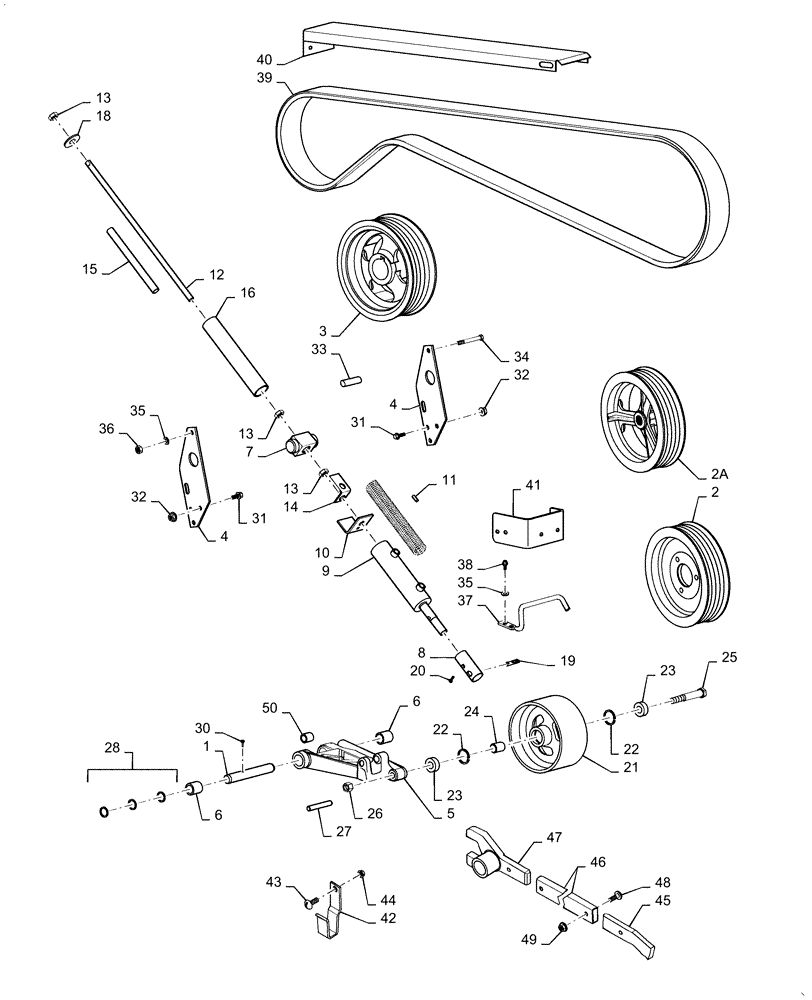

Запчасти Case IH 2388 (09A-05[02]) - SEPARATOR DRIVE PULLEY AND IDLER - ASN JJC0270500 (13) - FEEDER

1

362678A1

PIN,25.38mm OD x 186mm L

Pivot, IdlerArm

1шт.

2

364320A2

PULLEY,384.8mm OD

14-3/4" OD, Separator, Driven

1шт.

2a

371748A2

PULLEY,384.8mm OD

14-3/4" OD, Separator, Driven, Without Straw Chopper

1шт.

3

364019A2

PULLEY,289.6mm OD

Separator Drive, Clutched Belt

1шт.

3a

126-179

WOODRUFF KEY,#V, 1/2" x 2-3/4", HT

Not Illustrated

1шт.

4

125380A1

SUPPORT

Cylinder

2шт.

5

398560A1

ARM

Idler Pulley, Includes 6

1шт.

6

391285A1

BUSHING,25.59mm ID x 31.89mm OD x 38.3mm L

2шт.

7

186747C3

PIVOT

Feeder Drive Assy.

1шт.

8

125381A1

TUBE,25.4 mm ID, 34.92 mm OD

Reel Speed Control

1шт.

9

398539A1

CYLINDER

Separator Clutch, See Figure 08-28

1шт.

10

186749C1

BRACKET

1шт.

11

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1шт.

12

363446A1

ROD

Tension

1шт.

13

425-1010

NUT,5/8"-11, G5

3шт.

14

186748C1

BRACKET

Bracket

1шт.

15

363449A2

TUBE,16.7 mm ID, 22.2 mm OD, 324.1 mm Length

1шт.

16

363447A1

SLEEVE

Spring

1шт.

17

363445A2

SPRING

1шт.

18

495-81030

WASHER,21/32" x 2" x .179"

1шт.

19

427-6178

CLEVIS PIN,9.53mm OD x 45.24mm L

Clevis, 3/8 x 1-23/32

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

1шт.

21

362674A2

PULLEY

Separator Idler

1шт.

22

800-2140

SNAP RING,M40, Int

2шт.

23

414615A1

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

2шт.

24

362676A1

SPACER

1шт.

25

362675A1

BOLT

1шт.

26

125-10012

SPECIAL NUT,5/8"-11, G5, LH

1шт.

27

362679A1

PIN,15.88mm OD x 101.3mm L

1шт.

28

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

3шт.

29

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

30

432-1224

COTTER PIN,3/16" x 1-1/2"

3шт.

31

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

32

231-5146

FLANGE NUT,3/8"-16

6шт.

33

196676C1

SPACER

Hub, Reel Spacer Control

1шт.

34

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

35

492-11038

LOCK WASHER,3/8"

If Used

1шт.

36

231-5146

FLANGE NUT,3/8"-16

1шт.

37

371746A2

ROD

Separator Bolt Clutch

1шт.

38

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

39

400427A1

BELT,3775.29 mm L

1шт.

40

394513A2

CHANNEL

Lower Clutch Belt

1шт.

41

394514A2

BRACKET

Drive Pulley

1шт.

42

1979908C1

CLIP

Rocking Wrench

2шт.

43

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

45

1979751C2

BAR

1шт.

46

1979526C2

HANDLE

1шт.

47

1979527C1

WRENCH-HOOK

1шт.

48

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3шт.

49

231-5146

FLANGE NUT,3/8"-16

3шт.

50

87034740

SPACER,26.64mm ID x 33.40mm OD x 30mm W

1шт.
