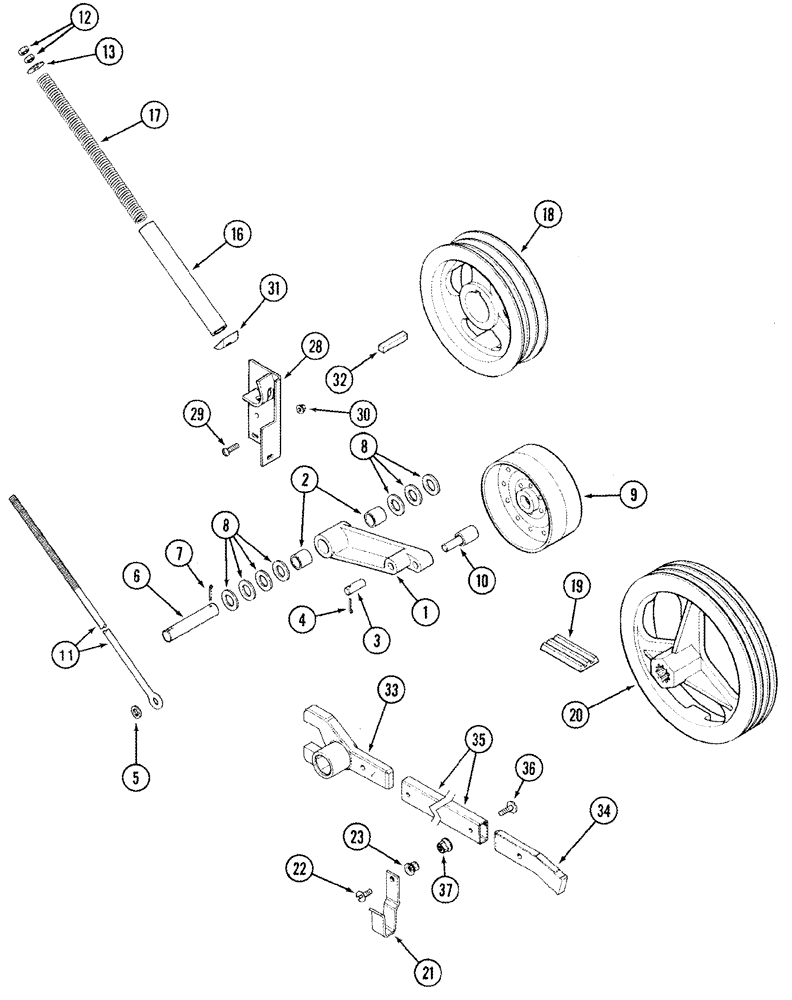

Запчасти Case IH 2388 (09A-05[01]) - SEPARATOR DRIVE PULLEY AND IDLER - BSN JJC0270499 (13) - FEEDER

1

188205C94

LEVER

Includes 2, 3

1шт.

2

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

1" x 1-1/4" x 1-1/8"

2шт.

3

188207C1

PIN

1шт.

4

432-1216

COTTER PIN,3/16" x 1"

1шт.

5

495-81176

WASHER,21/32" x 1" x .060"

1шт.

6

1315229C2

PIN,25.4mm OD x 135mm L

1шт.

7

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

8

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

7шт.

9

174757C1

PULLEY

8" OD, Idler

1шт.

10

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

1шт.

11

191592C1

EYEBOLT,Hex, 1/2" - 13 x 813mm

BOLT, EYE

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

2шт.

13

495-81163

WASHER,17/32" x 1 1/2" x .120"

1шт.

16

1541717C2

TUBE,34.9 mm OD, 238 mm Length

1шт.

17

PO121

SPRING

1шт.

18

1541713C1

PULLEY

11" OD, Separator Drive

1шт.

19

1541702C1

V-BELT,22.33 mm W x 3759.40 mm L

Drive

1шт.

20

191452C2

PULLEY

14-3/4" OD, Driven, Without Straw Chopper

1шт.

20

181271C1

PULLEY

14-3/4" OD, Driven, With Straw Chopper

1шт.

21

1979908C1

CLIP

2шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

28

191799C1

SUPPORT

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3шт.

30

231-5146

FLANGE NUT,3/8"-16

3шт.

31

194652C1

PIVOT

1шт.

32

126-179

WOODRUFF KEY,#V, 1/2" x 2-3/4", HT

1шт.

33

1979527C1

WRENCH-HOOK

1шт.

34

1979751C2

BAR

1шт.

35

1979526C2

HANDLE

1шт.

36

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

2шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.
