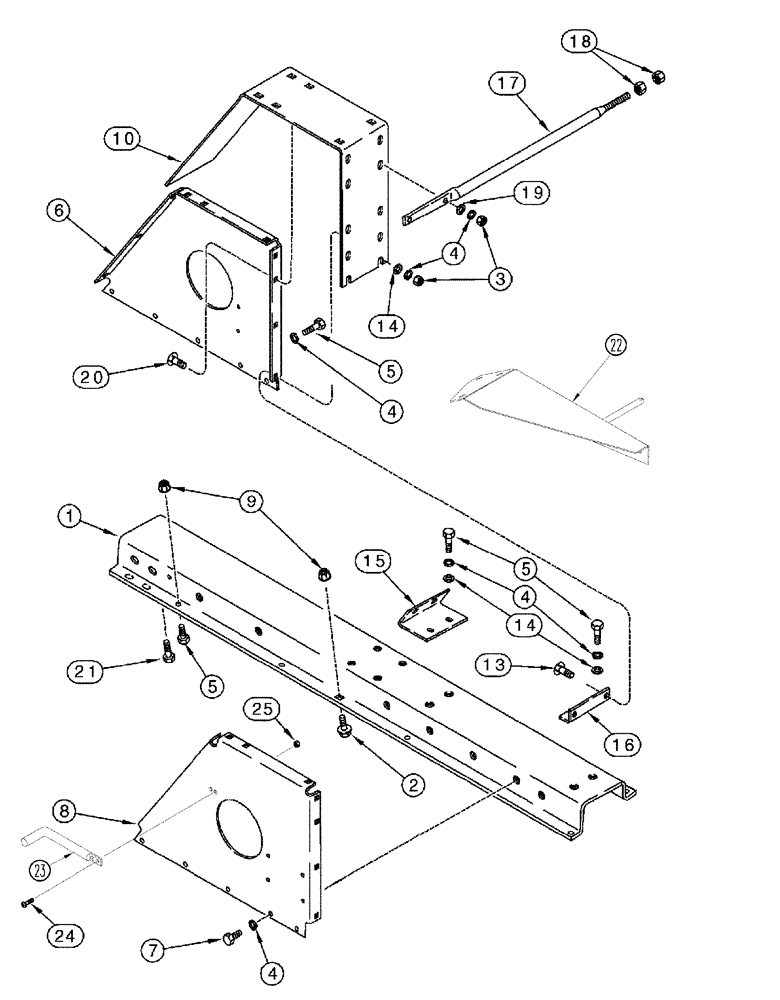

Запчасти Case IH 2388 (09A-04) - SEPARATOR - JACKSHAFT SUPPORT (13) - FEEDER

1

112454A3

SUPPORT

, Serial Range: -JJC0270499

1шт.

1

112454A5

SUPPORT

Jackshaft and Auxiliary Pump, Start Serial: JJC0270500

1шт.

2

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

4шт.

3

425-108

NUT,1/2" - 13, Gr 5

14шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

28шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

6

181175C1

SUPPORT

LH, Serial Range: -JJC0270499

1шт.

6

181175C2

SUPPORT

LH, Start Serial: JJC0270500

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

5шт.

8

181176C1

SUPPORT

RH, Serial Range: -JJC0270499

1шт.

8

181176C2

SUPPORT

RH, Start Serial: JJC0270500

1шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

10

181177C1

SUPPORT

Upper, Serial Range: -JJC0270499

1шт.

10

181177C2

SUPPORT

Upper, Start Serial: JJC0270500

1шт.

13

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

12шт.

14

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

16шт.

15

181178C1

SUPPORT

1шт.

16

181172C1

SUPPORT

Rear

1шт.

17

181171C1

ROD

, Serial Range: -JJC0272999

1шт.

17

443257A1

THREADED ROD

Jackshaft Support, Start Serial: JJC0273000

1шт.

18

425-1110

NUT,5/8"-18, G5

2шт.

19

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

2шт.

20

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

22

398584A1

SUPPORT

Separator Drive Clutched

1шт.

23

194901C1

ROD

Separator Guide

1шт.

24

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.
