Запчасти Case IH 2388 (09A-02) - BELT DRIVE - RIGHT-HAND SIDE (13) - FEEDER

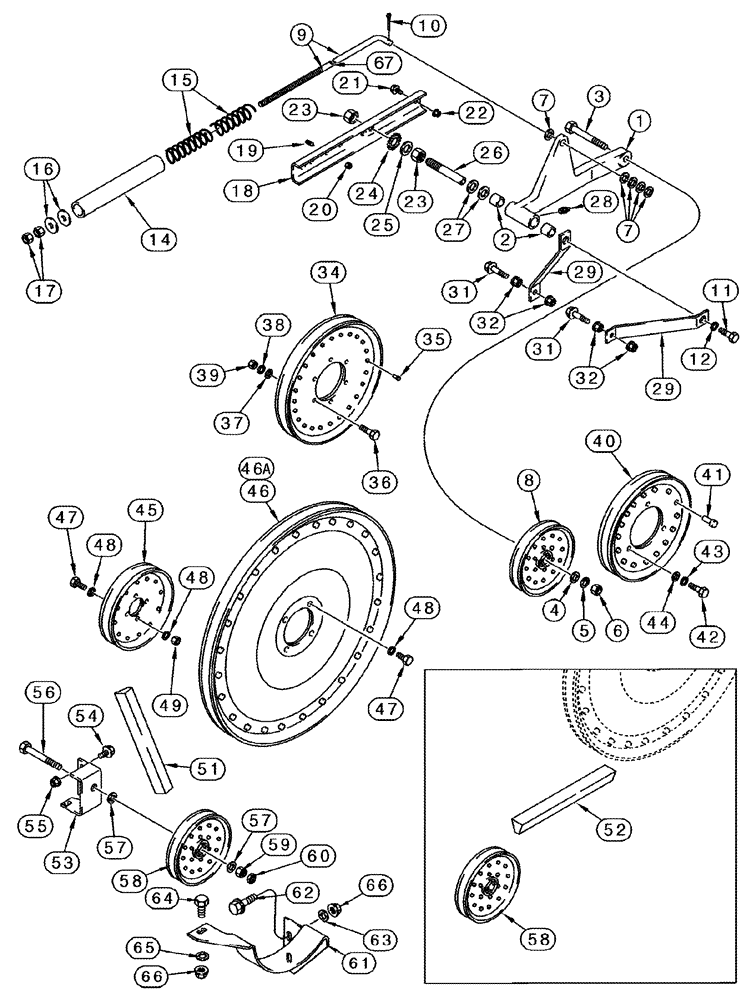

Схема запчастей Case IH 2388 - (09A-02) - BELT DRIVE - RIGHT-HAND SIDE (13) - FEEDER

Артикул

Название

Примечание

Количество

1

193447C91

ARM

Includes 2

1шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

2шт.

3

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

4

495-11066

WASHER,5/8", SAE

1шт.

5

492-11062

BEARING WASHER,5/8"

1шт.

6

425-1010

NUT,5/8"-11, G5

1шт.

7

495-11053

WASHER,1/2", SAE

4шт.

8

673214R91

PULLEY

186 mm (7-5/16"), Elevator Drive

1шт.

9

115160A1

ROD

1шт.

10

432-1216

COTTER PIN,3/16" x 1"

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

14

1994931C1

SPACER

1шт.

15

155311C1

SPRING

1шт.

16

495-81162

WASHER,17/32" x 1 1/2" x .179"

2шт.

17

425-108

NUT,1/2" - 13, Gr 5

2шт.

18

186588C3

CHANNEL

1шт.

19

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

4шт.

20

231-5146

FLANGE NUT,3/8"-16

4шт.

21

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

23

425-1012

NUT,3/4"-10, G5

2шт.

24

493-41078

LOCK WASHER,Ext Tooth, 3/4"

1шт.

25

495-11081

WASHER,3/4", SAE

1шт.

26

1327538C1

STUD

1шт.

27

495-11081

WASHER,3/4", SAE

1шт.

28

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

29

1327619C1

SUPPORT

2шт.

31

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

34

295918A1

PULLEY,355.6mm OD

Cleaning Unit, Includes 35

1шт.

35

104235

RIVET,FH, 3/16" x 1/2"

24шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

38

492-11038

LOCK WASHER,3/8"

3шт.

39

231-4116

NUT,3/8"-16, GB

3шт.

40

193948C1

PULLEY,39.61mm W x 254mm OD

9-3/4" OD, Cleaning Unit, Includes 41, See Figure 09C-06

1шт.

41

47-49

RIVET,FH, 1/4" x 9/16"

16шт.

42

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

43

492-11038

LOCK WASHER,3/8"

3шт.

44

495-81137

WASHER,13/32" x 1" x .224"

3шт.

45

195161C1

PULLEY

8-3/8" OD, Beater, See Figure 09C-01

1шт.

46

193682C1

PULLEY

25" OD, Shaker Shaft, Serial Range: -JJC0267149

1шт.

46a

359099A1

PULLEY,612.14mm OD

Shaker Shaft, See Figure 09B-15, Start Serial: JJC0267150

1шт.

47

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

48

492-11031

LOCK WASHER,5/16"

12шт.

49

425-105

NUT,5/16"-18, G5

4шт.

51

186509C2

BELT,0.879" W x 255.99" L

Over center

1шт.

Without Straw Chopper

1шт.

52

181055C1

BELT,0.879" W x 200.99" L

Over center

1шт.

With Straw Chopper

1шт.

53

188253C3

SUPPORT

Fixed Idler

1шт.

54

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

55

231-5146

FLANGE NUT,3/8"-16

4шт.

56

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

57

495-11066

WASHER,5/8", SAE

5шт.

58

673214R91

PULLEY

186 mm (7-5/16"), Fixed Idler

1шт.

59

425-1010

NUT,5/8"-11, G5

1шт.

60

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

61

1302068C2

GUIDE

Elevator Belt, Lower

1шт.

62

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

63

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

64

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

65

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

66

231-5146

FLANGE NUT,3/8"-16

3шт.

67

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

Bronze

1шт.

Выбрано товаров: 66
