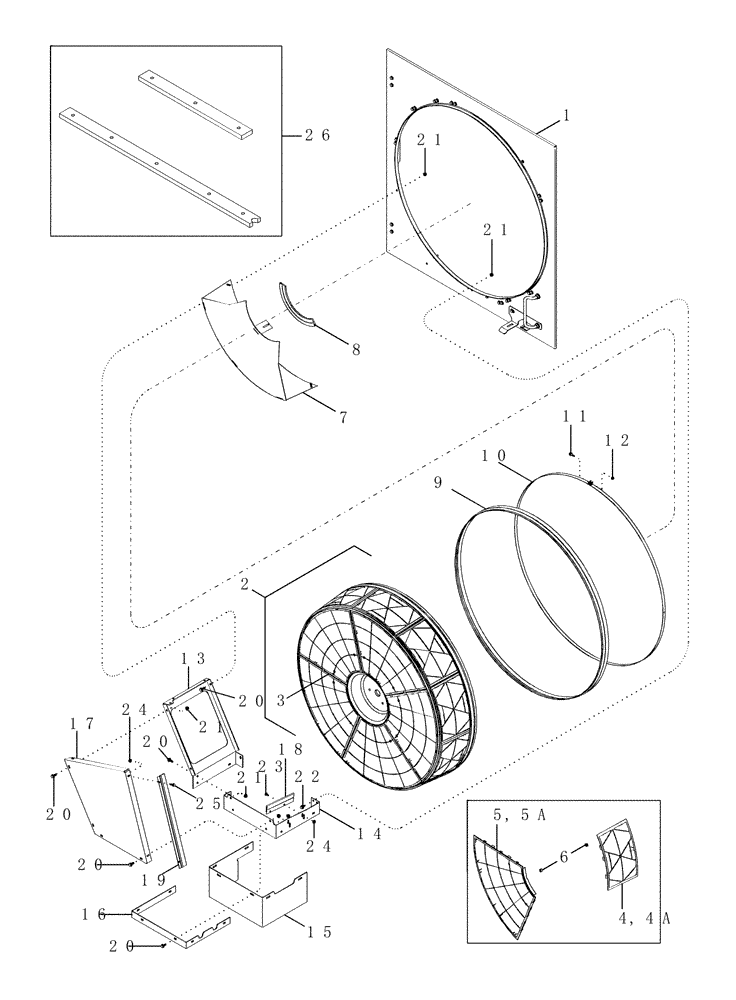

Запчасти Case IH 2388 (02-11[04]) - PLASTIC ROTARY AIR SCREEN ASSY, WITH DIRT DROP BOX AND BRUSHES - ASN JJC0274450 (01) - ENGINE
![Схема запчастей Case IH 2388 - (02-11[04]) - PLASTIC ROTARY AIR SCREEN ASSY, WITH DIRT DROP BOX AND BRUSHES - ASN JJC0274450 (01) - ENGINE](https://partsell.ru/storage/images/caseih/724280.png)
№
Артикул
Название
Примечание
Количество
1
87430947
DOOR
Cooler Access, See Figure 02-10
1шт.
2
87409301
SCREEN
Assy Rotary Air, Plastic Fine Mesh, Includes 3, 4, 5, 6
1шт.
2
87409302
SCREEN
Assy Rotary Air, Plastic Coarse Mesh, Inc. 3, 4A, 5A, 6
1шт.
3
87410086
SUPPORT
Frame Assy
1шт.
86988943
KIT
Rotary Air Screen Side, Fine Mesh, Includes 4 (1), 6 (10)
1шт.
86988941
KIT
Rotary Air Screen Side, Coarse Mesh, Inc. 4A (1), 6 (10)
1шт.
4
NSS
NOT SOLD SEPARAT
Screen, Side, Fine Mesh
10шт.
4a
NSS
NOT SOLD SEPARAT
Screen, Side, Coarse Mesh
10шт.
87301194
KIT
KIT Rotary Air Screen Front, Fine Mesh, Inc. 5 (1), 6 (10)
1шт.
87301195
KIT
KIT Rotary Air Screen Front, Coarse Mesh, Inc. 5A (1), 6 (10)
1шт.
5
NSS
NOT SOLD SEPARAT
SCREEN Front, Fine Mesh
5шт.
5a
NSS
NOT SOLD SEPARAT
SCREEN Front, Coarse Mesh
5шт.
6
86983638
CLIP
Screen Locking
145шт.
7
87409151
SHEET
Blockoff Assy
1шт.
8
87412677
BRUSH, COMMUTATOR
BRUSH Inner
1шт.
9
87429394
SEAL,1008.8mm ID x 1012.6mm OD x 44.5mm Thk
1шт.
10
86976658
CLAMP,1060mm
1шт.
11
409-7416
BOLT,Hex Flg, 1/4" - 20 x 1", Spcl
1шт.
12
231-1444
NUT,1/4"-20, GB
1шт.
13
87432971
CHUTE
Chute, Rear
1шт.
14
87432970
CHUTE
Chute, Front
1шт.
15
87432973
CHUTE
Chute, Lower
1шт.
16
87432972
STRAP
1шт.
17
87412289
PANEL
Chute, Upper
1шт.
18
414883A2
BRUSH
1шт.
19
87414124
BRUSH, COMMUTATOR
BRUSH Angled
1шт.
20
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
13шт.
21
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
16шт.
22
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
3шт.
23
477-82508
SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"
2шт.
24
231-5144
SERRATED NUT,Flg, USR, 1/4"-20
4шт.
25
409-7412
BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl
2шт.
26
87301188
KIT
Disrupter Bars, Hardware and Instructions
1шт.
87301156
CONVERSION KIT
Plastic to Metal Rotary Air Screen Conversion
1шт.
Выбрано товаров: 34
