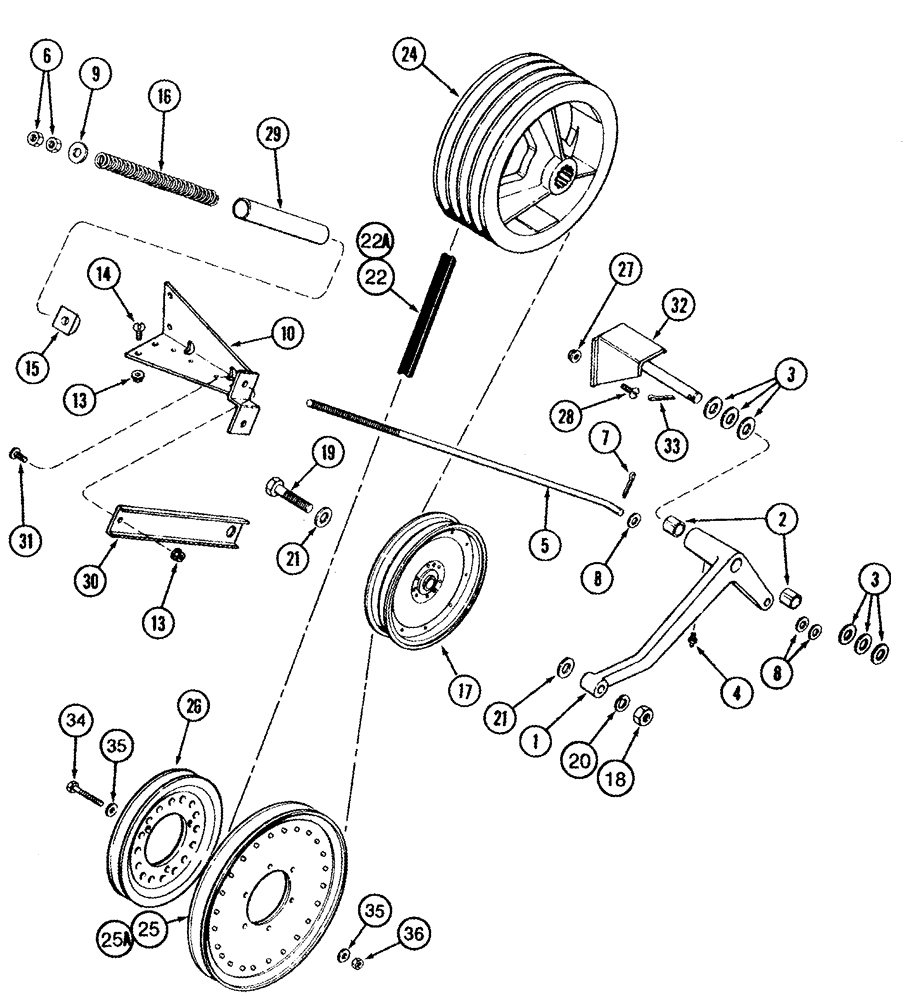

Запчасти Case IH 2388 (09A-01) - BELT DRIVE - JACKSHAFT, FAN (13) - FEEDER

1

194179C92

ARM

Includes 2

1шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

2шт.

3

495-11081

WASHER,3/4", SAE

6шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

174520C2

ROD

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

2шт.

7

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

8

495-11053

WASHER,1/2", SAE

3шт.

9

495-81162

WASHER,17/32" x 1 1/2" x .179"

1шт.

10

188485C2

SUPPORT

1шт.

13

231-5146

FLANGE NUT,3/8"-16

3шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

15

194652C1

PIVOT

1шт.

16

155311C1

SPRING

1шт.

17

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

8" OD, Fan Jackshaft Idler

1шт.

18

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

19

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

20

492-11062

BEARING WASHER,5/8"

1шт.

21

495-11066

WASHER,5/8", SAE

2шт.

22

188213C2

BELT,3250.33 mm L

Over center, Fan jackshaft, Serial Range: -JJC0198067

1шт.

Note: To reduce the cleaning system speed on models prior to P.I.N. JJC0198068, order 303188A1 kit.

1шт.

22a

317904A1

V-BELT,22.33 mm W x 3250.33 mm L

Fan Jackshaft, Start Serial: JJC0198068

1шт.

24

193999C1

PULLEY

12" OD, Feeder, Serial Range: -JJC0268799

1шт.

24

193999C2

PULLEY

12" OD, Feeder, Serial Range: JJC0270499-JJC0268800

1шт.

24

193999C3

PULLEY

12" OD, Feeder, Start Serial: JJC0270500

1шт.

25

183325C1

PULLEY

13" OD, Fan Jackshaft, Serial Range: -JJC0198067

1шт.

Note: To reduce the cleaning system speed on models prior to P.I.N. JJC0198068, order 303188A1 kit.

1шт.

25a

295918A1

PULLEY,355.6mm OD

13" OD, Fan Jackshaft, Start Serial: JJC0198068

1шт.

26

193948C1

PULLEY,39.61mm W x 254mm OD

9-3/4" OD, Cleaning Unit

1шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.

29

185396C1

TUBE,34.93 mm OD, 228.6 mm Length

1шт.

30

188486C1

CHANNEL

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

32

192277C2

SUPPORT

1шт.

33

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

34

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

3шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

6шт.

36

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

3шт.

303188A1

KIT

Cleaning System Slow Down, Includes 317904A1 (Ref. 22A), 295918A1 (Ref. 25A), 1327534C92, 1302671C92, 3011346A1, 301141A1, 296022A1, 296023A1, 1862283C2, See Figure(s) 09C-07, 09D-04, 09D-12, 09D-13

1шт.
