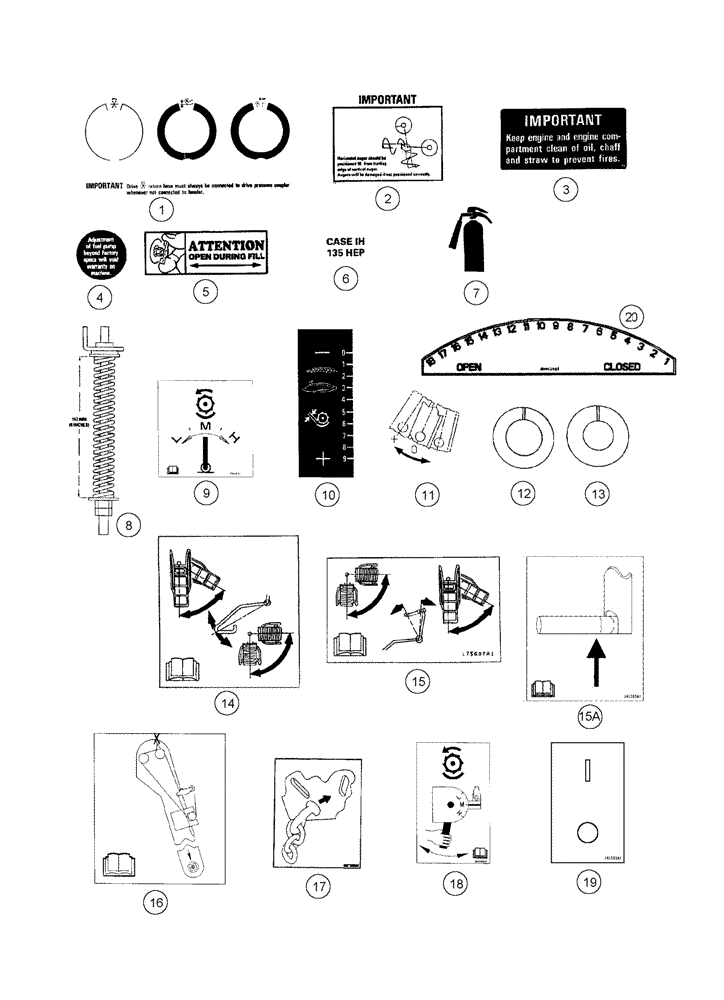

Запчасти Case IH 2388 (09H-26) - DECALS - IMPORTANT INSTRUCTIONS, DECAL KITS (12) - CHASSIS

1

1989604C1

DECAL

Drive Return Instructions, English

1шт.

1

1989607C1

DECAL

Drive Return Instructions, French

1шт.

1

1989605C1

DECAL

Drive Return Instructions, Spanish

1шт.

1

278560A1

DECAL

Drive Return Instructions, Portuguese

1шт.

1

233453A1

DECAL

Drive Return Instructions, Europe/Russian

1шт.

2

1989314C1

DECAL

Horizontal Auger Instructions, English

1шт.

2

1989648C1

DECAL

Horizontal Auger Instructions, French

1шт.

2

1989650C1

DECAL

Horizontal Auger Instructions, Spanish

1шт.

2

278561A1

DECAL

Horizontal Auger Instructions, Portuguese

1шт.

2

233455A1

DECAL

Horizontal Auger Instructions, Europe/Russian

1шт.

3

173881C1

DECAL

Keep Engine and Compartment Clean, English

1шт.

3

1300039C1

DECAL

Keep Engine and Compartment Clean, French

1шт.

3

1300395C1

DECAL

Keep Engine and Compartment Clean, Spanish

1шт.

3

278559A1

DECAL

Keep Engine and Compartment Clean, Portuguese

1шт.

3

234924A1

DECAL

Keep Engine and Compartment Clean, Europe/Russian

1шт.

4

184666A1

DECAL

Warranty, Fuel Pump, English

1шт.

4

184668A1

DECAL

Warranty, Fuel Pump, French

1шт.

4

184669A1

DECAL

Warranty, Fuel Pump, Spanish

1шт.

4

278583A1

DECAL

Warranty, Fuel Pump, Portuguese

1шт.

4

233452A1

DECAL

Warranty, Fuel Pump, Europe/Russian

1шт.

5

J910778

DECAL

Open During Fill

1шт.

6

144378A1

DECAL

135 HEP

3шт.

7

144483A1

DECAL

Fire Extinguisher

1шт.

8

144369A1

DECAL

Elevator Drive Adjustment

1шт.

9

293460A1

DECAL

3 Speed Rotor Shift, Serial Range: -JJC0270499

1шт.

10

1312068C1

DECAL

Concave Indicator

1шт.

11

175784A1

DECAL

Vane Position

1шт.

12

1345266C1

WASHER

White, See Figure(s) 08-19, 08-20, For Reel Drive System

1шт.

13

1541792C1

WASHER

Red, See Figure 08-23, For Reel Fore and Aft System

1шт.

14

175606A1

DECAL

Lower Control, Operator Ladder

1шт.

15

175607A1

DECAL

Upper Control, Operator Ladder

1шт.

15a

349005A1

DECAL

Ladder Unlatch

1шт.

16

239313A1

DECAL

Elevator Inclined Delivery, GPS/AFS

1шт.

17

283528A1

DECAL

T-Hook

4шт.

18

303849A1

DECAL

3 Speed Rotor Shift

1шт.

19

405826A1

DECAL

3 Speed Rotor Shift, Start Serial: JJC0268800

1шт.

20

400620A1

DECAL

Sieve Adjustment

1шт.

368842A2

DECAL KIT

Decal Kit, French, Replaces 322248A1, Start Serial: JJC0265306

1шт.

368843A2

DECAL KIT

Decal Kit, Spanish, Replaces 322250A1, Start Serial: JJC0265306

1шт.

368844A2

DECAL KIT

Decal Kit, Portuguese, Replaces 322252A1, Start Serial: JJC0265306

1шт.

402600A2

DECAL KIT

Decal Kit, Europe/Russian, Start Serial: JJC0273000

1шт.

426155A1

KIT

Sieve Lighting / Viewing Door, Inc. 19, See Figure(s) 04-16, 09H-03, 09H-25 (01)

1шт.

Use to retrofit machines built prior to P.I.N. JJC0270499.

1шт.
