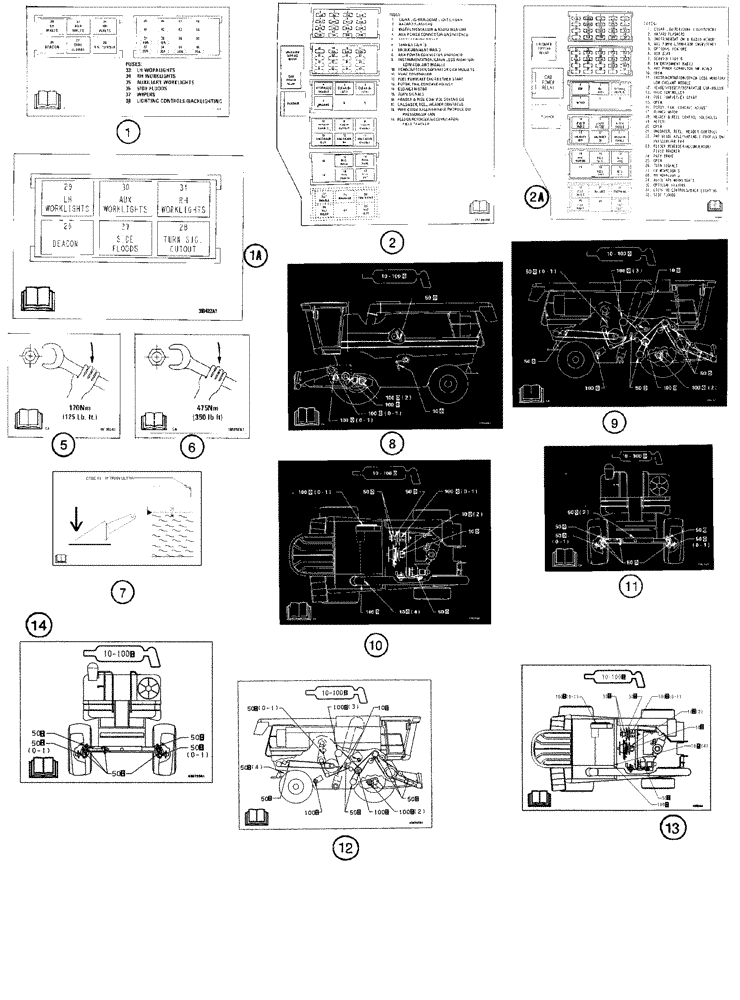

Запчасти Case IH 2388 (09H-25[01]) - DECALS - INFORMATION DECALS WITH READ OPERATORS MANUAL SYMBOL (12) - CHASSIS

1

177343A1

DECAL

Upper Fuse and Relay, English, Serial Range: -JJC0265305

1шт.

1a

319422A1

DECAL

Upper Relay, English, Start Serial: JJC0265306

1шт.

1

177344A1

DECAL

Upper Fuse and Relay, French, Serial Range: -JJC0265305

1шт.

1a

319423A1

DECAL

Upper Relay, French, Start Serial: JJC0265306

1шт.

1

177345A1

DECAL

Upper Fuse and Relay, Spanish, Serial Range: -JJC0265305

1шт.

1a

319424A1

DECAL

Upper Relay, Spanish, Start Serial: JJC0265306

1шт.

1

278576A1

DECAL

Upper Fuse and Relay, Portuguese, Serial Range: -JJC0265305

1шт.

1a

319426A1

DECAL

Upper Relay, Portuguese/Brazil, Start Serial: JJC0265306

1шт.

1a

319425A1

DECAL

Upper Relay, Europe/Russian

1шт.

2

276606A2

DECAL

Lower Fuse and Relay, English, Use with 276603A2, Serial Range: -JJC0265305

1шт.

2a

319428A1

DECAL

Lower Fuse and Relay, English, Use with 315073A1, Serial Range: JJC0265306-JJC0267149

1шт.

2b

371281A1

DECAL

Lower Fuse and Relay, English, Use with 370779A1, Not Illustrated, Serial Range: JJC0267150-JJC0268799

1шт.

2c

392896A1

DECAL

Lower Fuse and Relay, English, Use with 388671A2, Not Illustrated, Start Serial: JJC0268800

1шт.

2

276607A2

DECAL

Lower Fuse and Relay, French, Use with 276603A2, Serial Range: -JJC0265305

1шт.

2a

319429A1

DECAL

Lower Fuse and Relay, French, Use with 315073A1, Serial Range: JJC0265306-JJC0267149

1шт.

2b

371282A1

DECAL

Lower Fuse and Relay, French, Use with 370779A1, Not Illustrated, Serial Range: JJC0267150-JJC0268799

1шт.

2c

392897A1

DECAL

Lower Fuse and Relay, French, Use with 388671A2, Not Illustrated, Start Serial: JJC0268800

1шт.

2

276608A2

DECAL

Lower Fuse and Relay, Spanish, Use with 276603A2, Serial Range: -JJC0265305

1шт.

2a

319430A1

DECAL

Lower Fuse and Relay, Spanish, Use with 315073A1, Serial Range: JJC0265306-JJC0267149

1шт.

2b

371283A1

DECAL

Lower Fuse and Relay, Spanish, Use with 370779A1, Not Illustrated, Serial Range: JJC0267150-JJC0268799

1шт.

2c

392901A1

DECAL

Lower Fuse and Relay, Spanish, Use with 388671A2, Not Illustrated, Start Serial: JJC0268800

1шт.

2

279796A2

DECAL

Lower Fuse and Relay, Portuguese, Use with 276603A2, Serial Range: -JJC0265305

1шт.

2a

319432A1

DECAL

Lower Fuse and Relay, Portuguese, Use with 315073A1, Serial Range: JJC0265306-JJC0267149

1шт.

2b

371285A1

DECAL

Lower Fuse and Relay, Portuguese, Use with 370779A1, Not Illustrated, Serial Range: JJC0267150-JJC0268799

1шт.

2c

392899A1

DECAL

Lower Fuse and Relay, Portuguese/Brazil, Use with 388671A2, Not Illustrated, Start Serial: JJC0268800

1шт.

2c

392898A1

DECAL

Lower Fuse and Relay, Europe/Russian, Not Illustrated

1шт.

5

181992A1

DECAL

Without Power Guide Axle System

2шт.

6

181917A2

DECAL

With Power Guide Axle System

2шт.

7

401533A1

DECAL

Hydraulic Oil Level

1шт.

8

179620A2

DECAL

Lubrication Chart, LH

1шт.

9

179621A2

DECAL

Lubrication Chart, RH, Serial Range: -JJC0270499

1шт.

10

179622A2

DECAL

Lubrication Chart, Upper, Serial Range: -JJC0270499

1шт.

11

179623A2

DECAL

Lubrication Chart, Rear, Serial Range: -JJC0270499

1шт.

12

435797A1

DECAL

Lubrication Chart, RH, Start Serial: JJC270500

1шт.

13

435798A1

DECAL

Lubrication Chart, Upper, Start Serial: JJC0270500

1шт.

14

435799A1

DECAL

Inclined Delivery Auger Elevator, Start Serial: JJC0270500

1шт.

426155A1

KIT

Sieve Light / Viewing Door, Includes 8, See Figure(s) 04-16, 09H-03, 09H-26

1шт.

Use to retrofit machines built prior to P.I.N. JJC0270499.

1шт.
