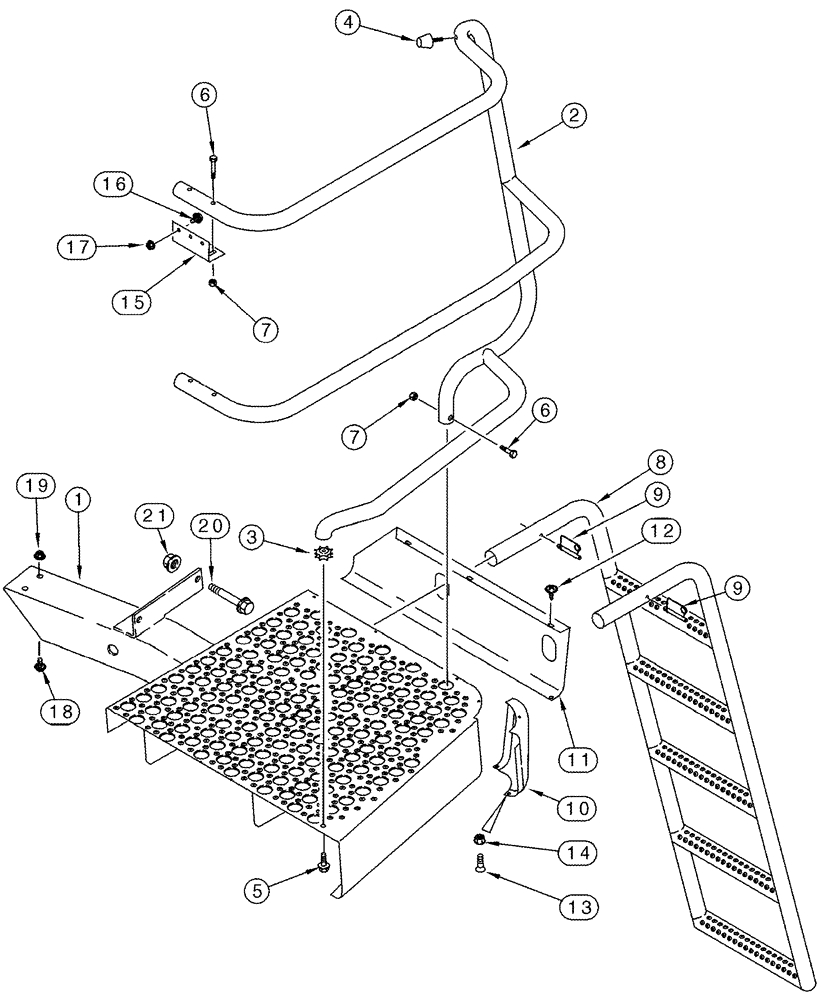

Запчасти Case IH 2388 (09H-21) - PLATFORM - LADDER, RIGHT HAND (12) - CHASSIS

1

111247A5

PLATFORM

RH

1шт.

2

111353A3

HANDRAIL

RH

1шт.

3

140225A2

TUBE,17.4 mm Length

1шт.

4

N7673

BUMPER

1шт.

5

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

6

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5шт.

7

231-1445

NUT,5/16"-18, GB

5шт.

8

127137A3

LADDER

RH

1шт.

9

1338021C1

PIN,7.94mm OD

2шт.

10

118938A1

SUPPORT

RH, Corner

1шт.

11

118937A2

SUPPORT

RH, Front

1шт.

12

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

4шт.

13

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

2шт.

14

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

15

141049A2

SUPPORT

Replaces 141049A1

2шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

18

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

19

231-5146

FLANGE NUT,3/8"-16

2шт.

20

854-12080

BOLT,Hvy Hex, M12 x 80mm, Cl 10.9

Replaces 326-852

2шт.

21

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

Replaces 131-946

2шт.
