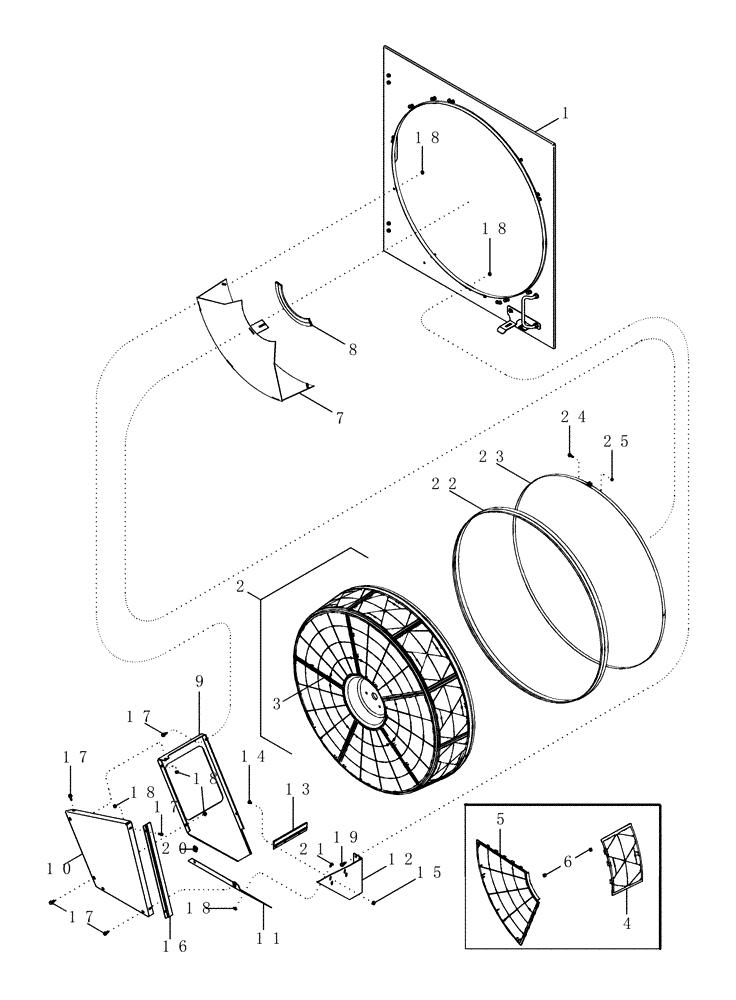

Запчасти Case IH 2388 (02-11[03]) - PLASTIC ROTARY AIR SCREEN ASSY, WITH VERTICAL DIRT CHUTE AND BRUSHES - BTW JJC0273000 & JJC0274396 (01) - ENGINE

1

87413638

DOOR

Cooler Access

1шт.

2

87409301

SCREEN

Assy Rotary Air, Plastic Fine Mesh, Includes 3 - 6

1шт.

3

87410086

SUPPORT

Frame Assy

1шт.

86988943

KIT

Rotary Air Screen Side, Includes 4 (1), 6 (10)

1шт.

4

NSS

NOT SOLD SEPARAT

Screen, Side

10шт.

86988944

KIT

Rotary Air Screen Front, Includes 5 (1), 6 (10)

1шт.

5

NSS

NOT SOLD SEPARAT

Screen, Front

5шт.

6

86983638

CLIP

Screen Locking

145шт.

7

87409151

SHEET

Blockoff Assy

1шт.

8

87412677

BRUSH, COMMUTATOR

BRUSH Inner

1шт.

9

87412286

SUPPORT

Dirt Chute, Rear

1шт.

10

87412289

PANEL

Dirt Chute, Upper

1шт.

11

87412288

PANEL

Dirt Chute, Lower

1шт.

12

87412287

SUPPORT

Dirt Chute, Front

1шт.

13

414883A2

BRUSH

Lower Blockoff

1шт.

14

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

16

87414124

BRUSH, COMMUTATOR

BRUSH Angled

1шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

11шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

20

488837C1

SPRING NUT

5/16"

2шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

22

86976657

SEAL

1шт.

23

86976658

CLAMP,1060mm

1шт.

24

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

25

231-1444

NUT,1/4"-20, GB

1шт.
