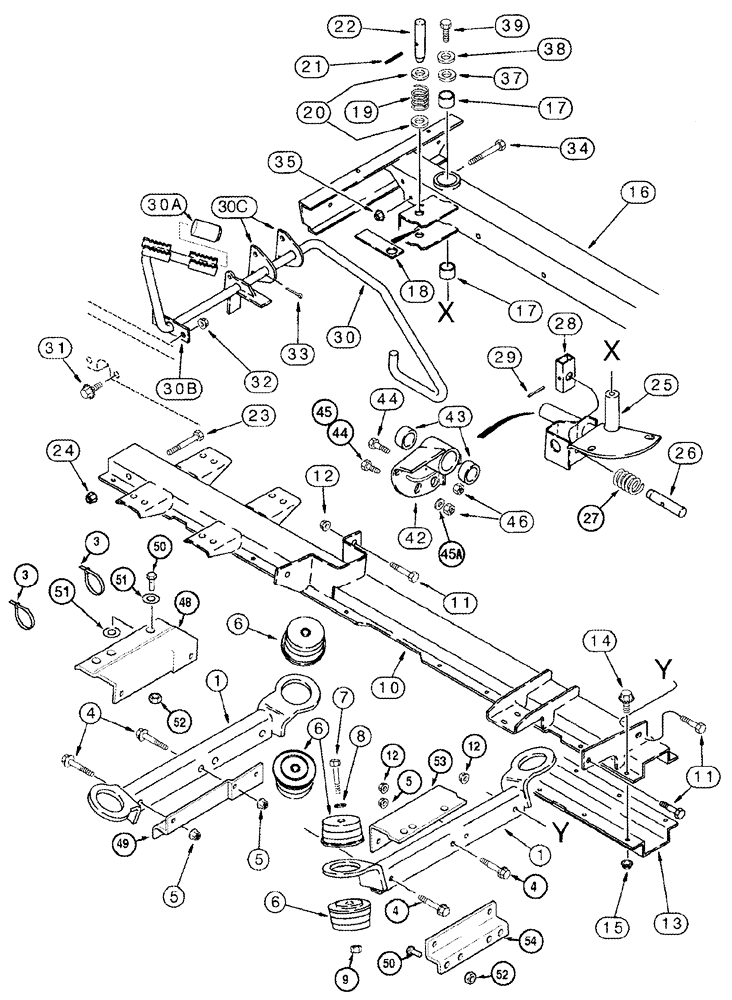

Запчасти Case IH 2388 (09H-18) - PLATFORM SUPPORT - LADDER PIVOT BSN JJC0265305 (12) - CHASSIS

1

112052A1

SUPPORT

2шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15"

1шт.

4

854-12100

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

Replaces 360-864

4шт.

5

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

Replaces 329-288

4шт.

6

123566A1

ISOLATOR

8шт.

7

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

4шт.

8

CASD35009

WASHER,16.67mm ID x 63.5mm OD

4шт.

9

232-41110

NUT,5/8"-11, GC

4шт.

10

143520A2

SUPPORT

LH

1шт.

11

854-12080

BOLT,Hvy Hex, M12 x 80mm, Cl 10.9

Replaces 326-852

3шт.

12

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

Replaces 131-946

3шт.

13

182648A1

SUPPORT

LH

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

23шт.

15

231-5146

FLANGE NUT,3/8"-16

23шт.

16

192351A1

BEAM

LH, Includes 17, Includes Decal, See Figure 09H-23, Ref. 13

1шт.

17

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

2шт.

18

126024A2

LEVER

1шт.

19

126162A1

SPRING

1шт.

20

495-81275

WASHER,1.06" ID x 1.75" OD x 0.07" Thk

2шт.

21

438-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

22

126017A1

PIN,25.4mm OD x 127mm L

1шт.

23

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

24

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

25

224572A1

SHAFT

1шт.

26

126014A1

SPLIT PIN/SAFETY PIN

1шт.

27

126162A1

SPRING

1шт.

28

142025A1

TUBE,100 mm Length

1шт.

29

438-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

30

113132A4

LEVER

Includes 30A

1шт.

30a

226172A1

PLUG

1шт.

30b

141922A2

PLATE

2шт.

30c

143458A1

PLATE

2шт.

31

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

432-1024

COTTER PIN,5/32" x 1 1/2"

2шт.

34

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

35

231-5146

FLANGE NUT,3/8"-16

2шт.

37

495-81238

WASHER,13/16" x 3" x .238", HDN

1шт.

38

142054A1

THRUST WASHER

1шт.

39

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

1шт.

42

142380A2

PIVOT

Includes 43

1шт.

43

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

2шт.

44

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

1-2шт.

45

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

No Longer Used, Replace with 324-532

1шт.

45a

496-41034

WASHER,.344" x 1" x .098", HDN

1шт.

46

231-1445

NUT,5/16"-18, GB

2шт.

48

236272A2

SUPPORT

LH, Upper

1шт.

49

233243A3

SUPPORT

LH, Lower

1шт.

50

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Replaces 627-12045

4шт.

50

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Replaces 627-12045

6шт.

51

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

52

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

10шт.

53

236274A2

BRACKET

RH, Upper

1шт.

54

233246A3

SUPPORT

RH, Lower

1шт.
