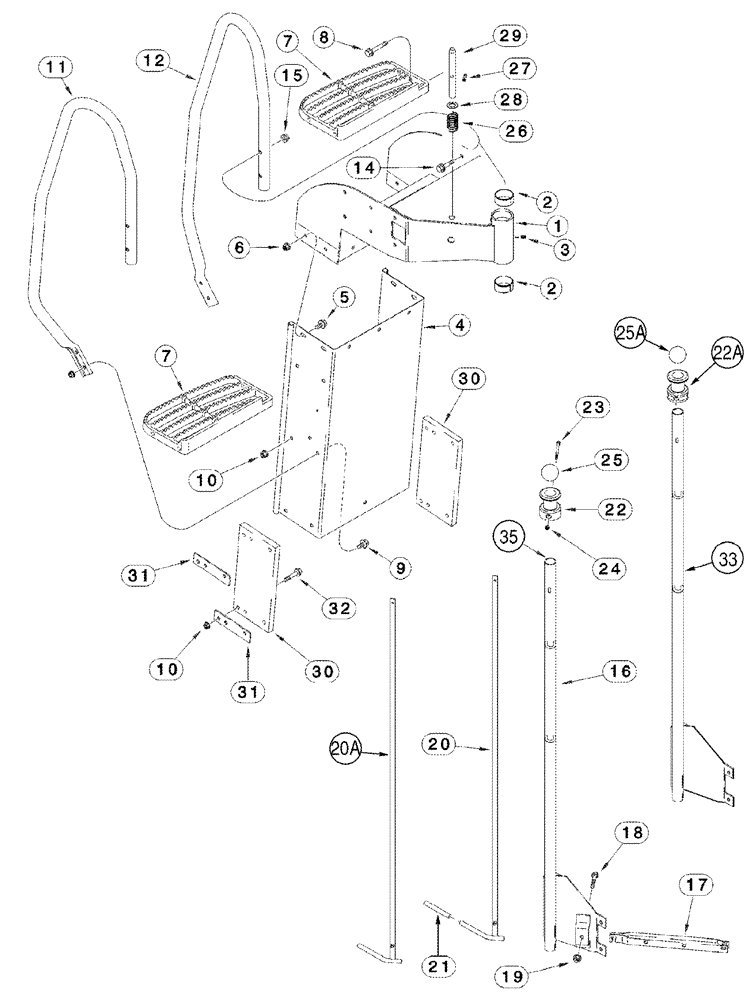

Запчасти Case IH 2388 (09H-15) - LADDER, OPERATORS ASN JJC0265306 (12) - CHASSIS

1

320901A2

SUPPORT

Includes 2, 3, Serial Range: JJC0265306-JJC0275338

1шт.

1

87301166

SUPPORT

Includes 2, 3, Start Serial: JJC0275339

1шт.

2

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

2шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

320913A2

CHANNEL

Ladder Rear, Serial Range: JJC0265306-JJC0275338

1шт.

4

87301175

CHANNEL

CHANNEL Ladder Rear, Start Serial: JJC0275339

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

7шт.

6

231-5146

FLANGE NUT,3/8"-16

7шт.

7

97050C3

STEP

JJC0265306, Serial Range: -JJC0275338

5шт.

7

87301185

STEP

, Start Serial: JJC0275339

5шт.

8

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

2шт.

9

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

12шт.

9

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

8шт.

10

231-5146

FLANGE NUT,3/8"-16

15шт.

10

231-5346

FLANGE NUT,Flg, 3/8"-16

7шт.

11

320924A1

HANDRAIL

Handrail, RH

1шт.

12

320925A1

HANDRAIL

LH

1шт.

14

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

10шт.

15

231-5346

FLANGE NUT,Flg, 3/8"-16

12шт.

349350A1

TUBE

Includes 16, 16A, If Used

1шт.

16

320894A1

TUBE

1шт.

16a

349005A1

DECAL

Ladder Unlatch, Not Illustrated, See Figure 09H-26, Ref. 15A

1шт.

17

320916A3

LEVER

Latch, Ladder

1шт.

18

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

19

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

20

320919A2

STEM

If Used

1шт.

20a

364437A1

LATCH

If Used

1шт.

21

324455A1

PROTECTOR

Cap

1шт.

22

320922A1

HANDLE

Ladder Latch

1шт.

Used with 349350A1

1шт.

22a

349015A1

KNOB

Ladder Latch

1шт.

Used with 365759A2

1шт.

23

840-1660

SCREW,Pan HD, M6 x 60mm, Cl 4.8

1шт.

24

832-10406

NUT,M6 x 1, Cl 8

1шт.

25

320923A1

BALL KNOB

Use Loctite No. 425, See Below 35, Used with 320922A1

1шт.

25a

349014A1

KNOB

Use Loctite No. 425, See Below 35, Used with 349015A1

1шт.

26

338153A1

SPRING

1шт.

27

38-32024

PIN,5/16" x 1 1/2", Coiled

1шт.

28

495-81039

WASHER,25/32" x 1 1/4" x .120"

1шт.

29

320917A1

PIN,19.05mm OD x 176.25mm L

176.25 mm Long

1шт.

30

322425A1

SUPPORT

Ladder, Serial Range: JJC0265306-JJC0275338

2шт.

30

87301176

SUPPORT,150mm W x 325mm L

Ladder Bottom Step, Start Serial: JJC0275339

2шт.

31

320930A1

PLATE

, Serial Range: JJC0265306-JJC0275338

4шт.

31

87301177

PLATE

, Start Serial: JJC0275339

4шт.

32

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

3шт.

32

121-437

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1.50"

1шт.

365759A2

POST

Includes 33, 34, Serial Range: JJC0265306-JJC0275338

1шт.

87301181

POST

Includes 33, 34, Start Serial: JJC0275339

1шт.

33

NSS

NOT SOLD SEPARAT

Beam

1шт.

34

349005A1

DECAL

Ladder Unlatch, Not Illustrated, See Figure 09H-26, Ref. 15A

1шт.

35

REF

INSTRUCTION

ADHESIVE, Loctite 425, Purchase Locally

1шт.

36

495-81178

WASHER,21/32" x 1 1/8" x .048"

Not Illustrated

1шт.
