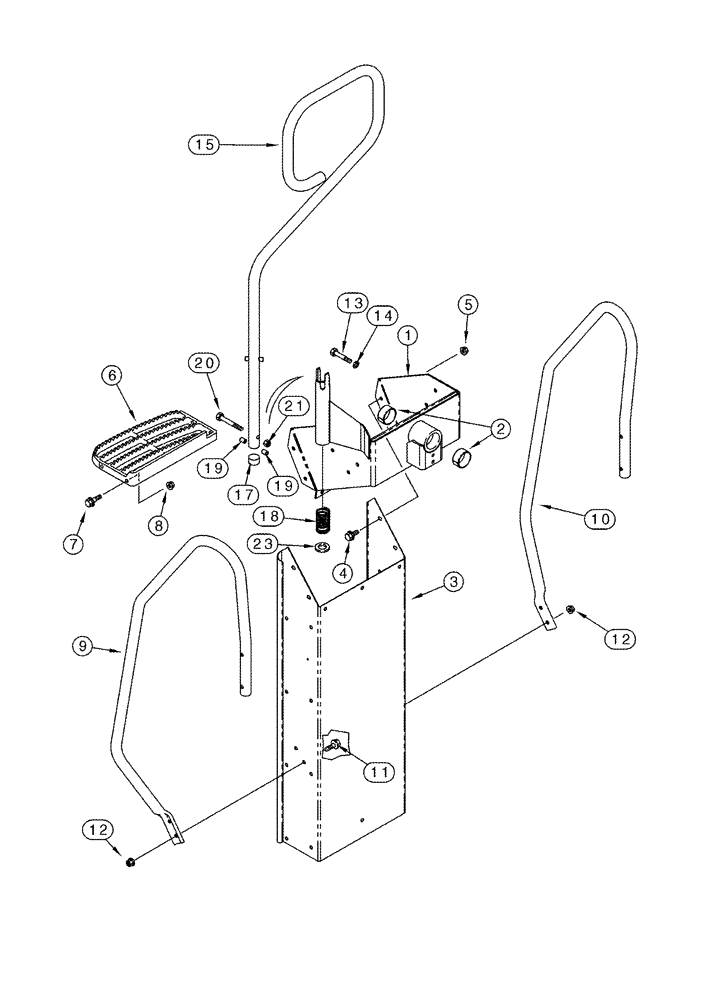

Запчасти Case IH 2388 (09H-14) - LADDER, OPERATORS BSN JJC0265305 (12) - CHASSIS

1

193980A3

SUPPORT

Includes 2

1шт.

2

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

2шт.

3

125495A1

CHASSIS

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

7шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

97050C3

STEP

5шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

20шт.

8

231-5146

FLANGE NUT,3/8"-16

20шт.

9

182683A1

RAMP

RH

1шт.

10

182682A1

RAMP

LH

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

12

231-5146

FLANGE NUT,3/8"-16

8шт.

13

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

1шт.

14

495-81238

WASHER,13/16" x 3" x .238", HDN

1шт.

15

254208A4

TUBE,150, 130 mm Length

1шт.

17

298726A1

PLASTIC PLUG

1шт.

18

182339A2

SPRING

1шт.

19

1277909C1

SPACER

2шт.

20

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

1шт.

21

231-1445

NUT,5/16"-18, GB

1шт.

22

547596R1

GREASE

Not Illustrated

1шт.

23

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

1шт.
