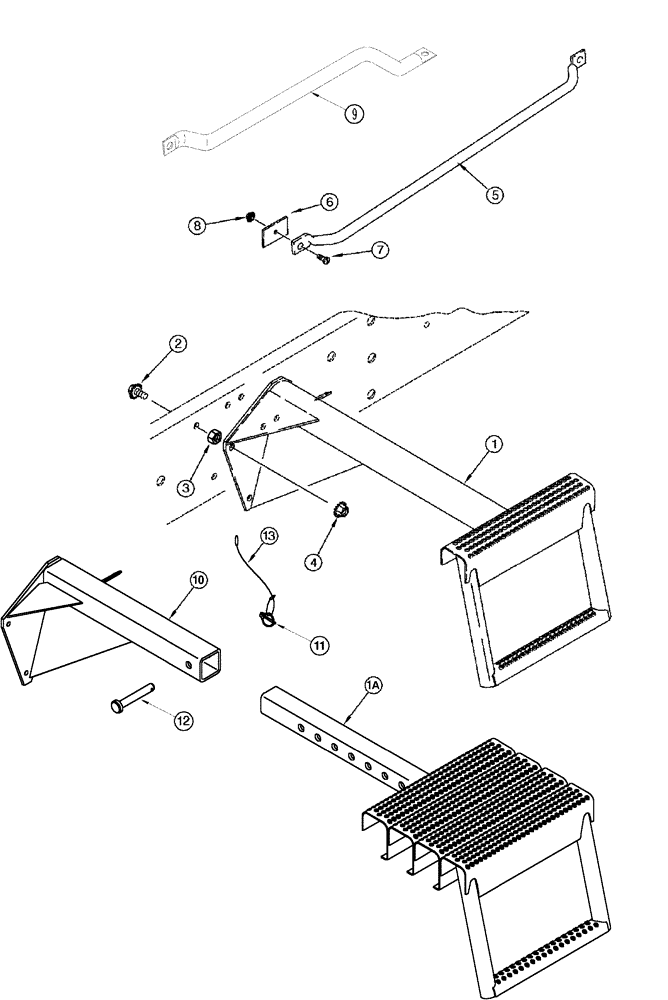

Запчасти Case IH 2388 (09H-13) - LADDER - RADIATOR ACCESS (12) - CHASSIS

1

142906A3

STEP

, Serial Range: -JJC0272999

1шт.

1a

87412228

STEP

Radiator Access, Start Serial: JJC0273000

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

3

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

143775A2

HANDRAIL

, Serial Range: -JJC0270499

1шт.

6

183380A1

PLATE

, Serial Range: -JJC0270499

2шт.

6

418690A1

PLATE

, Start Serial: JJC0270500

2шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

414004A1

HANDRAIL

, Serial Range: JJC0270500-JJC0272999

1шт.

10

87412230

SUPPORT

Support, Radiator Access, Start Serial: JJC0273000

1шт.

11

A33497

LINCH PIN,4.76mm OD Pin

, Start Serial: JJC0273000

1шт.

12

87024650

HEADED PIN

5/8" x 3", Start Serial: JJC0273000

1шт.

13

427336A1

CABLE,457.2mm L

457 mm (18"), Start Serial: JJC0273000

1шт.
