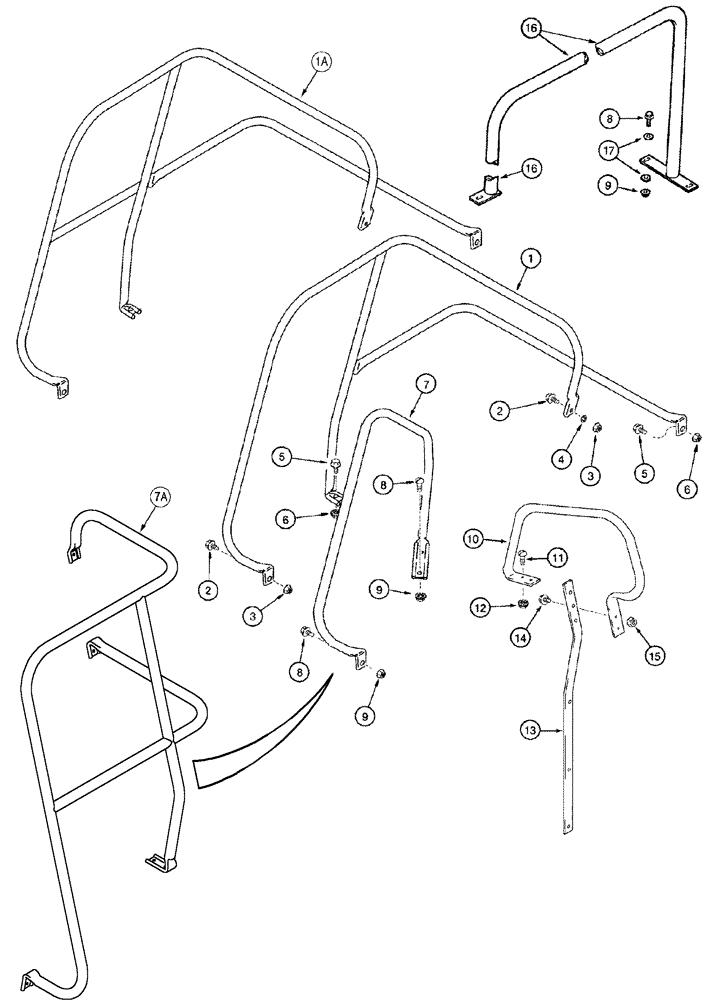

Запчасти Case IH 2388 (09H-12) - HAND RAILS - DECK, SERVICE (12) - CHASSIS

1

140196A2

GRAB RAIL

LH, No Longer Used, Order 356330A1

1шт.

1a

356330A1

HANDRAIL

LH

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

7

222928A2

TUBE

RH, Serial Range: -JJC272999

1шт.

7a

442186A1

HANDRAIL

RH, Start Serial: JJC0273000

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

10

258961A1

GRAB RAIL

, Serial Range: -JJC0272999

1шт.

11

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

3шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

13

258824A1

SUPPORT

, Serial Range: -JJC0272999

1шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

16

3179827R1

HANDRAIL

Australia Only

1шт.

17

495-11034

WASHER,5/16", SAE

6шт.

18

495-81024

WASHER,17/32" x 1 1/4" x .060"

2шт.
