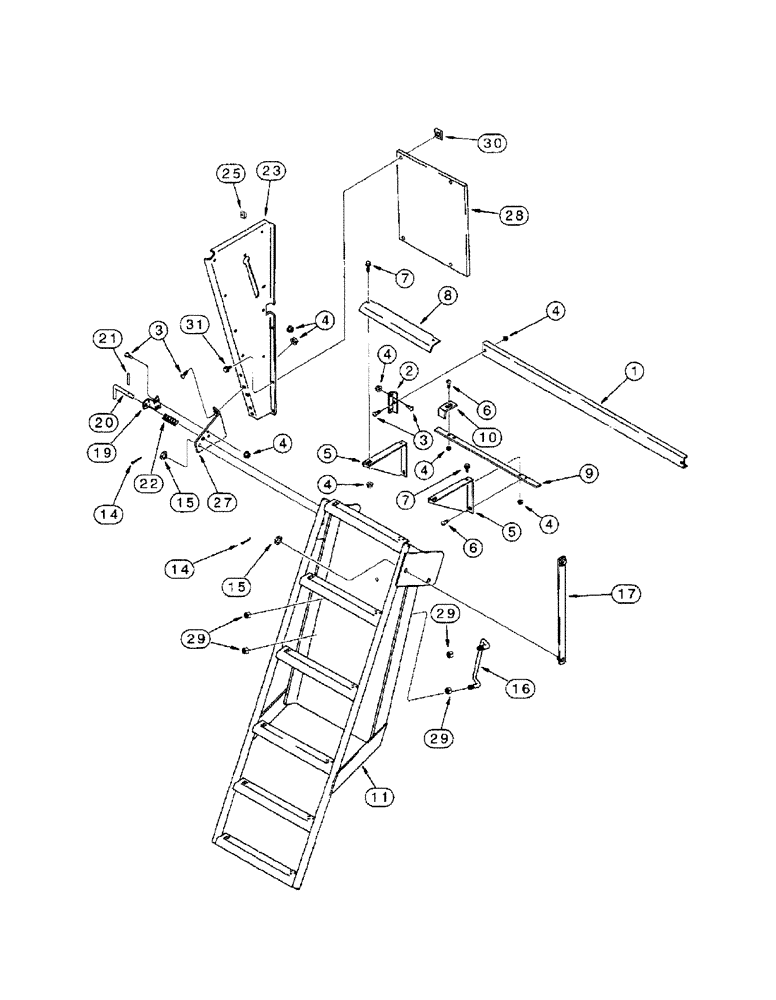

Запчасти Case IH 2388 (09H-11[02]) - LADDER, SERVICE - LADDER EXTENSION, ASN JJC0290411 (12) - CHASSIS

1

191007C2

CHANNEL

, Serial Range: -JJC0268799

1шт.

1

382341A1

CHANNEL

Not Illustrated, Start Serial: JJC0268800

1шт.

2

1327997C2

BRACKET

2шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

14шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

5

1347489C1

SUPPORT

2шт.

6

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

8

1327607C1

PLATE

1шт.

9

1319722C1

BAR

1шт.

10

1321975C1

BRACKET

1шт.

11

410531A2

LADDER

Inc. Decal, See Figure 09H-22, REF 9

1шт.

14

432-1212

COTTER PIN,3/16" x 3/4"

4шт.

15

495-11066

WASHER,5/8", SAE

6шт.

16

1329715C1

HANDLE

1шт.

17

1321698C1

LINK

2шт.

19

1319739C1

BRACKET

1шт.

20

1319740C2

PIN,3mm OD x 20mm OAL

1шт.

21

38-1813

LOCK PIN,1/8" x 13/16", Slotted

1шт.

22

540815R2

SPRING

1шт.

23

185404C5

SIDE PLATE

Left Hand, Serial Range: -JJC0268799

1шт.

23

364129A1

SUPPORT

Left Hand, Start Serial: JJC0268800

1шт.

24

185405C5

SIDE PLATE

Right Hand, Not Illustrated, Serial Range: -JJC0268799

1шт.

24

364130A1

SUPPORT

RH, Not Illustrated, Start Serial: JJC0268800

1шт.

25

488837C1

SPRING NUT

5/16"

8шт.

27

1319738C1

BRACKET

2шт.

28

186970C3

SHEET

, Serial Range: -JJC0268799

1шт.

28

364784A1

PLATE

, Start Serial: JJC0268800

1шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

31

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

4шт.
