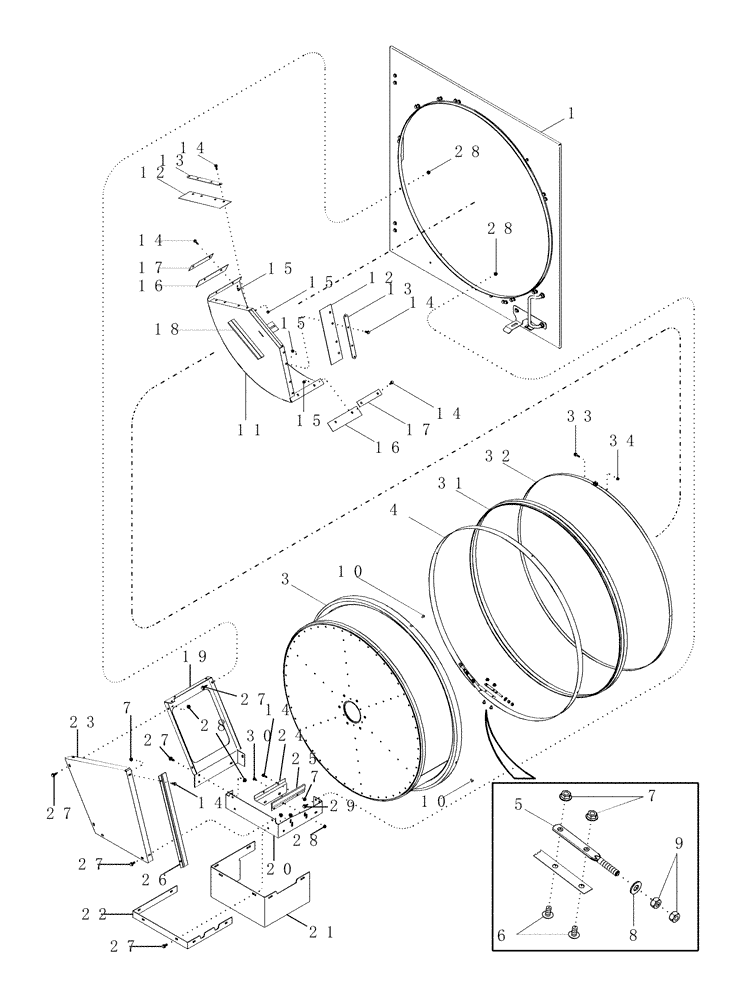

Запчасти Case IH 2388 (02-11[02]) - METAL ROTARY AIR SCREEN ASSY, WITH DIRT DROP BOX AND BRUSHES - ASN JJC0273000 (01) - ENGINE

1

87430947

DOOR

Cooler Access, See Figure 02-10

1шт.

2

REF

INSTRUCTION

Screen Assy, Rotary Air, Includes 3 - 10

1шт.

3

87418044

SCREEN

Rotary Air

1шт.

4

87417475

BAND

Assy

1шт.

5

87413544

BOLT

Drawbolt Ring

2шт.

6

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

8

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

390747A1

RIVET

3шт.

11

87412949

SHEET

Blockoff Assy

1шт.

12

87408561

SEAL

2шт.

13

87408560

BAR

2шт.

14

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

19шт.

15

231-4144

NUT,1/4"-20, GB

12шт.

16

1977166C1

SEAL

Baffle Rear

2шт.

17

1977164C2

STRIP

2шт.

18

87413136

BRUSH, COMMUTATOR

BRUSH Inner

1шт.

19

87432971

CHUTE

Chute, Rear

1шт.

20

87432970

CHUTE

Front

1шт.

21

87432973

CHUTE

Lower

1шт.

22

87432972

STRAP

Chute

1шт.

23

87412289

PANEL

Chute, Upper

1шт.

24

87413935

SUPPORT

Horizontal Brush

1шт.

25

414883A2

BRUSH

1шт.

26

87414124

BRUSH, COMMUTATOR

BRUSH Angled

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

13шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

31

87429394

SEAL,1008.8mm ID x 1012.6mm OD x 44.5mm Thk

1шт.

32

86976658

CLAMP,1060mm

1шт.

33

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

34

231-1444

NUT,1/4"-20, GB

1шт.

35

1327979C1

MOLDING

Cut 152 mm (6") from 196707C1, Not Illustrated

1шт.
