Запчасти Case IH 2388 (09H-09) - GRAIN TANK, CORNER COVER PARTS (12) - CHASSIS

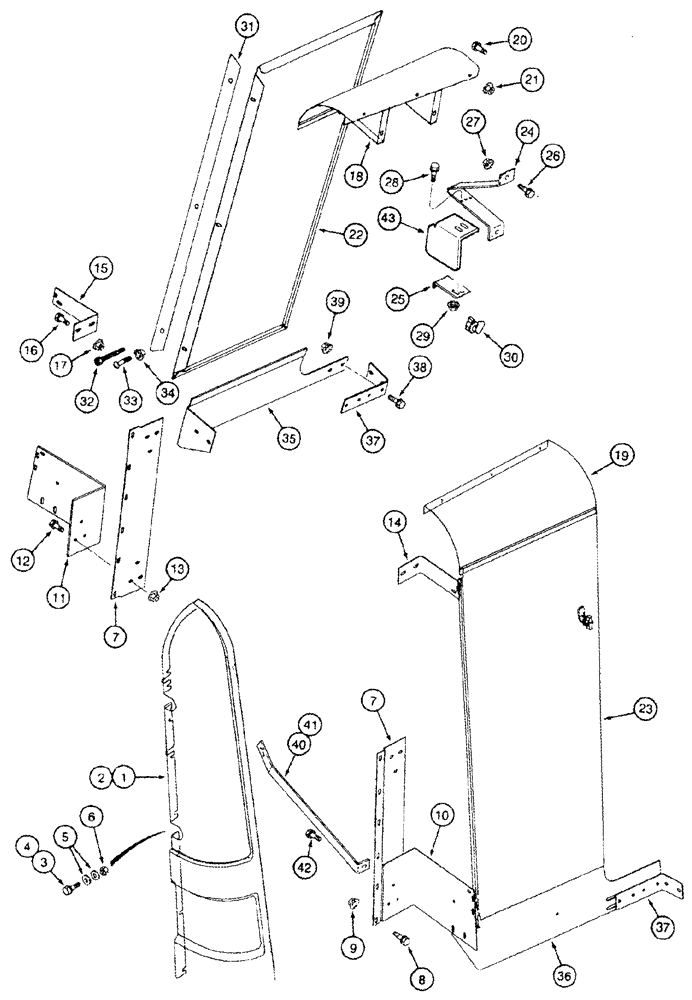

Схема запчастей Case IH 2388 - (09H-09) - GRAIN TANK, CORNER COVER PARTS (12) - CHASSIS
16
15
35
6
41
27
21
38
29
18
8
7
7
22
11
19
5
26
36
4
9
42
2
33
32
24
14
1
17
40
28
37
10
37
23
3
34
31
39
30
12
20
43
13
25

Артикул

Название

Примечание

Количество

1

115687A2

SHIELD

LH

1шт.

2

115751A2

SHIELD

RH

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

12шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

5

495-11034

WASHER,5/16", SAE

1шт.

6

231-1445

NUT,5/16"-18, GB

1шт.

7

128913A4

BRACKET

Vertical

2шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4-6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

10

141419A2

SUPPORT

Lower RH

1шт.

11

141420A2

SUPPORT

Lower LH

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

14

259234A2

SUPPORT

RH

1шт.

15

259233A1

SUPPORT

LH

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

16a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Not Illustrated

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

18

189743A3

COVER

Upper LH, Includes Decals, See Figure(s) 09H-23, Ref. 10; 09H-26, Ref. 15

1шт.

19

138880A3

SHIELD

Upper RH

1шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

10шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

22

189306A2

DOOR

LH, Includes Decals, See Figure(s) 09H-23, Ref. 7; 09H-26, Ref. 7

1шт.

23

366817A1

DOOR

RH

1шт.

24

141785A1

SUPPORT

2шт.

25

141786A3

SUPPORT

2шт.

26

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

4шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

30

182925A1

LOCK

2шт.

30

182926A1

LOCK

Australia Only

2шт.

31

128919A3

HINGE

2шт.

32

758-6

SELF-TAP SCREW,Hex Hd, M6.3 x 19

6шт.

33

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

10шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

35

128909A4

SHIELD

LH

1шт.

36

128910A5

SHIELD

RH

1шт.

37

239535A3

SUPPORT

2шт.

38

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

12шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

40

193118A1

SUPPORT

LH

1шт.

41

193120A1

SUPPORT

RH

1шт.

42

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

43

190232A2

SUPPORT

Bracket, Australia

1шт.

102251A1

CLIP

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.
