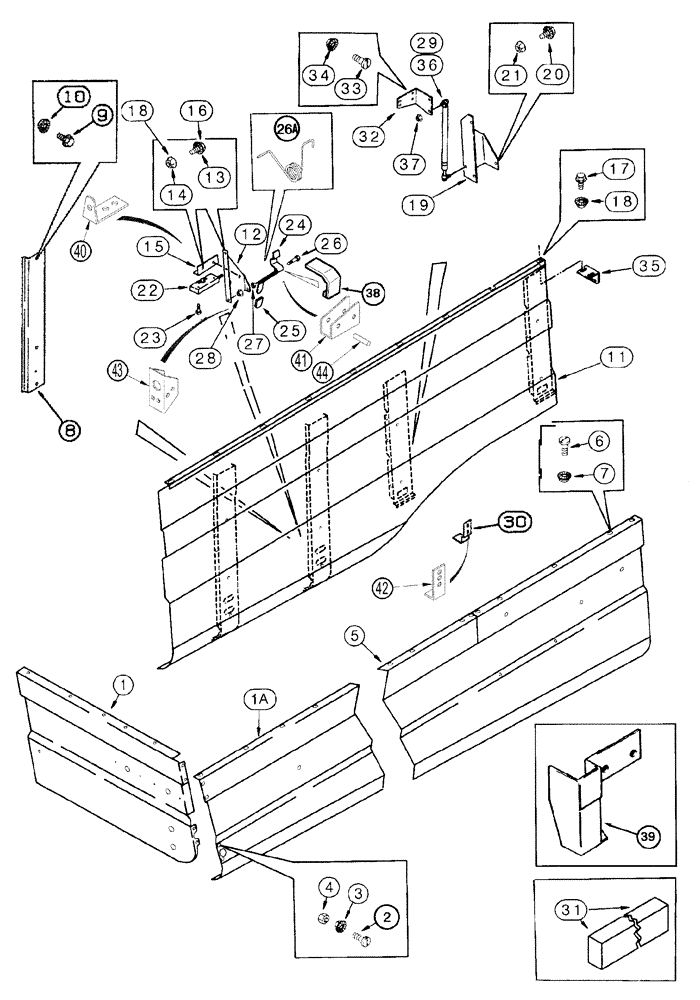

Запчасти Case IH 2388 (09H-07[01]) - DOOR - SHIELD - RIGHT HAND - BSN JJC0273000 (12) - CHASSIS

1

193812C7

SHEET

RH, Serial Range: -JJC0268799

1шт.

1

398211A1

SUPPORT

RH, Tail Lamp, Start Serial: JJC0268800

1шт.

1a

413998A1

SUPPORT

Sheet Rear Fixed RH Rear Trim, Start Serial: JJC0270500

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

4

488837C1

SPRING NUT

5/16"

3шт.

5

194625C7

PANEL

RH, Serial Range: -JC0268799

1шт.

Note: For Shielding Located Above Ref. 5, See Figure 02-06

1шт.

5

398213A1

SHIELD

RH, Serial Range: JJC0268800-JJC0270499

1шт.

Note: For Shielding Located Above Ref. 5, See Figure 02-07

1шт.

5

414000A3

DOOR

RH, Mid Hinged Side Door, Start Serial: JJC0270500

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

7шт.

6

190553A1

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5/16" x 3/4"

5шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

8

1319563C1

SUPPORT

1шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

11

139775A5

DOOR ASSY.

RH, Forward

1шт.

12

182219A1

SUPPORT

RH, Lower

1шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

15

182195A2

BRACKET

Replaces 182195A1

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

11шт.

19

182262A2

SUPPORT

1шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

22

141224A1

LATCH

2шт.

23

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

24

182204A1

LEVER

1шт.

25

176203A2

PROTECTOR

1шт.

26

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

26a

284170A1

SPRING

1шт.

27

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

29

140311A3

GAS STRUT

1шт.

30

143442A3

SUPPORT

Front

1шт.

31

187885C1

SEALING STRIP

660 mm (26"), Cut from 87281C1

1шт.

32

139771A2

SUPPORT

Upper RH

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

35

181333A2

BRACKET

1шт.

36

1340345C1

BALL STUD

BALL PIN

2шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

38

182824A1

LEVER

Australia Only

1шт.

39

184373A1

COVER

Australia Only

1шт.

40

414002A1

BRACKET

Latch Mounting

1шт.

41

432278A1

LEVER

Latch Release

1шт.

42

416559A1

STRAP

1шт.

43

432210A1

BRACKET

1шт.

44

432307A1

PIN,11.11mm OD x 43mm L

1шт.
