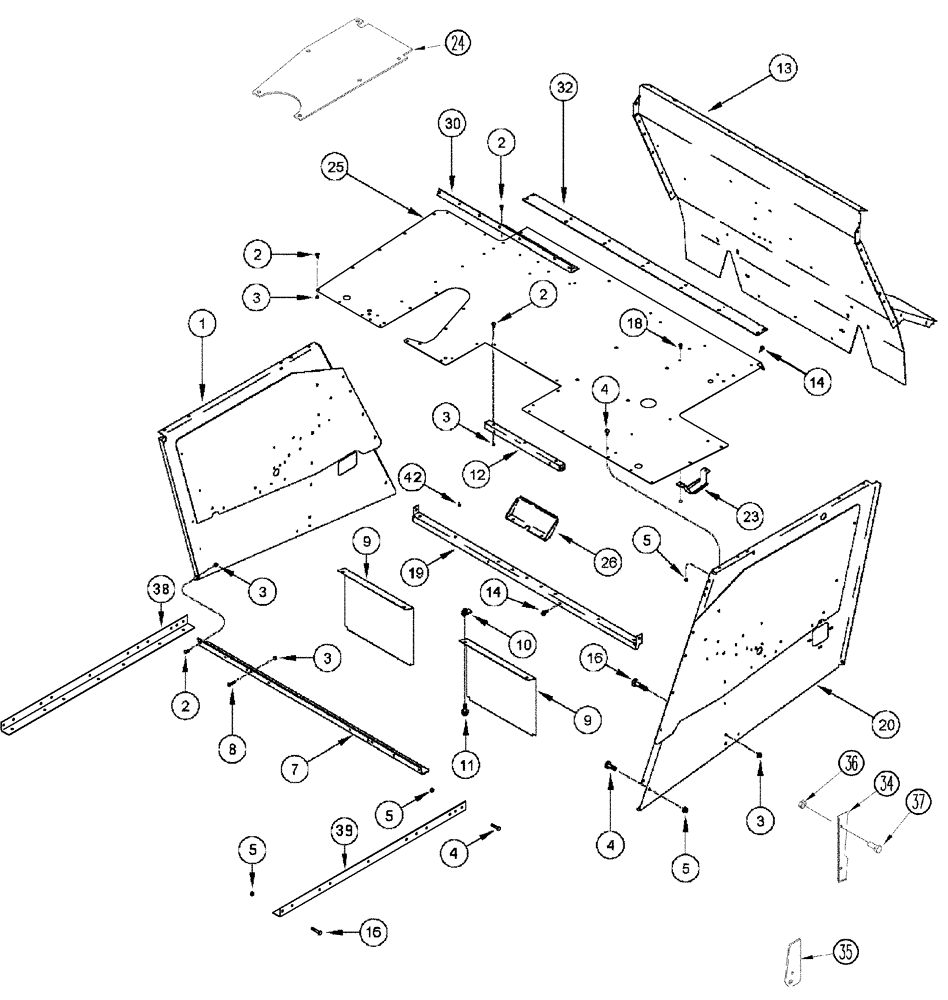

Запчасти Case IH 2388 (09H-06) - SEPARATOR - HOOD ASN JJC0268800 (12) - CHASSIS

1

387376A2

COVER

LH, Includes Decals, See Figure(s) 09H-23, Ref. 6; 09H-25(01), Ref. 8, Serial Range: JJC0268800-JJC0270499

1шт.

1

418679A1

SHEET

LH, Includes Decals, See Figure(s) 09H-23, Ref. 6; 09H-25(01), Ref. 8, Start Serial: JJC0270500

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

63шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

78шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

13шт.

5

231-5146

FLANGE NUT,3/8"-16

27шт.

7

192304C2

RAIL

Rear

1шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

9

189796A2

SUPPORT

Rear, Includes Decals, See Figure(s) 09H-23, Ref. 1; 09H-25(01), Ref. 11, Serial Range: -JJC0270499

2шт.

9

441739A1

SUPPORT

Rear, Includes Decals, See Figure(s) 09H-23, Ref. 1; 09H-25(01), Ref. 14, Start Serial: JJC0270500

2шт.

10

488837C1

SPRING NUT

5/16"

4шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

13шт.

12

186971C1

ANGLE

Rear

1шт.

13

364626A3

SUPPORT

Fuel Tank

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

17

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

9шт.

17

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

18

488837C1

SPRING NUT

5/16"

16шт.

19

358622A1

SUPPORT

1шт.

20

358349A2

SHEET

RH, Serial Range: JJC0268800-JJC0270499

1шт.

20

412623A1

SHEET

RH, Start Serial: JJC0270500

1шт.

23

380043A1

STOP

Fuel Tank

2шт.

24

441454A1

COVER

Engine

1шт.

25

445910A5

SHEET

Rear Deck, Replaces 426768A2

1шт.

26

364781A1

RETAINER

Fuel Tank

1шт.

131-137

SPRING NUT,Ret, 5/16"-18

4шт.

30

279682A1

SUPPORT

Rear Deck

1шт.

32

87412923

SHEET

Rear Deck

1шт.

33

280059A1

SEAL

Not Illustrated

1шт.

34

418095A1

SHEET

Seal, Start Serial: JJC0270500

1шт.

35

418096A1

SHEET

Seal, Start Serial: JJC0270500

1шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

, Start Serial: JJC0270500

4шт.

37

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

38

412620A1

SUPPORT

Angle, LH Separator Hood

1шт.

39

412622A1

SUPPORT

Angle, RH Separator Hood

1шт.

40

418632A1

STRAP

Spacer

2шт.

41

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

8шт.

42

410009A1

SPRING NUT

5/16", U-type

8шт.

43

1302758C1

PLUG

Clean Out Hole, Not Illustrated

1шт.
