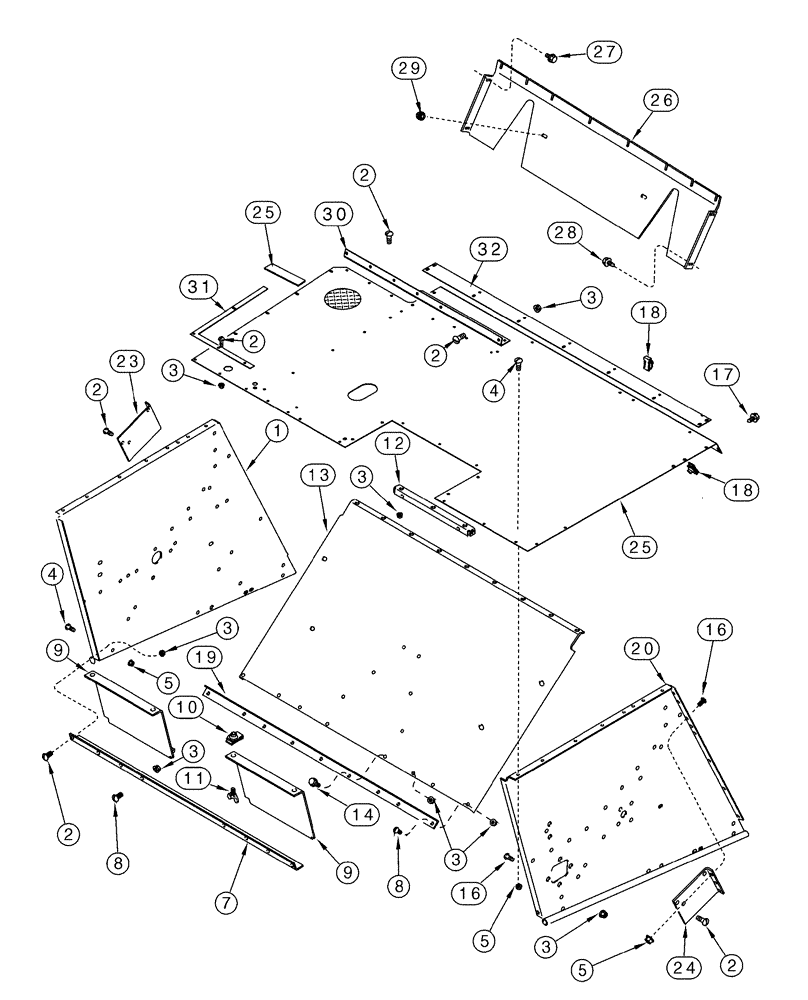

Запчасти Case IH 2388 (09H-05) - SEPARATOR - HOOD BSN JJC0268799 (12) - CHASSIS

1

189800A2

COVER

LH, Includes Decals, See Figure(s) 09H-23, Ref. 6; 09H-25(01), Ref. 8

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

6шт.

5

231-5146

FLANGE NUT,3/8"-16

12шт.

7

192304C2

RAIL

Rear

1шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

9

189796A2

SUPPORT

Rear, Includes Decals, See Figure(s) 09H-23, Ref. 1; 09H-25(01), Ref. 11

2шт.

10

488837C1

SPRING NUT

5/16"

4шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

12

186971C1

ANGLE

Rear

1шт.

13

192306C7

DEFLECTOR

Straw Discharge

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

17

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

18

488837C1

SPRING NUT

5/16"

11шт.

19

194306C1

ANGLE

1шт.

20

195620A2

SHEET

RH

1шт.

23

185104C1

SUPPORT

LH

1шт.

24

185105C1

SUPPORT

RH

1шт.

25

279683A3

SHEET

Rear Deck

1шт.

26

195144C5

SHEET

Dust Shield

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

30

279682A1

SUPPORT

Rear Deck

1шт.

31

195827A4

SUPPORT

Rear

1шт.

32

279684A1

SHEET

Rear Deck

1шт.

33

280059A1

SEAL

Not Illustrated

1шт.
