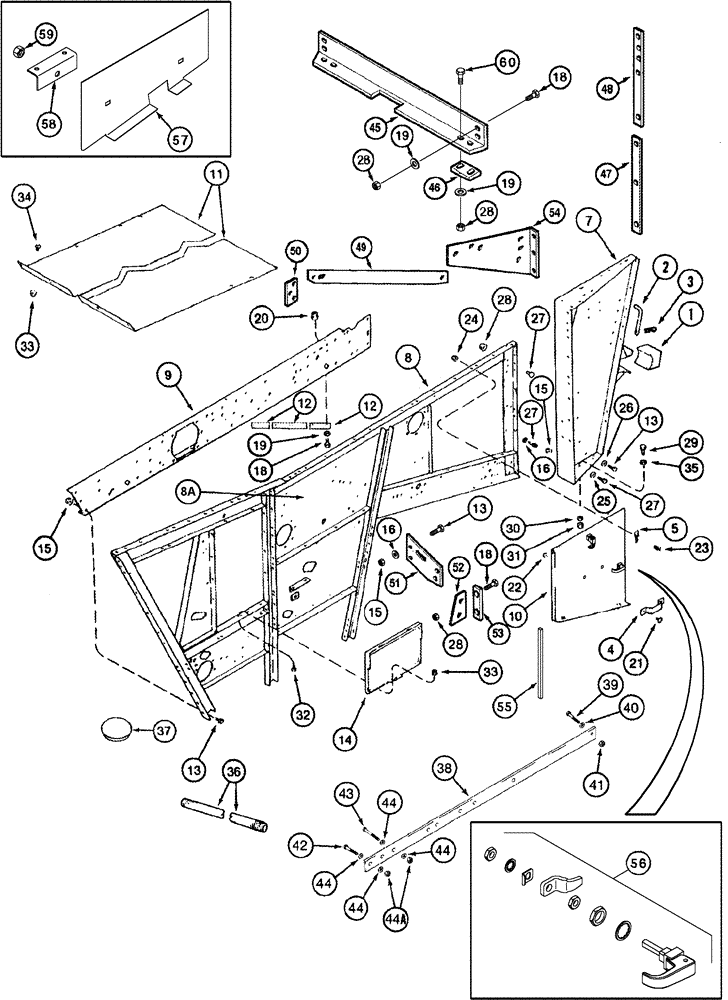

Запчасти Case IH 2388 (09H-04) - SEPARATOR - DOORS - RIGHT HAND (12) - CHASSIS

1

1989327C2

RETAINER

1шт.

1

1989327C3

RETAINER

12 Row Ready

1шт.

2

418694A1

ROD,25.4mm OD

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

160638C2

HANDLE

1шт.

5

167800C1

CLIP

, Serial Range: -JJC0272999

4шт.

5

86991204

LATCH

, Start Serial: JJC0273000

2шт.

7

136762A3

SUPPORT

RH, Serial Range: -JJC0268799

1шт.

7

398473A2

POST

RH, Start Serial: JJC0268800

1шт.

8

199616A4

SIDE PLATE

RH, Serial Range: -JJC0268799

1шт.

8

356867A2

SIDE PLATE

RH, Serial Range: JJC0268800-JJC0272999

1шт.

8

443250A1

SIDE PLATE

RH, Includes 8A, Start Serial: JJC0273000

1шт.

8a

192626C3

SHEET

RH Upper Center

1шт.

9

1317554C5

SUPPORT

RH, Main, Serial Range: -JJC0268799

1шт.

9

359827A2

SILL

RH, Main, Start Serial: JJC0268800

1шт.

10

182526C91

DOOR

RH, Front, Includes Decal, Replaces 193261C1, Serial Range: -JJC0272999

1шт.

10

86991350

DOOR

RH, Front, Start Serial: JJC0273000

1шт.

11

238463A5

SHEET

, Serial Range: -JJC0268799

1шт.

11

238463A6

SHEET

, Start Serial: JJC0268800

1шт.

12

186018C1

STRAP

1шт.

13

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

21шт.

14

87301105

DOOR

Replaces 181085C4

1шт.

15

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

23шт.

16

495-21044

WASHER,3/8"

3шт.

17

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Not Illustrated

1шт.

18

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

14шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

44шт.

20

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2", 8

2шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

23

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

24

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

25

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

4шт.

26

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

13шт.

27

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

28

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

21шт.

29

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

30

492-11062

BEARING WASHER,5/8"

2шт.

31

425-1010

NUT,5/8"-11, G5

2шт.

32

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

33

231-5146

FLANGE NUT,3/8"-16

3шт.

34

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

35

493-21065

LOCK WASHER,Int Tooth, 5/8"

2шт.

36

1319395C1

CONDUIT

12-1/8", Cut from 1262114C1

1шт.

37

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

38

198572A1

STRAP

12 Row Ready

1шт.

Rice Combine

1шт.

39

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

12 Row Ready

1шт.

Rice Combine

1шт.

40

496-41041

WASHER,13/32" x 1 1/8" x .134"

12 Row Ready

2шт.

Rice Combine

1шт.

41

429-106

NUT,3/8"-16, G8

12 Row Ready

1шт.

Rice Combine

1шт.

42

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

12 Row Ready

6шт.

Rice Combine

1шт.

43

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

12 Row Ready

2шт.

Rice Combine

1шт.

44

496-21053

WASHER,17/32" x 1 1/16" x .134"

12 Row Ready

16шт.

Rice Combine

1шт.

44a

429-108

NUT,1/2"-13, G8

12 Row Ready

8шт.

Rice Combine

1шт.

45

237623A1

SUPPORT

Front

1шт.

46

236509A1

SPACER

1шт.

47

236935A1

PLATE

Lower RH

1шт.

48

236934A1

PLATE

Upper RH

1шт.

49

236727A1

PLATE

RH

1шт.

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

1шт.

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

50

236728A1

PLATE

1шт.

51

238987A1

PLATE

LH Front

1шт.

52

239289A1

SPACER

LH

1шт.

53

239001A1

PLATE

1шт.

54

236317A1

SUPPORT

RH

1шт.

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

55

86991663

DOOR SEAL

Seal, 362 mm (14-1/4")

1шт.

56

86991204

LATCH

2шт.

57

87422278

SHEET

Air Flow Restriction

1шт.

58

86985754

SUPPORT

Support

2шт.

59

131-137

SPRING NUT,Ret, 5/16"-18

2шт.

60

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.
