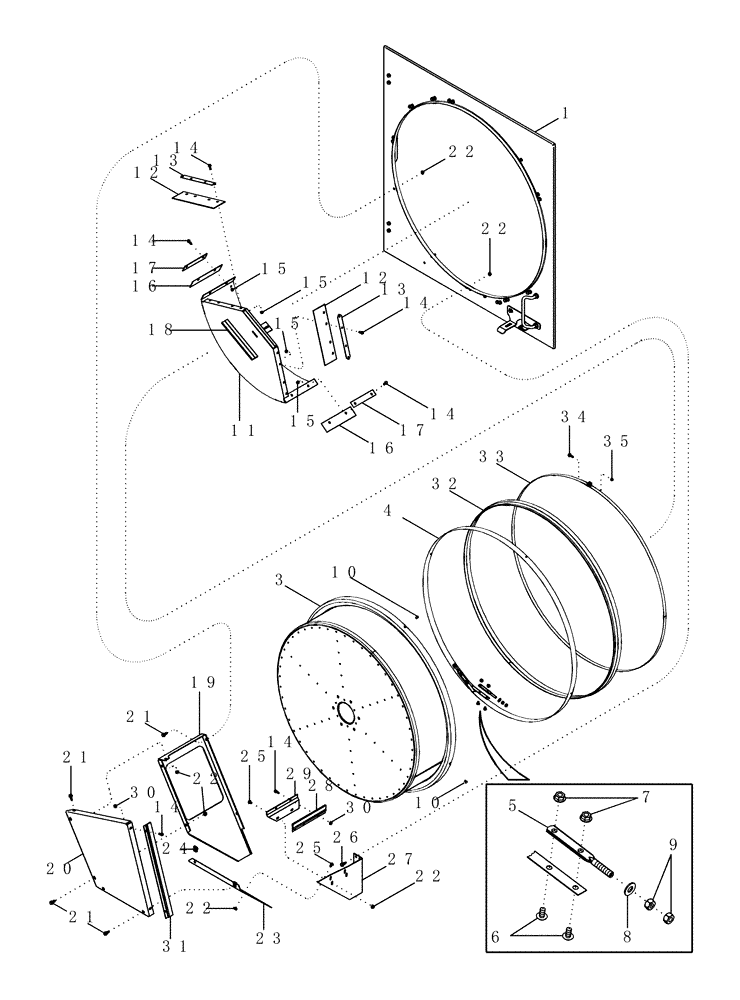

Запчасти Case IH 2388 (02-11[01]) - METAL ROTARY AIR SCREEN ASSY, WITH VERTICAL DIRT CHUTE AND BRUSHES - ASN JJC0273000 (01) - ENGINE

1

87413638

DOOR

Cooler Access, See Figure 02-10

1шт.

2

REF

INSTRUCTION

Screen Assy Rotary Air, Includes 3 - 10

1шт.

3

87418044

SCREEN

Rotary Air

1шт.

4

87417475

BAND

Assy

1шт.

5

87413544

BOLT

Drawbolt Ring

2шт.

6

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

8

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

3шт.

11

87412949

SHEET

1шт.

12

87408561

SEAL

2шт.

13

87408560

BAR

2шт.

14

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

16шт.

15

231-4144

NUT,1/4"-20, GB

12шт.

16

1977166C1

SEAL

Baffle Rear

2шт.

17

1977164C1

SEALING STRIP

2шт.

18

87413136

BRUSH, COMMUTATOR

BRUSH Inner

1шт.

19

87412286

SUPPORT

Dirt Chute Rear

1шт.

20

87412289

PANEL

Upper

1шт.

21

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

13шт.

23

87412288

PANEL

Lower

1шт.

24

488837C1

SPRING NUT

5/16", Speed

2шт.

25

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

6шт.

26

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

27

87412287

SUPPORT

Dirt Chute Front

1шт.

28

414883A2

BRUSH

1шт.

29

87413935

SUPPORT

Horizontal

1шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

31

87414124

BRUSH, COMMUTATOR

BRUSH Angled

1шт.

32

86976657

SEAL

Rotary Screen

1шт.

33

86976658

CLAMP,1060mm

1шт.

34

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

35

231-1444

NUT,1/4"-20, GB

1шт.
