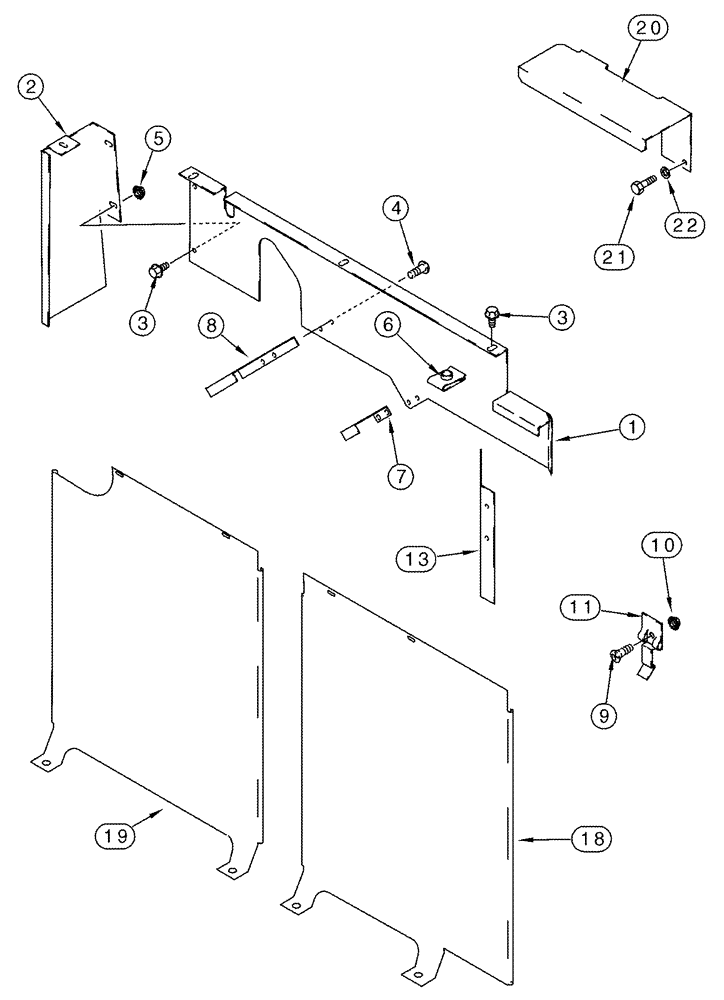

Запчасти Case IH 2388 (09H-02) - DEFLECTORS, ENGINE - BSN JJC0273000 (12) - CHASSIS

1

198537A1

DEFLECTOR

Main

1шт.

2

254730A1

DEFLECTOR

Vertical Rear

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

11шт.

6

131-636

SPRING NUT,J, Ret, 5/16"-18

3шт.

7

188198A1

DEFLECTOR

RH

1шт.

8

198538A1

DEFLECTOR

Center

1шт.

9

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

6шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

6шт.

11

167800C1

CLIP

6шт.

13

254732A3

DEFLECTOR

1шт.

18

283556A1

GUARD

RH

1шт.

19

199288A2

GUARD

LH, Center

2шт.

20

191196A2

GUARD

Starter

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

22

495-11034

WASHER,5/16", SAE

2шт.
