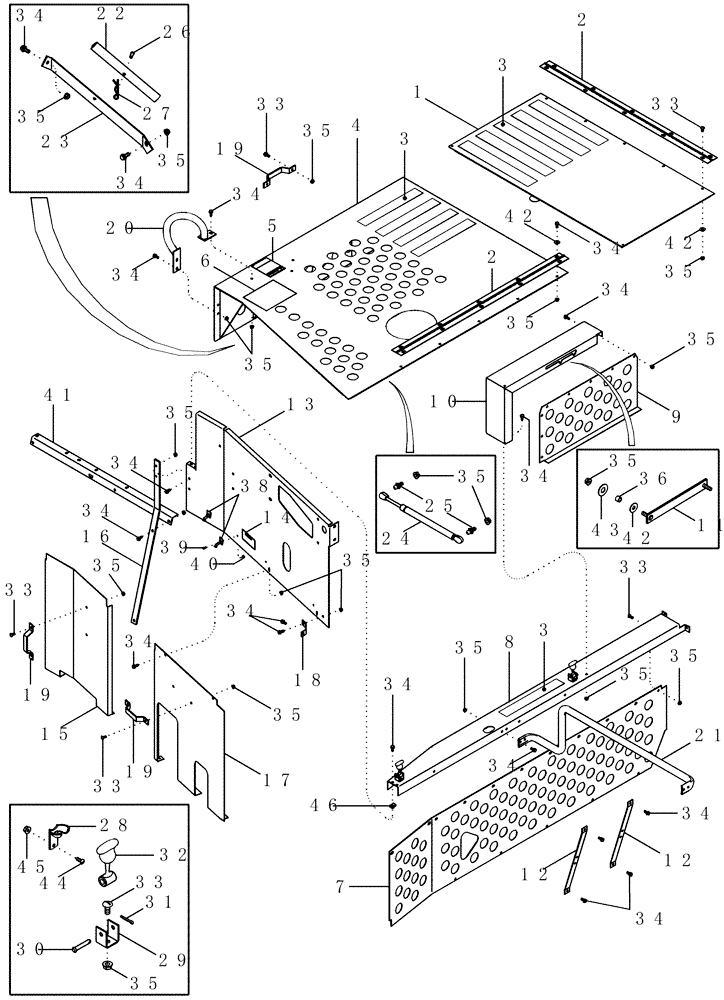

Запчасти Case IH 2388 (09H-01[02]) - ENGINE SHIELDS AND SERVICE DECK - ASN JJC0273000 (12) - CHASSIS

1

442187A3

SUPPORT

Door Support

1шт.

2

442774A2

HINGE

2шт.

3

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25") x 51 mm (2")

8шт.

4

87412593

DOOR

Engine Cover

1шт.

5

181597A1

WARNING DECAL

1шт.

6

435798A1

DECAL

Top Lube Fittings

1шт.

7

443460A4

SHIELD

Engine Shield

1шт.

8

444053A3

CHANNEL

Door and Hood Support, LH

1шт.

9

451545A2

SHIELD

Rotor Drive Cover

1шт.

10

444055A2

CHANNEL

Upper

1шт.

11

1302413C1

PROP

Door

1шт.

12

451648A2

SUPPORT

Engine Cover

2шт.

13

442178A4

SHIELD

Rear

1шт.

14

173881C1

DECAL

Important, Clean Engine

1шт.

15

444682A2

SHIELD

Lower Rear

1шт.

16

87422854

SUPPORT

1шт.

17

86985913

SHIELD

Lower Rear

1шт.

18

444680A2

BRACKET

Engine Shield

1шт.

19

160638C2

HANDLE

3шт.

20

445183A2

HANDRAIL

Service Deck

1шт.

21

447180A2

HANDRAIL

Service Deck

1шт.

22

448354A1

BRACKET

Cylinder Lockout

1шт.

23

445549A1

SUPPORT

Dearation Tank Support

1шт.

24

446346A1

GAS STRUT

Engine Door Lift

2шт.

25

1340345C1

BALL STUD

BALL PIN

4шт.

26

439-1420

HEADED PIN,1/4" x 1 1/4"

1шт.

27

473443R1

COTTER PIN

5/16"

1шт.

28

L105124

LATCH HOOK

2шт.

29

188103C2

BRACKET

Hook Anchor

2шт.

30

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

2шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

32

494307C1

LATCH

2шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

25шт.

34

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

37шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

61шт.

36

568257R1

SPACER,1/2" Tube x 3/8"

2шт.

38

167800C1

CLIP

4шт.

39

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

40

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

41

442193A1

SUPPORT

Engine Deck Rear

1шт.

42

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11шт.

43

495-81024

WASHER,17/32" x 1 1/4" x .060"

1шт.

44

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

2шт.

45

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

46

488837C1

SPRING NUT

5/16", Speed

2шт.

47

231-5315

FLANGE NUT,Flg, 5/16"-18

1шт.
