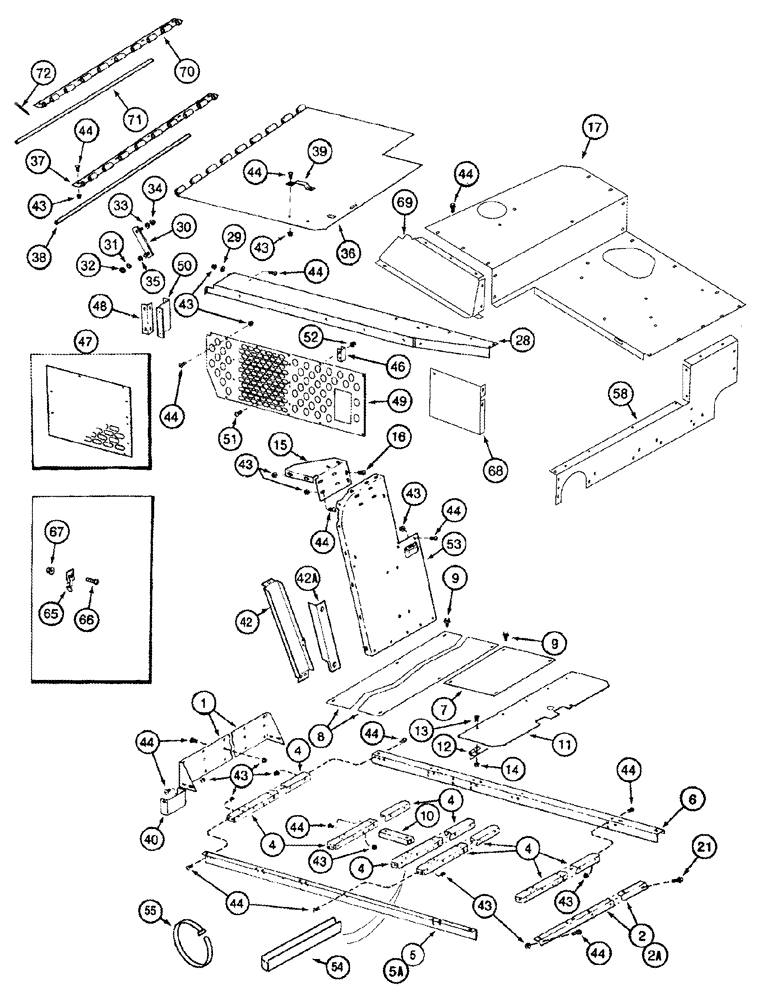

Запчасти Case IH 2388 (09H-01[01]) - ENGINE SHIELDS AND SERVICE DECK - BSN JJC0273000 (12) - CHASSIS

1

193435C3

SUPPORT

1шт.

2

1541891C2

ANGLE

Rear, Serial Range: -JJC0198338

1шт.

2a

304310A1

SUPPORT

Rear, Start Serial: JJC0198339

1шт.

3

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Not Illustrated

1шт.

4

192959C6

SUPPORT

5шт.

5

143346A1

SUPPORT

LH, Serial Range: -JJC0198338

1шт.

5a

304309A1

SUPPORT

LH, Start Serial: JJC0198339

1шт.

6

192961C7

SUPPORT

RH

1шт.

7

1979827C2

PLATE

1шт.

8

1979828C2

PLATE

Front

1шт.

9

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

10шт.

10

1979830C1

SUPPORT

1шт.

11

1977155C3

DOOR

3шт.

12

186695C1

HINGE

3шт.

13

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

30шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

30шт.

15

1330481C2

SUPPORT

LH Rear

1шт.

16

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

17

281104A3

COVER

Includes Decals, See Figure(s) 09H-23, Ref. 12; 09H-25(01), Ref. 10

1шт.

18

303576A2

SUPPORT

Not Illustrated

1шт.

19

480523R1

HAIR PIN COTTER

Not Illustrated

1шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Not Illustrated

3шт.

21

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

25

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

Not Illustrated

2шт.

26

495-81002

WASHER,3/8"

7/16 x 1-3/8 x 5/64, Not Illustrated

2шт.

28

257406A2

SUPPORT

1шт.

29

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

1шт.

30

1302413C1

PROP

2шт.

31

568257R1

SPACER,1/2" Tube x 3/8"

1шт.

32

495-81024

WASHER,17/32" x 1 1/4" x .060"

1шт.

33

495-81117

WASHER,.344" x 1" x .120"

1шт.

34

231-5315

FLANGE NUT,Flg, 5/16"-18

1шт.

35

567532R1

WASHER

21/64 x 1/2 x 5/32

1шт.

36

277602A2

DOOR

Replaces 277602A1

1шт.

36a

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25") x 51 mm (2"), Not Illustrated

5шт.

37

229150A2

HINGE

No Longer Used, Order 304519A1, See Ref. 70

1шт.

38

229812A1

ROD

No Longer Used, Order 304521A1, See Ref. 71

1шт.

39

160638C2

HANDLE

1шт.

40

186105C1

CHANNEL

Upper, LH Rear

1шт.

41

143347A1

LATCH

Australia Only, Not Illustrated

1шт.

42

237714A1

SUPPORT

Rear

1шт.

42a

237716A1

BRACKET

1шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

44

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

45

188098C2

BRACKET

Not Illustrated

1шт.

46

196438C1

SUPPORT

Front

1шт.

47

1319860C1

PLATE

1шт.

48

1319696C1

BRACKET

2шт.

49

1345275C1

SHIELD

1шт.

50

196446C2

ANGLE

1шт.

51

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

6шт.

52

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

53

1330482C3

SUPPORT

LH Rear

1шт.

54

1327979C1

MOLDING

Cut 152 mm (6") from 1330108CX

1шт.

55

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Replaces 702093C1

1шт.

58

282607A1

SUPPORT

1шт.

59

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Not Illustrated

4шт.

60

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Not Illustrated

4шт.

61

495-81024

WASHER,17/32" x 1 1/4" x .060"

Not Illustrated

2шт.

62

495-81117

WASHER,.344" x 1" x .120"

Not Illustrated

2шт.

63

231-5315

FLANGE NUT,Flg, 5/16"-18

Not Illustrated

2шт.

64

567532R1

WASHER

Not Illustrated

3шт.

65

167800C1

CLIP

2шт.

66

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

67

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

68

254731A1

DEFLECTOR

1шт.

69

277642A1

SHEET

Engine, Side

1шт.

70

304519A1

HINGE

1шт.

71

304521A2

ROD

1шт.

72

432-816

COTTER PIN,1/8" x 1"

1шт.
