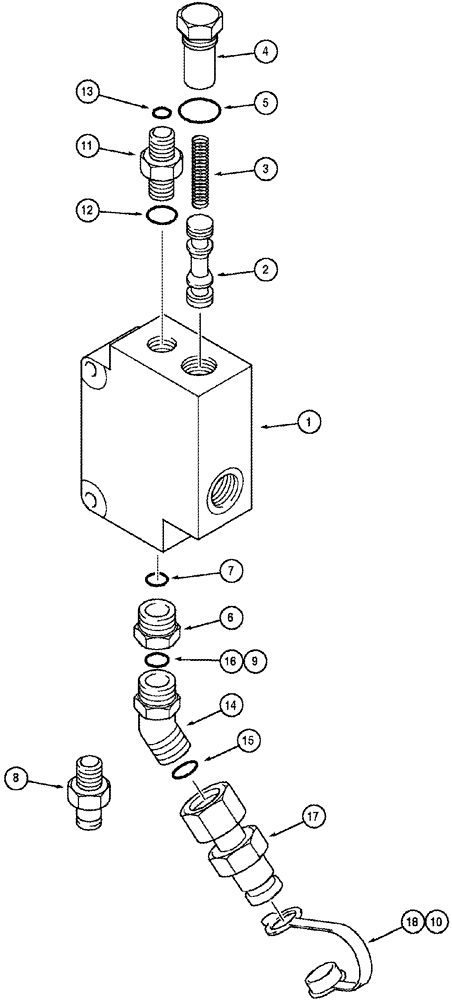

Запчасти Case IH 2388 (05-41) - VALVE ASSY - STEERING PRIORITY (11) - TRACKS/STEERING

114851A2

VALVE

Steering, Includes 1 - 10D

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

192146A1

SPRING

1шт.

4

192145A1

PLUG

Includes 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

192149A1

FITTING

Includes 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

1541849C1

COUPLING

Diagnostic, Includes 9, 10

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

H434163

DUST CAP

1шт.

230984A1

KIT

Screen and Orifice, Includes 10A - 10D

1шт.

10a

NSS

NOT SOLD SEPARAT

Orifice, Spool, Not Illustrated

1шт.

10b

NSS

NOT SOLD SEPARAT

Orifice, Spool, Not Illustrated

1шт.

10c

NSS

NOT SOLD SEPARAT

Screen, Spool, Not Illustrated

2шт.

10d

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

128328A1

FITTING

With Orifice Check Valve, Includes 12, 13

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 15, 16

1шт.

15

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

190117A1

COUPLING

Diagnostic, Includes 18

1шт.

18

H434163

DUST CAP

1шт.
