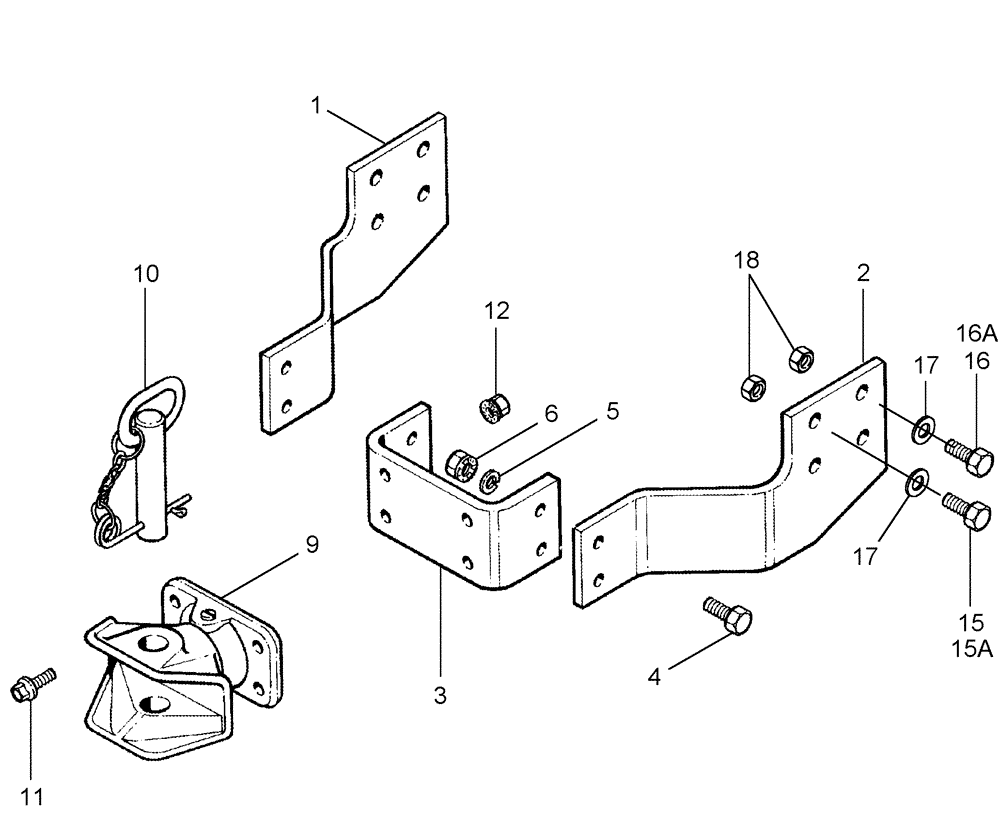

Запчасти Case IH 2388 (05-39) - HITCH, TRAILER - BSN JJC0273000 (11) - TRACKS/STEERING

1

1311092C4

SUPPORT

Trailer Hitch, LH

1шт.

92 to 120 Inch Adjustable Axle

1шт.

1

1979841C2

SUPPORT

Trailer Hitch, LH

1шт.

With Power Guide Axle

1шт.

2

1311093C4

SUPPORT

Trailer Hitch, RH

1шт.

92 to 120 Inch Adjustable Axle

1шт.

2

1979842C2

SUPPORT

Trailer Hitch, RH

1шт.

With Power Guide Axle

1шт.

3

1311094C1

BRACKET

1шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

5

492-11062

BEARING WASHER,5/8"

4шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

9

1311089C91

HOOK

Includes 10

1шт.

10

1311090C1

PIN

No Longer Available, Order 1311089C91

1шт.

11

409-7832

BOLT,Hex Flg, 1/2" - 13 x 2", Spcl

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Not Illustrated

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Not Illustrated

2шт.

15

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

Without Steer Axle Weight Support

1шт.

15a

326-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

2шт.

With Steer Axle Weight Support

1шт.

16

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

Without Steer Axle Weight Support

1шт.

16a

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

With Steer Axle Weight Support

1шт.

17

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

4шт.

18

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

4шт.
