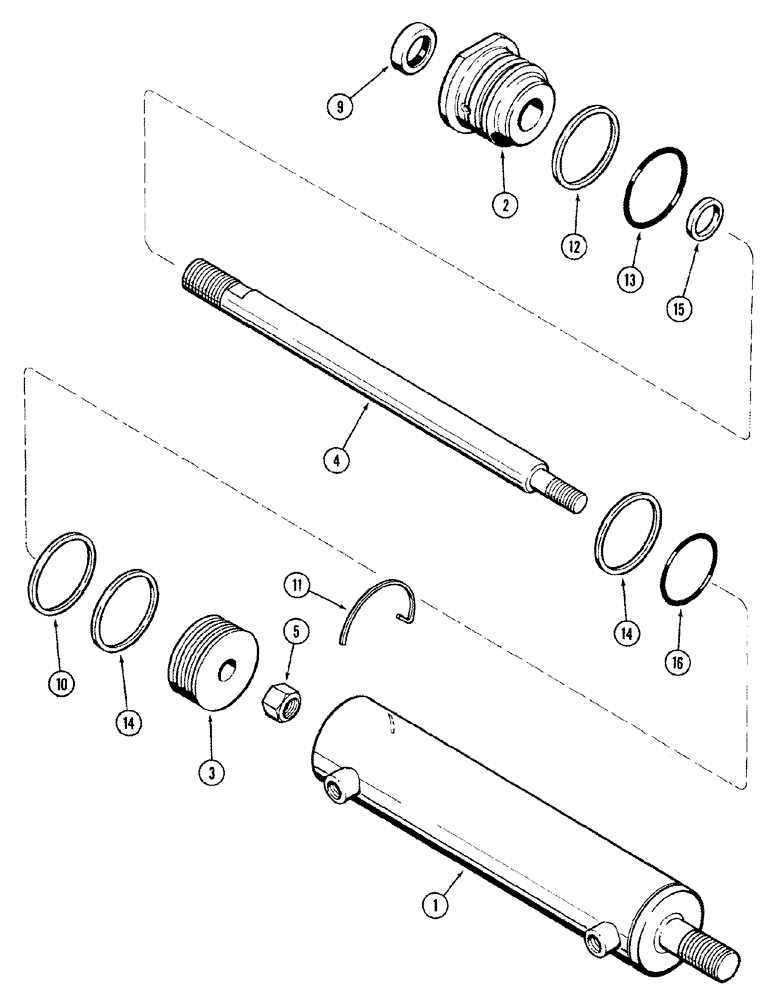

Запчасти Case IH 2388 (05-32) - CYLINDER ASSY - STEERING - POWER GUIDE AXLE- 12 ROW READY ASN JJC0268800 (11) - TRACKS/STEERING

127913C93

STEERING CYLINDER

57 ID x 229 mm strk, Includes 1 - 16

1шт.

1

127916C1

CYLINDER

Body

1шт.

2

127919C1

GLAND

1шт.

3

127921C1

PISTON

1шт.

4

127920C2

PISTON ROD

1шт.

5

232-46310

LOCK NUT,5/8"-11, GC

1шт.

73661C92

SEAL KIT

Includes 9 - 16

1шт.

9

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

Piston Rod

1шт.

10

127931C2

RING

Piston

1шт.

11

127922C2

RETAINING WIRE

Retaining

1шт.

12

127933C1

BACK-UP RING

Ring, Backup

1шт.

13

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

Packing Gland

1шт.

14

127932C1

BEARING WASHER

Backup

2шт.

15

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

Teflon, Piston, 1 in

1шт.

16

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

Piston

1шт.
