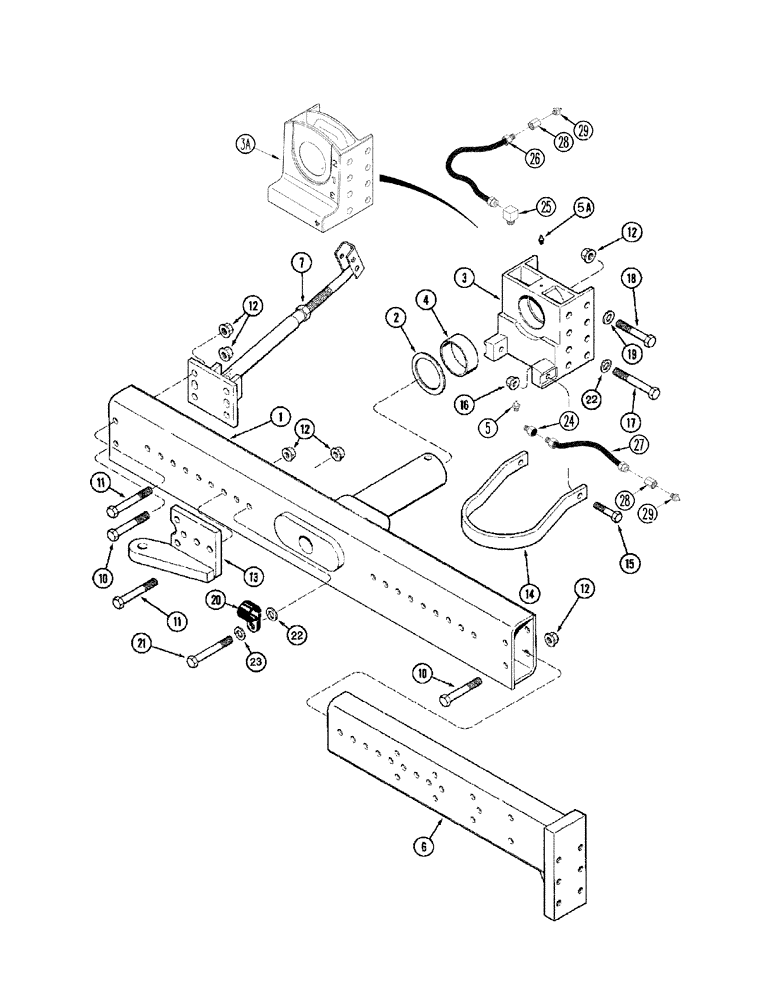

Запчасти Case IH 2388 (05-28) - AXLE, STEERING - EXTENSIONS - POWER GUIDE AXLE - SINGLE STEERING CYLINDER, ASN JJC0270500 (11) - TRACKS/STEERING

1

413204A1

AXLE

Adjustable, Serial Range: 108-144"

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

4шт.

3

186599C94

SUPPORT

Axle Pivot, Includes 4

1шт.

With Hillside Option

1шт.

3a

386235A2

SUPPORT

Axle Pivot, Includes 4

1шт.

Without Hillside Option

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

6

1968992C1

AXLE

, Serial Range: 108-144"

2шт.

7

REF

INSTRUCTION

Support Assy, See Figure 05-25, Ref. 16 - 24

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

10шт.

11

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

4шт.

12

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

13

1968993C1

SUPPORT

1шт.

14

1979114C1

STRAP

Tow, 51 mm Drop

1шт.

Use with 186599C94

1шт.

15

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

Use with 186599C94

1шт.

16

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

Use with 186599C94

1шт.

17

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

3шт.

18

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

6шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

5шт.

20

195618A1

CLAMP

1-7/8" ID

1шт.

21

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.

22

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

3шт.

23

495-11081

WASHER,3/4", SAE

1шт.

24

219-418

ADAPTER,1/4"-1/8 NPTF

Hose

1шт.

25

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1шт.

26

428285A1

FLEXIBLE HOSE

Grease, 1186 mm (46-3/4")

1шт.

27

428853A1

FLEXIBLE HOSE

Grease, 1282 mm (50")

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1/8"

2шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
