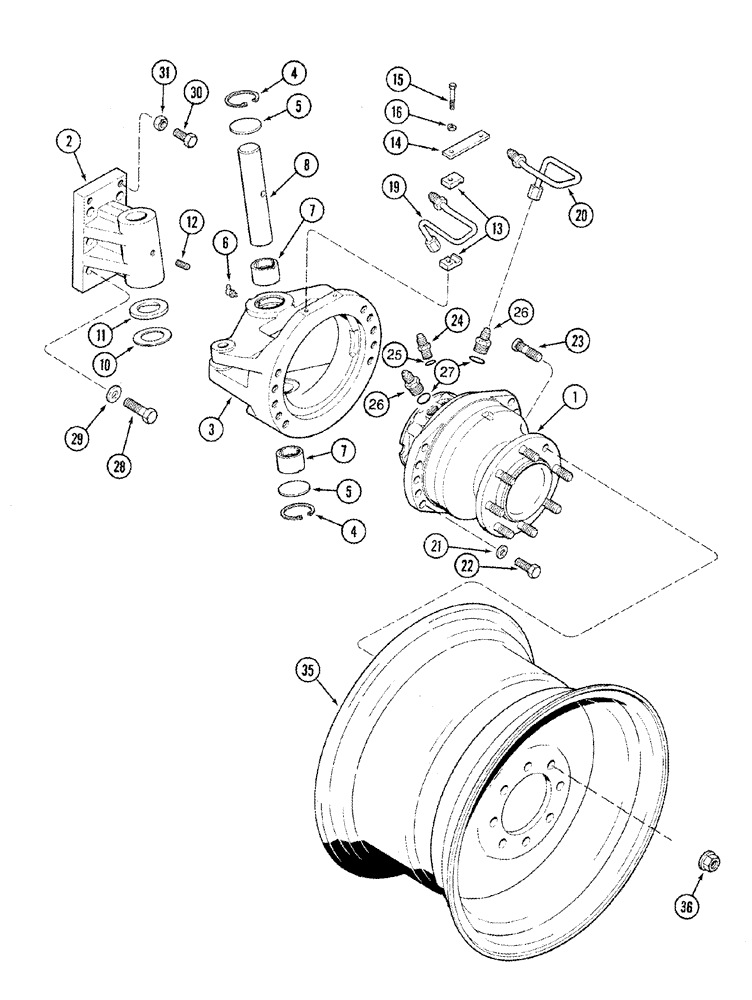

Запчасти Case IH 2388 (05-24) - MOTOR, WHEEL - KING PIN - POWER GUIDE AXLE - AXLE DRIVE WHEEL (11) - TRACKS/STEERING

1

121436A1

MOTOR, HYDRAULIC

Wheel Drive, Eight Hole Pattern, See Figure 05-35, Serial Range: -JJC0275338

2шт.

87300716R

REMAN-HYDROSTAT MOTO

2388 - CASE IH AXIAL-FLOW COMBINE BSN JJC0276540 - 1/98-8/04, Reman For New P/N's 121436A1 & 87300716

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

Corn and Grain Combine

1шт.

1

87300716

MOTOR, HYDRAULIC

Wheel Drive, See Figure 05-35, Start Serial: JJC0275339

2шт.

87300716R

REMAN-HYDROSTAT MOTO

2388 - CASE IH AXIAL-FLOW COMBINE BSN JJC0276540 - 1/98-8/04,

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

1

REF

INSTRUCTION

Motor Assy, Wheel Drive, Ten Hole Pattern, See Figure 05-36

2шт.

Rice Combine

1шт.

2

1970138C1

HOUSING

King Pin

2шт.

3

1970136C1

HOUSING

RH, Includes (2) 1970142C1, Ref. 7

1шт.

Corn and Grain Combine

1шт.

3

1347195C1

FRAME

RH, Includes (2) 1970142C1, Ref. 7, Serial Range: -JJC0270499

1шт.

Rice Combine

1шт.

3

431231A1

FRAME

RH, Incl. (2) 1970143C1, Ref 8, Start Serial: JJC0270500

1шт.

Rice Combine

1шт.

3

406799A1

FRAME

RH, 12 Row Ready, Incl. (2) 1970142C1, Ref 7

1шт.

Corn and Grain Combine

1шт.

3

1970354C1

FRAME

LH, Incl. (2) 1970142C1, Ref 7

1шт.

Corn and Grain Combine

1шт.

3

1347196C1

FRAME

LH, Incl. (2) 1970142C1, Ref 7

1шт.

Rice Combine

1шт.

4

100-21244

SNAP RING,2.44", Int, #244

4шт.

5

41-3040

PLUG,Exp, 2 1/2"

4шт.

6

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

7

1970142C1

BUSHING

4шт.

8

1970143C1

PIN,47.63mm OD x 231.78mm L

King

2шт.

10

1970381C1

THRUST WASHER

Steel

1-2шт.

11

1970382C1

THRUST WASHER

Bronze

4шт.

12

83-15020

SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"

2шт.

13

1970148C1

CLAMP

8шт.

Corn and Grain Combine

1шт.

14

1970150C1

PLATE

2шт.

Corn and Grain Combine

1шт.

15

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

4шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

19

1970146C1

HYD TUBE

Pressure, RH Rear, LH Front

2шт.

Corn and Grain Combine

1шт.

19

1347179C1

TUBE

Pressure, RH Rear, LH Front

2шт.

Rice Combine

1шт.

20

1970147C1

HYD TUBE

Pressure, LH Rear, RH Front

2шт.

Corn and Grain Combine

1шт.

20

1347180C1

TUBE

Pressure, LH Rear, RH Front

2шт.

Rice Combine

1шт.

21

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

20шт.

Corn and Grain Combine

1шт.

92 - 120 Inch Power Guide Axle

1шт.

21

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

16шт.

Rice Combine

1шт.

120 - 144 Inch Power Guide Axle

1шт.

22

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

20шт.

Corn and Grain Combine

1шт.

92 - 120 Inch Power Guide Axle

1шт.

22

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

16шт.

Rice Combine

1шт.

120 - 144 Inch Power Guide Axle

1шт.

23

1970151C1

STUD

Included with Ref. 1

16шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 27

4шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

12шт.

29

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

12шт.

30

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

31

329-1410

JAM NUT,Jam, 5/8"-11, G8

4шт.

35

1970153C3

WHEEL ASSY

16 x 26, For 16.9 x 26" Tire, For 18.4 x 16" Tire

2шт.

35

1979866C1

WHEEL

16 x 26, For 18.4 x 26" Tire, 10 mounting holes

2шт.

35

257875A2

WHEEL ASSY

600/65-R28, For 600/65-R28" Tire, 8 Hole Pattern

2шт.

Corn and Grain Combine

1шт.

35

257878A2

WHEEL ASSY

For 600/65-R28" Tire, 10 Hole Pattern

2шт.

Rice Combine

1шт.

35

220201A1

WHEEL ASSY

For 18.4 x 30" Tire, Ten Hole Pattern

2шт.

Rice Combine

1шт.

36

1541701C1

FLANGE NUT

1шт.

37

179482C1

VALVE STEM

Tire, Not Illustrated

2шт.

38

407184C1

VALVE STEM

Core, Tire, Not Illustrated

2шт.

39

359846A1

PLUG

Tire Valve Hole, Not Illustrated

2шт.

40

181917A2

DECAL

Wheel Bolt Torque, See Figure 9H-25, Ref 6

2шт.
