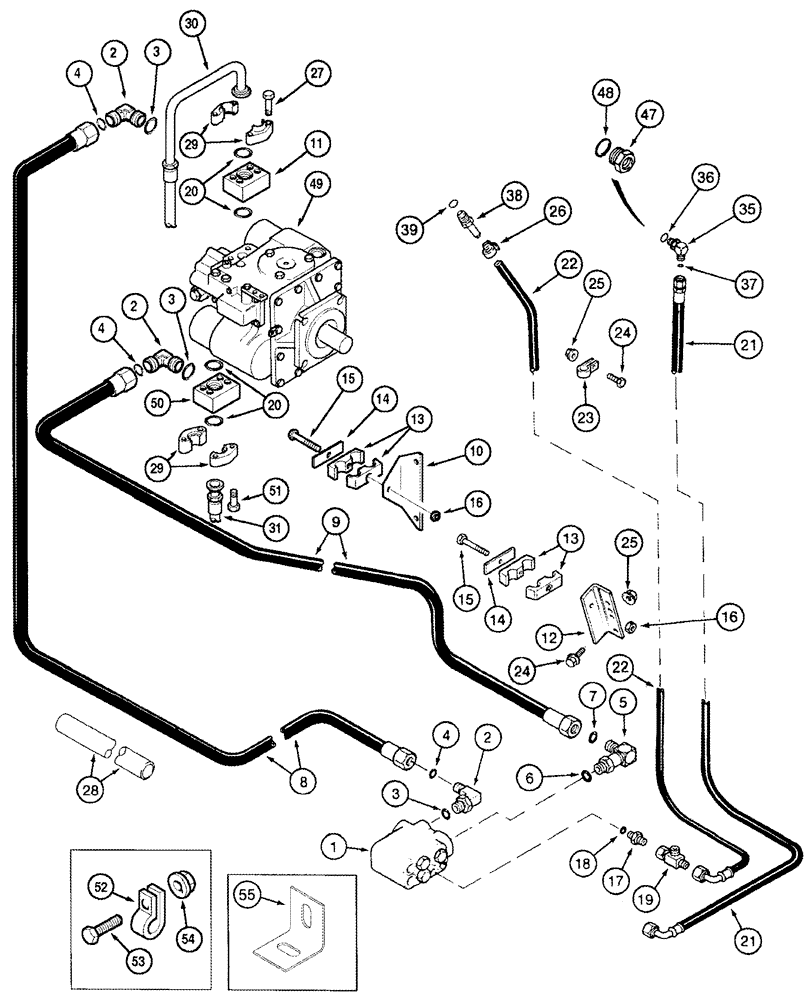

Запчасти Case IH 2388 (05-22) - HYDRAULICS - VALVE, SELECTOR - POWER GUIDE AXLE (11) - TRACKS/STEERING

1

REF

INSTRUCTION

Valve, Control, See Figure(s) 05-33, 05-34

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 3, 4

1шт.

2

409733A1

ELBOW

1-3/16 fc x 1-1/16 Or, Long fc End, Includes 3, 4

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Incl 6, 7

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

227643A1

HOSE,19.05mm ID x 3050mm L

3050 mm (120-1/8"), Supply Reverse

1шт.

9

227642A1

HOSE,19.05mm ID x 2540mm L

2540 mm (100"), Supply Forward

1шт.

10

235195A1

SUPPORT

Upper Hose Clamp

1шт.

11

226646A1

BLOCK

Adapter Manifold

1шт.

12

1324467C2

ANGLE

1шт.

13

1324473C1

CLAMP

2шт.

14

1324469C1

PLATE

2шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

2шт.

16

232-4115

LOCK NUT,5/16"-18, GC

2шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes 18

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

20

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

21

240455A1

HOSE

3340 mm (131-1/2"), Flush Supply, For Attaching Parts, See Figure 05-19

1шт.

22

240456A1

HOSE,12.7mm ID x 3560mm L

3560 mm (140-1/4"), Flush Return, Serial Range: -JJC0272999

1шт.

22

406593A1

HOSE,12.7mm ID x 3470mm L

3470 mm (136-5/8"), Flush Drain, Start Serial: JJC0273000

1шт.

23

L50062

SHIN

1шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

25

231-5345

FLANGE NUT,Flg, 5/16"-18

3шт.

26

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

27

413-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

4шт.

28

240575A1

HOSE PROTECTION

1524 mm (60")

2шт.

28

1989500C1

SLEEVE

12 Row Ready

2шт.

29

S97224

CLAMP

1", Split Flange

4шт.

30

227641A2

HOSE

4055 mm (159-5/8"), Reverse, Serial Range: Pump-Motor

1шт.

31

227640A1

HOSE,25.4mm ID x 3455mm L

3455 mm (136"), Forward, Serial Range: Pump-Motor

1шт.

35

135485A1

ELBOW

Includes Orifice

1шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

38

217-397

FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB

Incl 39

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

47

196443A1

REDUCER

7/16" fem x 7/8" Or, Includes 48

1шт.

Rice Combine

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

REF

INSTRUCTION

Pump, Hydrostatic, See Figure(s) 06-09 - 06-13

1шт.

Note: See Figure 08-05 oil cooler system with Power Guide Axle.

1шт.

50

226647A1

ADAPTER

Adapter Manifold Block

1шт.

51

413-788

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

4шт.

52

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

7/8" ID

1шт.

52

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

52

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

2шт.

53

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

55

1301560C2

STIFFENER

Clamp Mounting, Rear

1шт.
