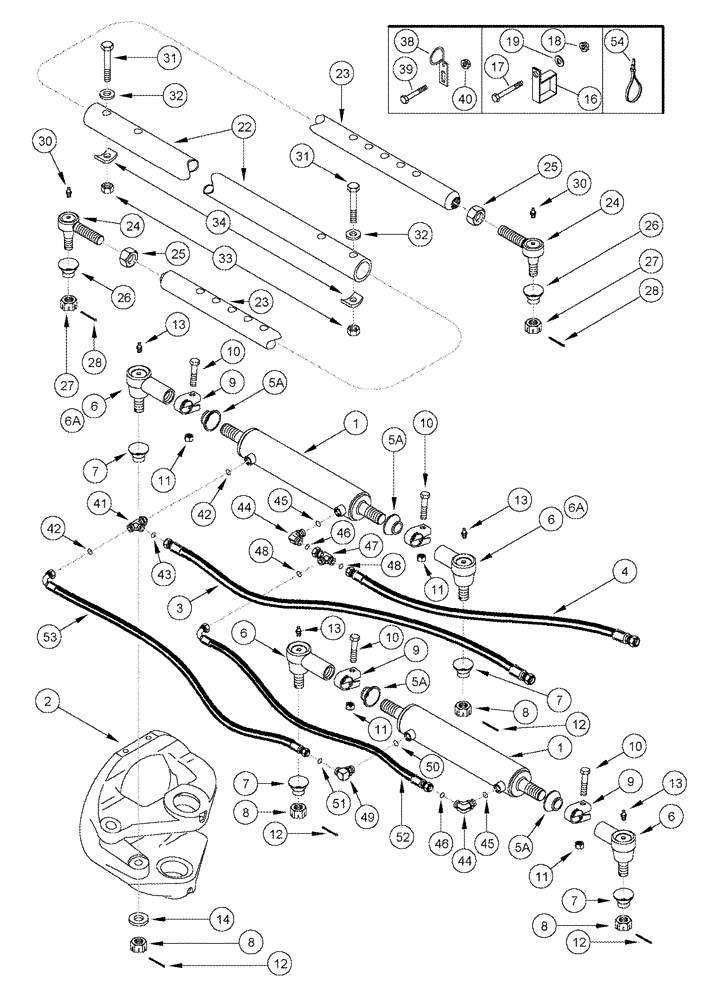

Запчасти Case IH 2388 (05-21) - STEERING CYLINDER AND TIE ROD - POWER GUIDE AXLE - DUAL STEERING CYLINDER (11) - TRACKS/STEERING

1

127913C93

STEERING CYLINDER

57 ID x 229 mm strk, See Figure 05-32

2шт.

2

REF

INSTRUCTION

Carrier, See Figure 05-24

2шт.

3

128091A2

FLEXIBLE HOSE

2160 mm (85")

1шт.

4

128084A2

FLEXIBLE HOSE

1960 mm (77-1/8")

1шт.

5

229298A1

BOOT

2шт.

5a

A41424

SEAL

1шт.

6

186140C91

BALL JOINT

Includes 7 - 11, Serial Range: -JJC0272999

4шт.

6a

437222A1

BALL JOINT

Includes 7 - 11, Start Serial: JJC0273000

4шт.

7

110373R1

DUST CAP

1шт.

8

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

9

446308C91

CLAMP

Includes 10, 11

1шт.

10

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

1шт.

11

231-4117

LOCK NUT,7/16"-14, GB

1шт.

12

432-816

COTTER PIN,1/8" x 1"

Used with Ref 6

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

Used with Ref 6A

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Used with Ref 6

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Used with Ref 6A

2шт.

14

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

16

406800A1

CLAMP

2шт.

17

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

18

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

2шт.

19

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

2шт.

22

1970102C1

TUBE

Tie Rod, Outer

1шт.

23

1970103C1

TUBE,1.062" ID, 1.625" OD, 33" Length

Tie Rod, Inner

2шт.

24

1968998C1

BALL JOINT

2шт.

25

1970391C1

JAM NUT

1-1/8" NF

2шт.

26

110373R1

DUST CAP

2шт.

27

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

28

432-816

COTTER PIN,1/8" x 1"

4шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

31

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

4шт.

32

1970104C1

SPACER

4шт.

33

232-4118

NUT,1/2"-13, GC

4шт.

34

1970101C1

CLAMP

4шт.

38

1970383C1

GUIDE

Hose

4шт.

39

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

39

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

40

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

4шт.

41

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Incl 42, 43

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

44

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 45, 46

2шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

46

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

47

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Includes 48

1шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

49

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes 45, 51

1шт.

50

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

51

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

52

398769A1

FLEXIBLE HOSE

1670 mm (65-3/4")

1шт.

53

398768A1

FLEXIBLE HOSE

1740 mm (68-1/2")

1шт.

54

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15"

2шт.
