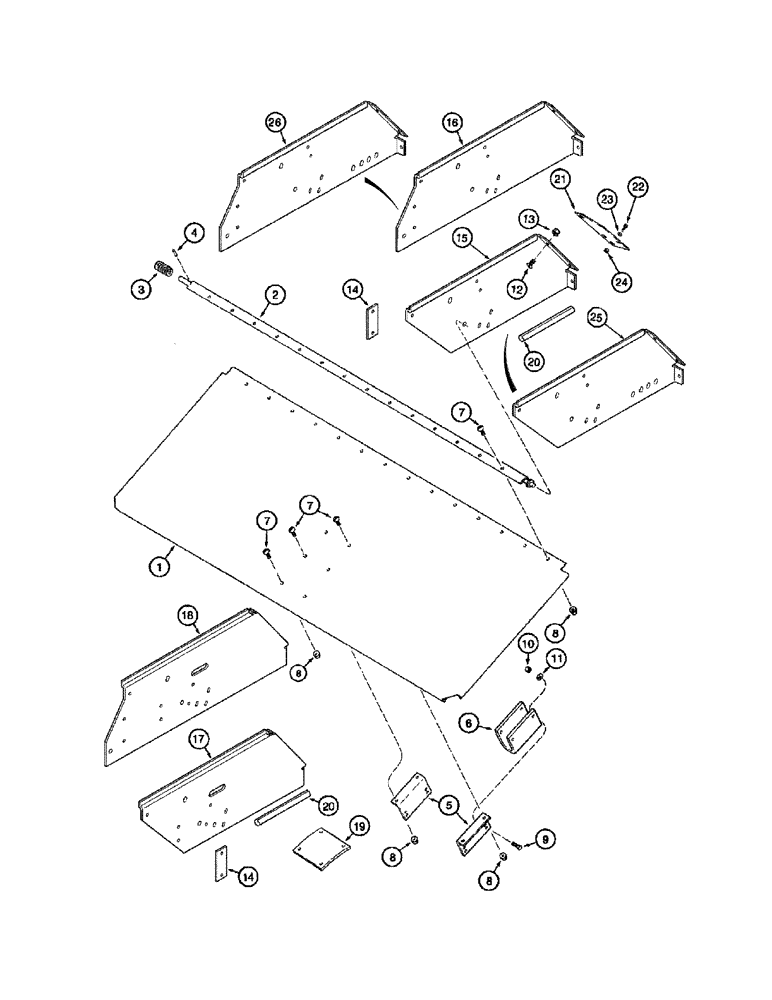

Запчасти Case IH 2388 (05-17) - AXLE, STEERING - SHIELD ASN JJC0268800 (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
1
1325597C2
SHIELD
Steering Axle
1шт.
With Straw Spreader
1шт.
1a
122152A2
DOOR
Steering Axle, Not Illustrated, See Figure 09D-09
1шт.
With Straw and Chaff Spreader
1шт.
2
188176C1
SUPPORT
1шт.
3
203942C1
SPRING
1шт.
4
38-1814
LOCK PIN,1/8" x 7/8", Slotted
1шт.
5
183093C1
BRACKET
2шт.
6
183094C1
CUSHION
1шт.
7
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
1шт.
8
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
9
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
10
232-4115
LOCK NUT,5/16"-18, GC
4шт.
11
495-11034
WASHER,5/16", SAE
4шт.
12
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
4шт.
13
231-5146
FLANGE NUT,3/8"-16
4шт.
13
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
14
1325376C1
PLATE
Hood Extension, Serial Range: JJC0270499-JJC0268800
2шт.
, Start Serial: JJC0273000
1шт.
15
1322479C5
PLATE
Hood Extension, RH, Serial Range: -JJC0270499
1шт.
With Straw Spreader
1шт.
16
390559A2
EXTENSION
Hood Extension, RH, Serial Range: JJC0270499-JJC0268800
1шт.
With Straw and Chaff Spreader
1шт.
17
1322478C6
PLATE
Hood Extension, LH
1шт.
With Straw Spreader
1шт.
18
390560A3
EXTENSION
Hood Extension, LH, Serial Range: JJC0270499-JJC0268800
1шт.
With Straw and Chaff Spreader
1шт.
18
428289A1
PLATE
Hood Extension, LH, Start Serial: JJC0270500
1шт.
With Straw and Chaff Spreader
1шт.
19
1345126C1
CUSHION
1шт.
20
1968976C1
SEALING STRIP
2шт.
21
316715A1
SEAL
Rubber, Hood Extension
2шт.
Used with 1322479C5, 390559A2, 1322478C6, 390560A3
1шт.
22
409-7612
BOLT,3/8"-16 x 1.09" OAL
2шт.
23
495-21044
WASHER,3/8"
2шт.
24
231-4146
NUT,3/8"-16, GB
2шт.
25
428291A1
PLATE
Hood Extension, RH, Start Serial: JJC0270500
1шт.
With Straw Spreader
1шт.
26
428288A1
PLATE
Hood Extension, RH, Start Serial: JJC0270500
1шт.
With Straw Spreader
1шт.
Выбрано товаров: 41
