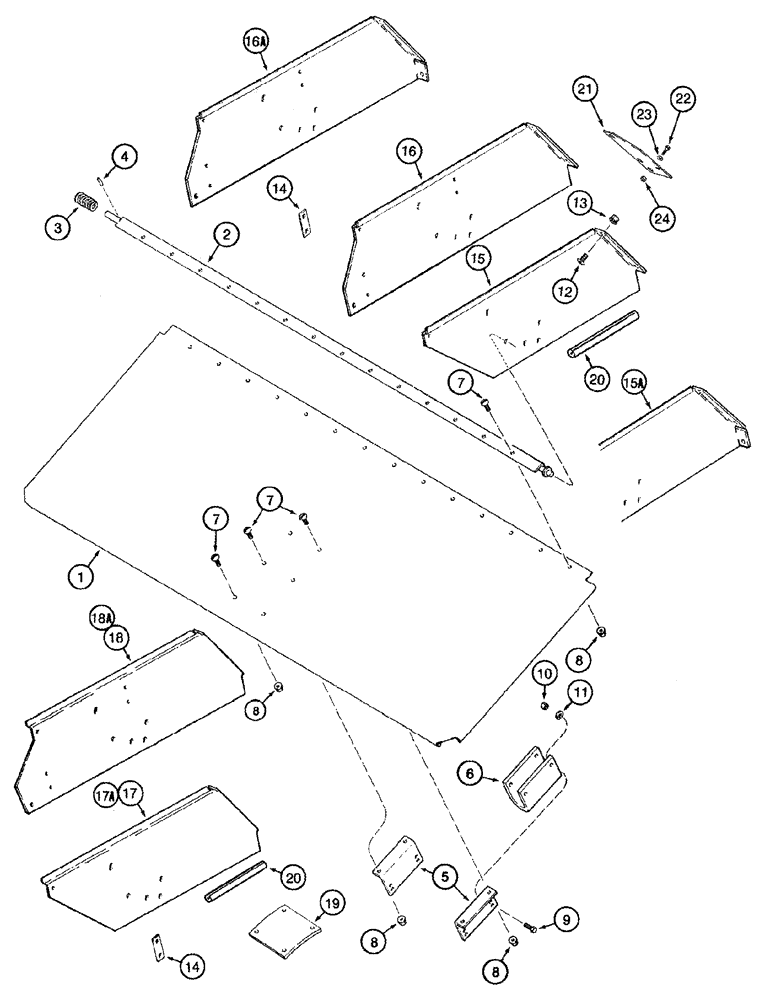

Запчасти Case IH 2388 (05-16) - AXLE, STEERING - SHIELD BSN JJC0268799 (11) - TRACKS/STEERING

1

1325597C2

SHIELD

Steering Axle

1шт.

With Straw Spreader

1шт.

1a

122152A2

DOOR

Steering Axle, Not Illustrated, See Figure 09D-09

1шт.

With Straw and Chaff Spreader

1шт.

2

188176C1

SUPPORT

1шт.

3

203942C1

SPRING

1шт.

4

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1шт.

5

183093C1

BRACKET

2шт.

6

183094C1

CUSHION

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

232-4115

LOCK NUT,5/16"-18, GC

4шт.

11

495-11034

WASHER,5/16", SAE

4шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

12

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

1325376C1

PLATE

Hood Extension

2шт.

15

1322479C3

PLATE

Hood Extension, RH

1шт.

With Straw Spreader

1шт.

15a

1322479C4

PLATE

Hood Extension, RH

1шт.

With Straw Spreader

1шт.

16

122538A1

PLATE

Hood Extension, RH

1шт.

With Straw and Chaff Spreader

1шт.

16a

122538A2

PLATE

Hood Extension, RH

1шт.

With Straw and Chaff Spreader

1шт.

17

1322478C3

PLATE

Hood Extension, LH

1шт.

With Straw Spreader

1шт.

17a

1322478C4

PLATE

Hood Extension, LH

1шт.

With Straw Spreader

1шт.

18

122537A1

PLATE

Hood Extension, LH

1шт.

With Straw and Chaff Spreader

1шт.

18a

122537A2

PLATE

Hood Extension, LH

1шт.

With Straw and Chaff Spreader

1шт.

19

1345126C1

CUSHION

1шт.

20

1968976C1

SEALING STRIP

2шт.

21

316715A1

SEAL

Rubber, Hood Extension

2шт.

Used with 1322479C4, 122538A2, 1322478C4, 122537A2

1шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

23

495-21044

WASHER,3/8"

2шт.

24

231-4146

NUT,3/8"-16, GB

2шт.
