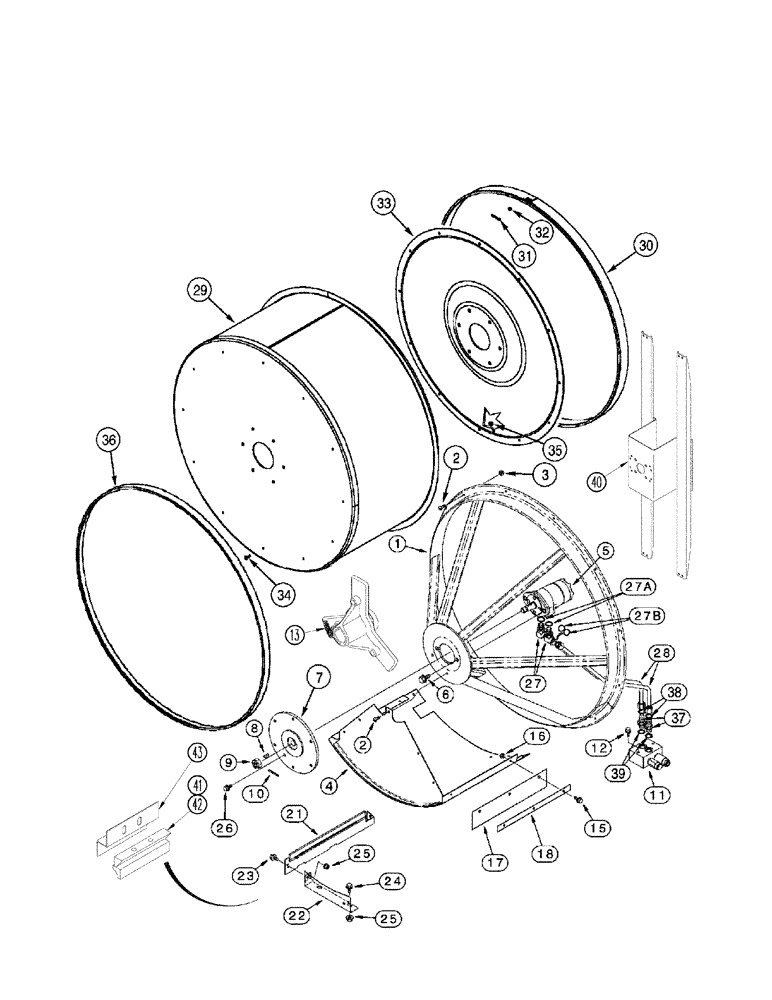

Запчасти Case IH 2388 (02-09) - ROTARY AIR SCREEN - BTW JJC0266001 & JJC0273000 (01) - ENGINE

1

257848A2

SUPPORT

1шт.

2

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

18шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

4

233256A3

BAFFLE

1шт.

5

258622A1

MOTOR, HYDRAULIC,97CC

See Figure 08-25

1шт.

6

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

7

194177A3

HUB

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

9

425-1212

SLOTTED NUT,3/4"-10, G5

1шт.

10

38-31016

PIN,5/32" x 1", Coiled

1шт.

11

327580A1

BY-PASS VALVE

See Figure 08-25

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

13

412506A1

HUB

, Start Serial: JJC0270500

1шт.

15

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

6шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

17

233259A1

SEAL

2шт.

18

233260A1

SUPPORT

2шт.

21

237046A3

CIRCULAR BRUSH

, Serial Range: -JJC0270499

1шт.

22

229463A1

SUPPORT

, Serial Range: -JJC0270499

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

24

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

26

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

27

201-377

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 27A, 27B, See Figure 08-25

2шт.

27a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

293604A1

HYD TUBE,0.5" OD, 625.4, 82.7 mm Length

See Figure 08-25, Serial Range: -JJC0270499

2шт.

28

391541A1

FLEXIBLE HOSE

See Figure 08-25, Start Serial: JJC0270500

2шт.

29

345522A1

DUST SCREEN,Rotary

1шт.

30

326777A1

CIRCULAR BRUSH

Includes 31, 32

1шт.

31

470-11016

SCREW,Pan HD, #10 - 24 x 1"

1шт.

32

86625057

NUT,#10-24, GB

1шт.

33

345517A1

SUPPORT

1шт.

34

175-131

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4", Gr 8

12шт.

35

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

12шт.

36

328106A1

SEALING RING,30mm W x 2225.7mm L

1шт.

37

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 38, 39

2шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

40

86998791

BRACKET

Support, Rotary Screen, Start Serial: JJC0270500

1шт.

41

406606A1

CIRCULAR BRUSH

Rear, Start Serial: JJC0270500

1шт.

42

87414124

BRUSH, COMMUTATOR

BRUSH Lower, Start Serial: JJC0270500

1шт.

43

432337A1

BRACKET

Rotary Air Screen, Start Serial: JJC0270500

1шт.

360870A1

KIT

Includes 30, 33 - 35, 360869A1, Also see Figure 02-06, Includes Ref. 38, 39

1шт.
