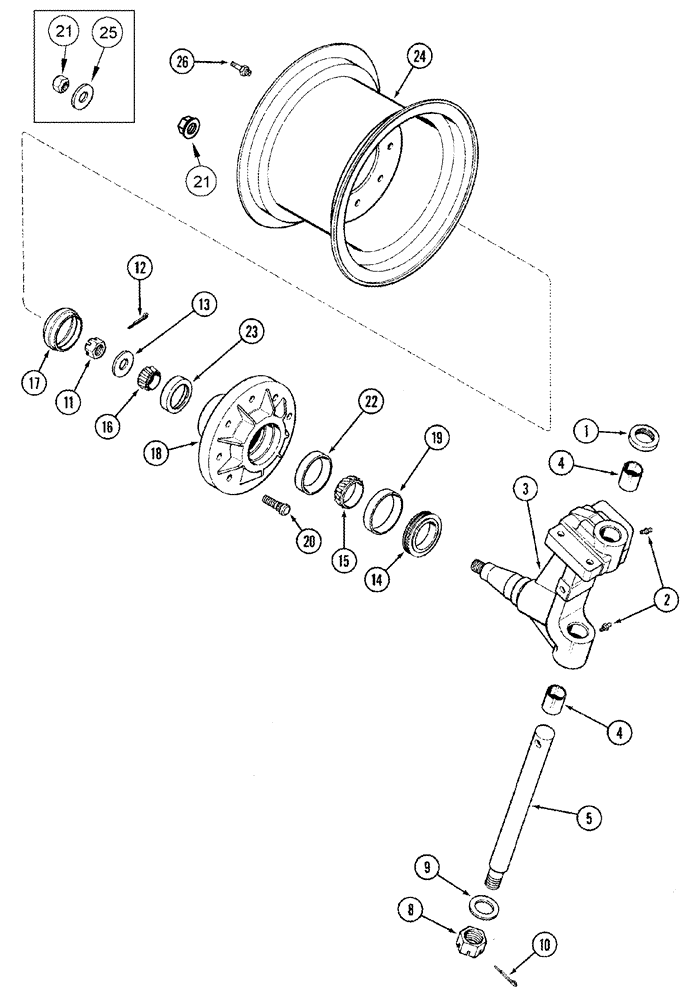

Запчасти Case IH 2388 (05-15) - AXLE, ADJUSTABLE - STEERING KNUCKLE, HUB AND WHEELS (11) - TRACKS/STEERING

1

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

185439C91

STEERING KNUCKLE

LH, Includes 4, Serial Range: -JJC0270499

1шт.

Australia, 92 to 120 Inch Axle

1шт.

3

417904A1

STEERING KNUCKLE

LH, HD, Includes 4, Serial Range: JJC0270500-JJC0274396

1шт.

3

185439C91

STEERING KNUCKLE

LH, Includes 4, Start Serial: JJC0274450

1шт.

3

185440C91

STEERING KNUCKLE

RH, Includes 4, Serial Range: -JJC0270499

1шт.

Australia, 92 to 120 Inch Axle

1шт.

3

417903A1

STEERING KNUCKLE

RH, HD, Includes 4, Serial Range: JJC0270500-JJC0274396

1шт.

3

185440C91

STEERING KNUCKLE

RH, Includes 4, Start Serial: JJC0274450

1шт.

4

186680C1

BUSHING,50.93mm ID x 55.56mm OD x 50.8mm L

2шт.

5

186052C1

PIN,50.8mm OD x 508mm L

2шт.

8

25-1224

SLOTTED NUT,1 1/2"-6, G5

2шт.

9

95-81041

WASHER,38.89mm ID x 76.2mm OD x 3.4mm Thk

2шт.

10

432-1648

COTTER PIN,1/4" x 3"

2шт.

11

425-1316

NUT,1"-14, G5

2шт.

12

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

13

435688A1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32" x 2-1/4" x 1/4"

2шт.

14

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

, Serial Range: -JJC0270499

2шт.

14

430139A1

SEAL,72.87mm ID x 97.43mm OD x 7.24mm Thk

, Serial Range: JJC0270500-JJC0272999

2шт.

15

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2-1/16" ID, 92 to 120" Axle

2шт.

15

384546A1

ROLLER BEARING,55mm ID x 29mm W

2-5/32" ID, 120 to 144" Axle

2шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1-5/8" ID

2шт.

17

560950R1

HUB CAP

2шт.

18

169293C11

HUB

Includes 19 - 23, 92 to 120" Axle, Serial Range: -JJC0268799

2шт.

18

402622A1

HUB

Includes 19 - 23, 92 to 120" Axle, Serial Range: JJC0270499-JJC0268800

2шт.

18

427351A1

HUB

Assy, Heavy Duty, Includes 19 - 23, 120 to 144" Axle, Start Serial: JJC0270500

1шт.

19

169328C1

SLEEVE

Oil, Start Serial: JJC0273000

1шт.

19

430141A2

SLEEVE

Heavy Duty, 120 to 144" Axle, Serial Range: JJC0270500-JJC0272999

1шт.

20

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

5/8" x 2-1/2", Serial Range: -JJC0270499

8шт.

20

431727A1

BOLT

5/8" x 2-9/16", Start Serial: JJC0270500

8шт.

21

554480R1

WHEEL NUT

5/8" NF, Serial Range: -JJC0268799

8шт.

21

401846A1

FLANGE NUT

5/8" NF; 8 JJC0268800 to

8шт.

22

625743C1

BEARING CUP,90mm OD x 18.5mm W

3-35/64" OD, Serial Range: -JJC0270499

1шт.

22

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

Heavy Duty, 120 to 144 Inch Axle, Serial Range: JJC0270500-JJC0272999

1шт.

, Start Serial: JJC0273000

1шт.

23

663558R1

BEARING CUP

2-57/64 OD

1шт.

24

186642C2

WHEEL

16,1 x 16, For 18.4 x 16 Inch Tire, Serial Range: -JJC0268799

2шт.

24

192201A2

WHEEL

12 x 24 in, Heavy Duty, For 14.9 x 24 inch Tire

2шт.

24

1541719C2

WHEEL

12 x 24, For 14.9 x 24 inch Tire, Replaces 1541719C1, Serial Range: -JJC0268799

2шт.

24

417734A1

WHEEL

15 x 24, For 480/70 R24 Tire

2шт.

25

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

, Serial Range: -JJC0268799

16шт.

Use with 186642C2

1шт.

26

179482C1

VALVE STEM

7/16 in dia

2шт.

26

407184R1

VALVE

Core

2шт.
