(05-14) - AXLE, ADJUSTABLE - TIE ROD, WITH DUAL STEERING CYLINDERS

Запчасти Case IH 2388 (05-14) - AXLE, ADJUSTABLE - TIE ROD, WITH DUAL STEERING CYLINDERS (11) - TRACKS/STEERING

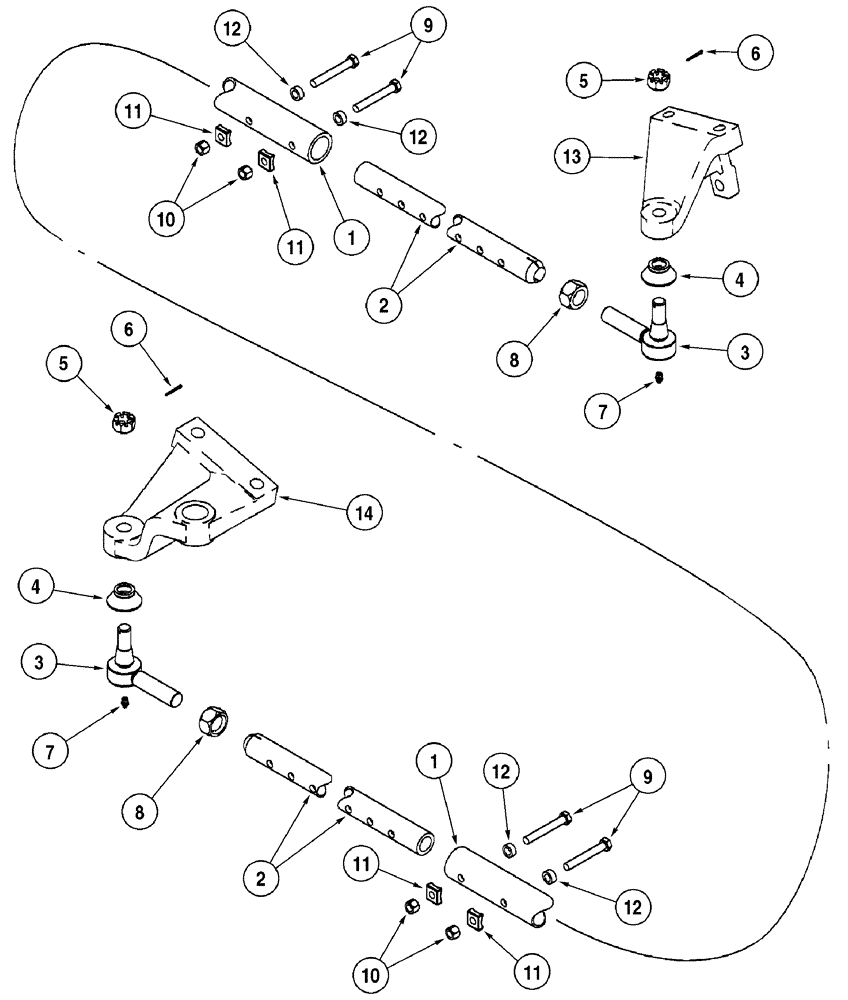

Схема запчастей Case IH 2388 - (05-14) - AXLE, ADJUSTABLE - TIE ROD, WITH DUAL STEERING CYLINDERS (11) - TRACKS/STEERING
5
10
12
9
11
11
10
6
3
4
11
6
7
5
12
7
8
2
14
1
2
9
8
1
11
12
12
3
4
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

316946A1

DRAG LINK

Includes 1 - 13

1шт.

1

1970102C1

TUBE

Outer

1шт.

2

361408A1

STEERING TIE-ROD

Inner

2шт.

3

1968998C1

BALL JOINT

2шт.

4

110373R1

DUST CAP

2шт.

5

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

6

432-816

COTTER PIN,1/8" x 1"

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

1970391C1

JAM NUT

1-1/8" NF

2шт.

9

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

4шт.

10

232-4118

NUT,1/2"-13, GC

4шт.

11

1970101C1

CLAMP

4шт.

12

1970104C1

SPACER

4шт.

13

358125A1

STEERING ARM

LH, Serial Range: -JJC0272999

1шт.

13

412305A1

STEERING ARM

LH, Start Serial: JJC0273000

1шт.

14

358126A1

ARM

RH

1шт.
